SPAN Encore Series - Troubleshooting Tips; Electrical Schematic and Problem Diagnosis

Span Medical Retractable Bed
MC9R / Series
24
Troubleshooting Tips
Fig 16
A flat screwdriver is
used to open the
control box cover.
CONTROL BOX PORTS
FOOT ACTUATOR (Green)
HI/LO FOOT ACTUATOR (Yellow, OUTSIDE)
HI/LO HEAD ACTUATOR (Yellow, INSIDE)
HEAD ACTUATOR (Red)
PENDANT
BACKUP BATTERY

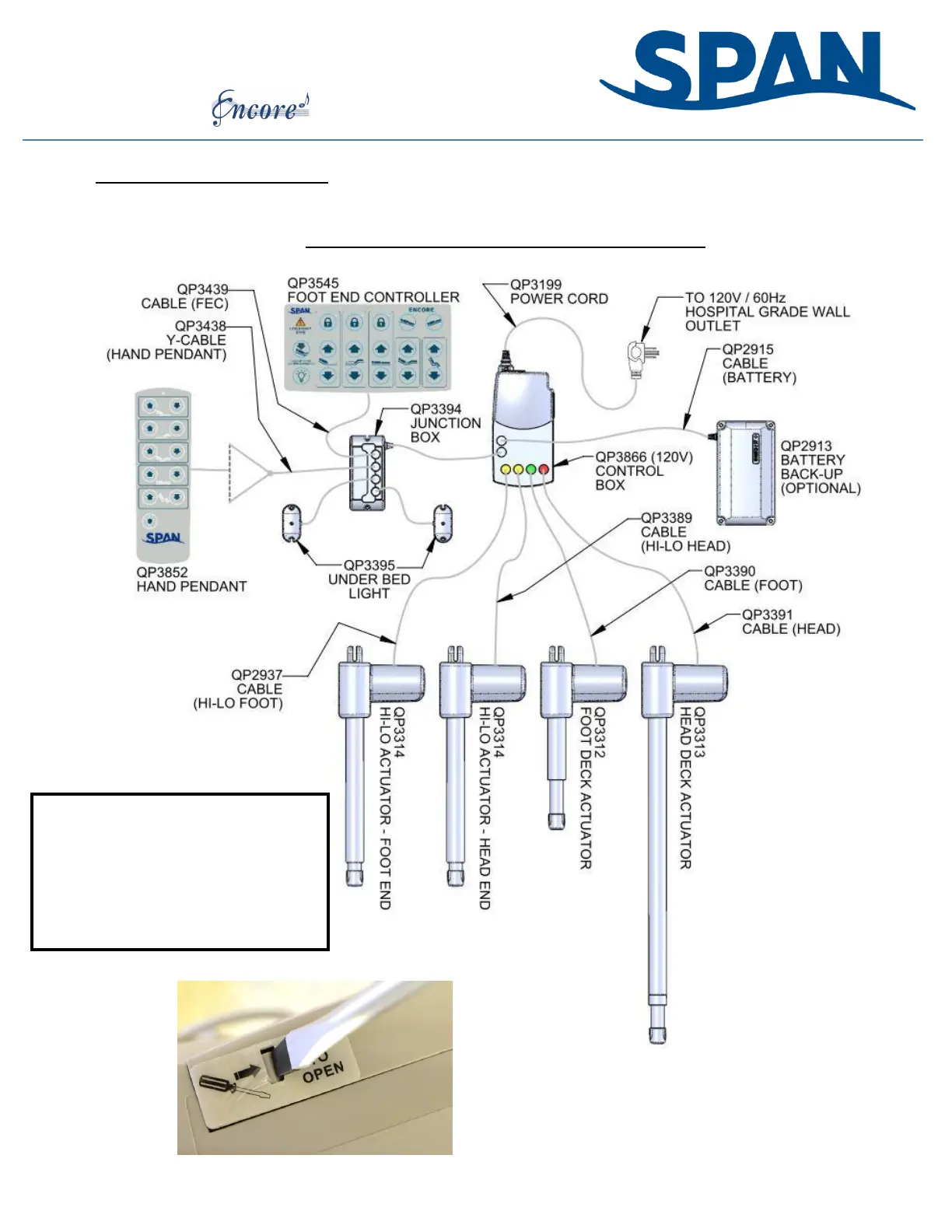

MC9R/Encore
®
Electrical Schematic
