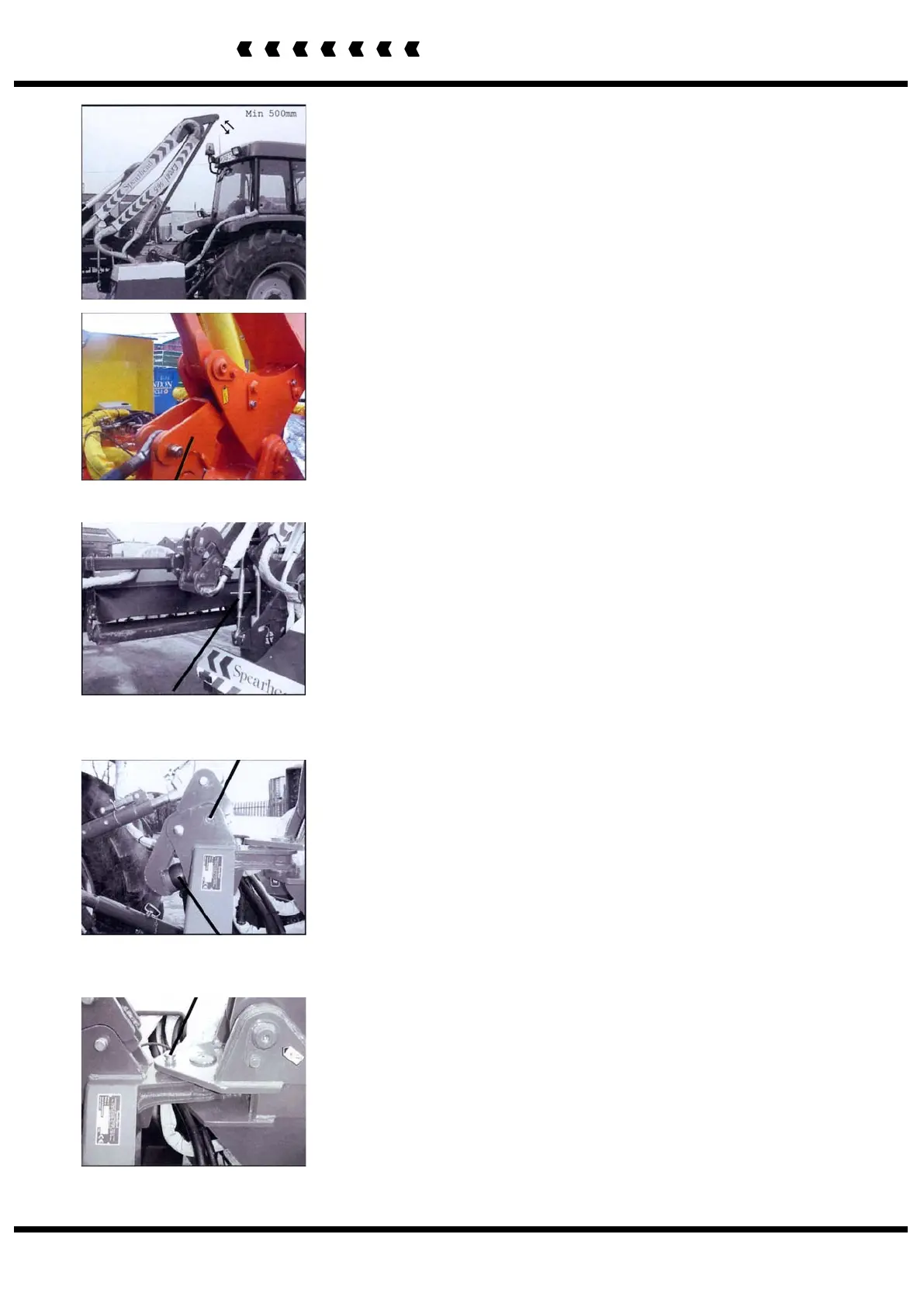

3. Fold transport stop over. Carefully position main boom over
the tractor cab roof until rubber bump stop meets the flip-over
transport bracket.
Warning: Bracket must be in correct position or main boom
may over centre and drop onto cab roof.
4. Mount adjustable transport link.
5. Ensure top bracket is able to float by removing second rear
pin.
6. Fit locking pin into slew frame.
Flip over transport bracket
Transport link
No pin
Floatin
Slew locking pin
