Specialized AETHOS - 6. Seatpost Assembly

15
6. SEATPOST ASSEMBLY
1
ITEM DESCRIPTION
A M6 BOLT
B M6 CRADLE WASHER
C M6 BARREL NUT
D M5 BOLT
E M5 CRADLE WASHER
F M5 NUT
E
B
A
D
F
C

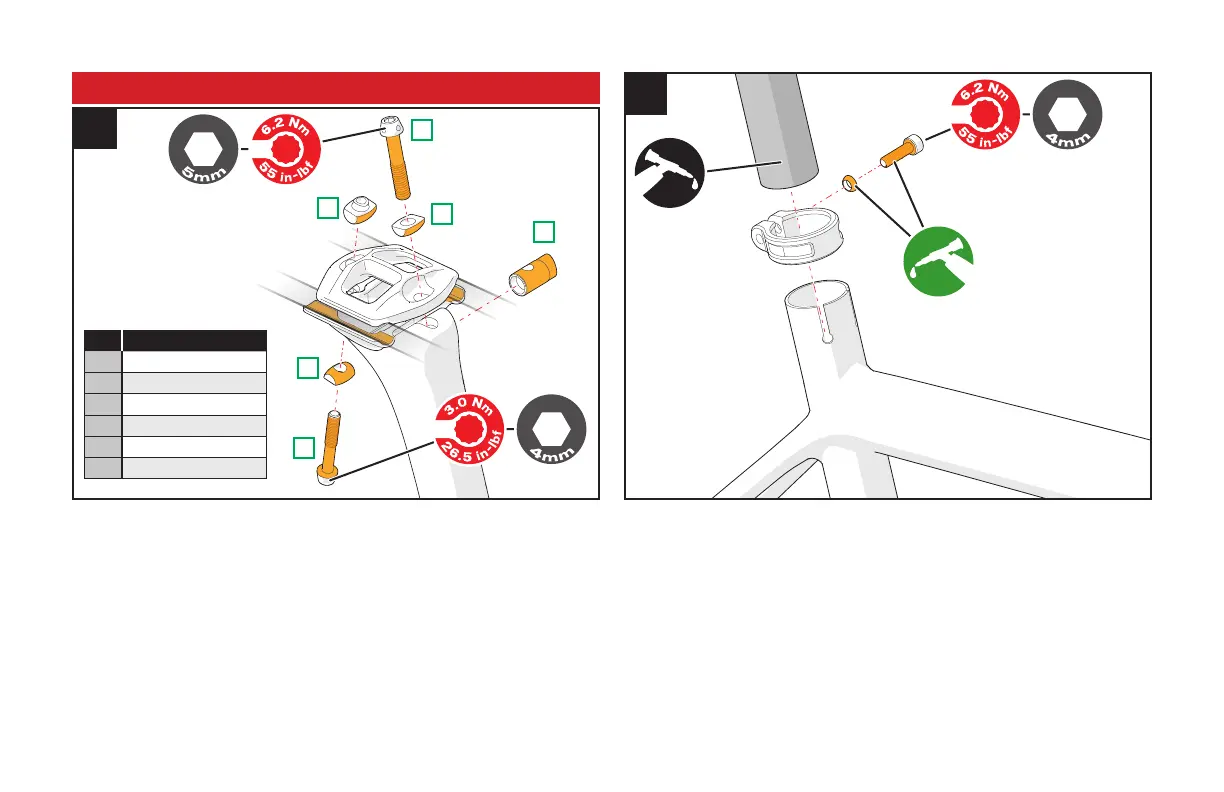

FIG. 1: Install the saddle.
• Grease then install the M6 barrel nut inside the seatpost.
• Grease and assemble the M6 bolt and M6 cradle washer, then install them in the upper cradle.
• Install the lower cradle, followed by the saddle (with greased rails) and upper cradle assembly.
• Grease and assemble the M5 bolt and M5 cradle washer, then install the bolt and spacer through the
seatpost bolt hole and through the lower cradle.
• Grease then install the M5 nut onto the M5 bolt.
• Adjust the saddle fore-aft position, then adjust the angle of the saddle by turning the M6 bolt.
• Torque the M5 bolt, then check the saddle angle. If the angle still needs to be adjusted, loosen the M5
bolt, loosen or tighten the M6 bolt accordingly, then torque the M5 bolt again. Repeat until the saddle is
at the desired angle.
2
FIG. 2: Install the seatpost in the frame.
• Make sure the seat collar is facing toward the front of the bike.
• If using Shimano Di2, install the battery in the seatpost using the grommet assembly
(S186800006), then plug the seat tube wire into the battery.
• Apply carbon assembly compound (fiber paste), then insert the seatpost into the seat tube.
