DD: MID LINK AXLE
12 OD x 61 L
FF: MID LINK SPACER
8.5 ID x 23.5 OD x 6 W
EE: MID LINK BOLT
M8 x 16 L

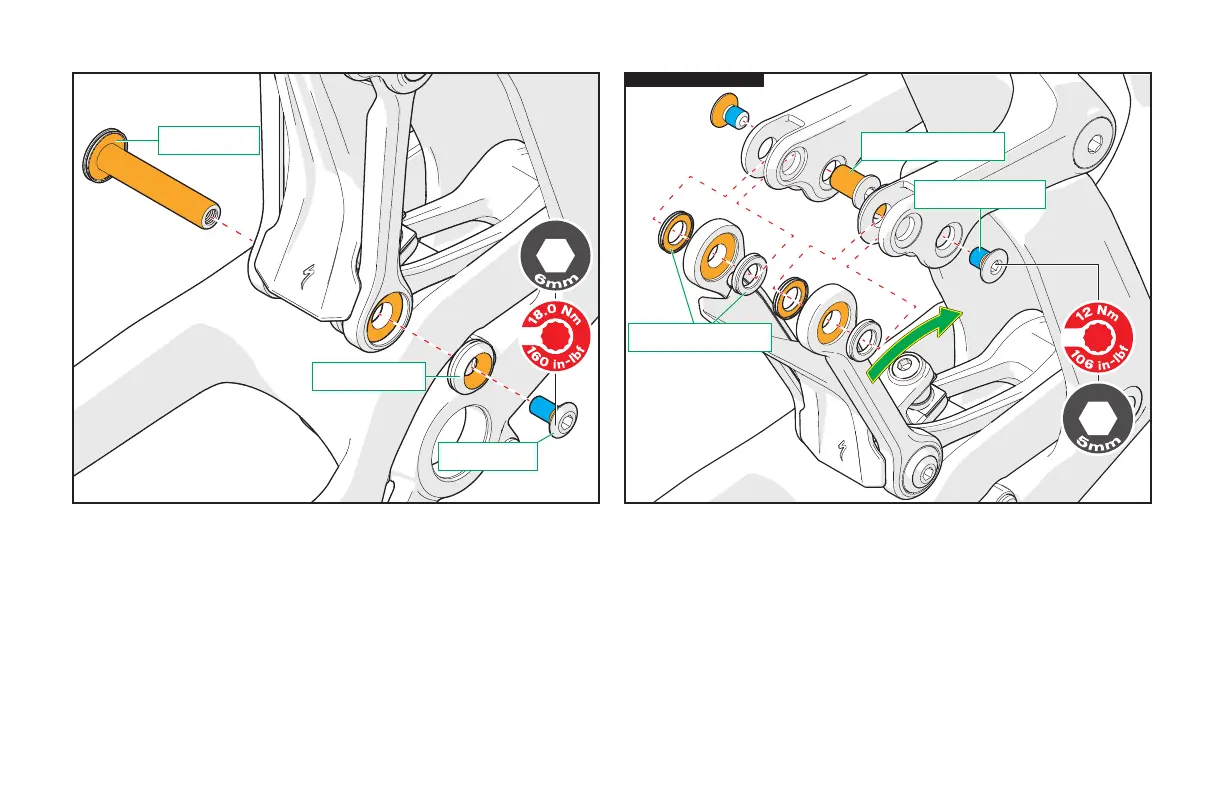

Grease, then insert the mid link axle DD into the non-drive side mid link, place the drive
side bolt EE through the drive side spacer FF, then thread it into the mid link axle.
4. MID LINK @ UPPER LINK
U: MID LINK UPPER SPACER
12.1 ID x 20 OD x 3 W
GG: UPPER LINK FEMALE AXLE
12 OD x 17.5 L
HH: UPPER LINK MALE BOLT
M9 x 14 L
Grease, then place the upper spacers (x4) U against the mid link upper bearings, then
rotate the mid link into position to align with the middle bore of the upper link.
Grease, then slide the upper link axles (x2) GG into the upper link middle bore from the
inside, then thread the upper link bolts (x2) HH into the axles.
To Next Page
