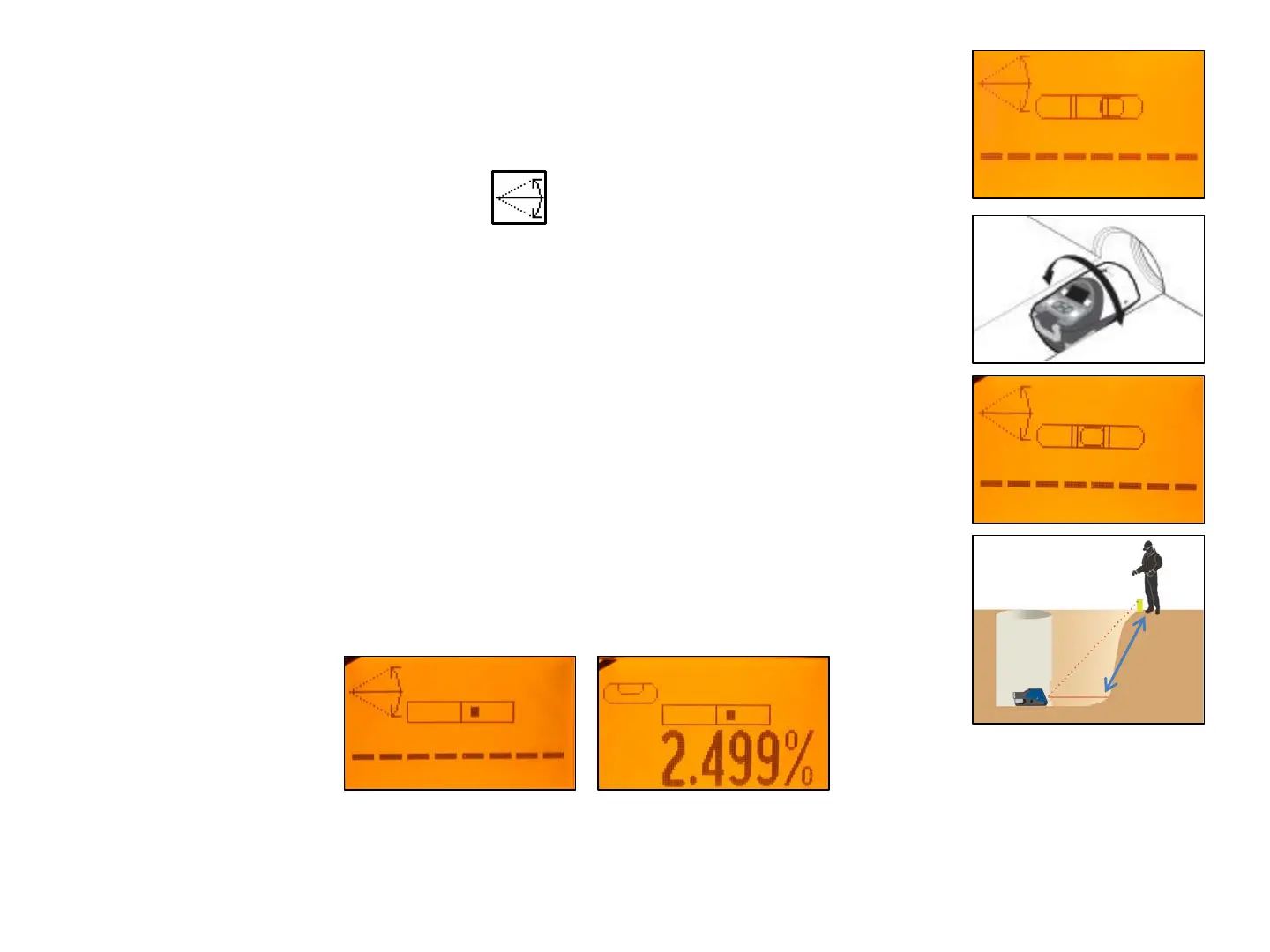

Press and release the M button at the standard display and select
Line Set/Check using the (+)/(-) and left/right buttons.
Pressing and releasing E button activates the Line Set/Check mode while
the flashing Line Set/Check symbol appears together with a bubble
vial.
Adjust the bubble vial until it is centered and the Line Set/Check symbol
stops flashing.
Pressing and releasing the E button starts the beam moving
automatically up to 45°.
Using the + or - button at the RC803 remote control or at the laser stops
the automatic upwards beam movement.
Adjust the beam using Left/Right buttons until the beam is centered at
the line stake.
After aligning the beam to the required direction position, pressing and
releasing the EL button starts the beam plumb down movement to the
previous dialed in grade value.
