Laying Pipe/Setup

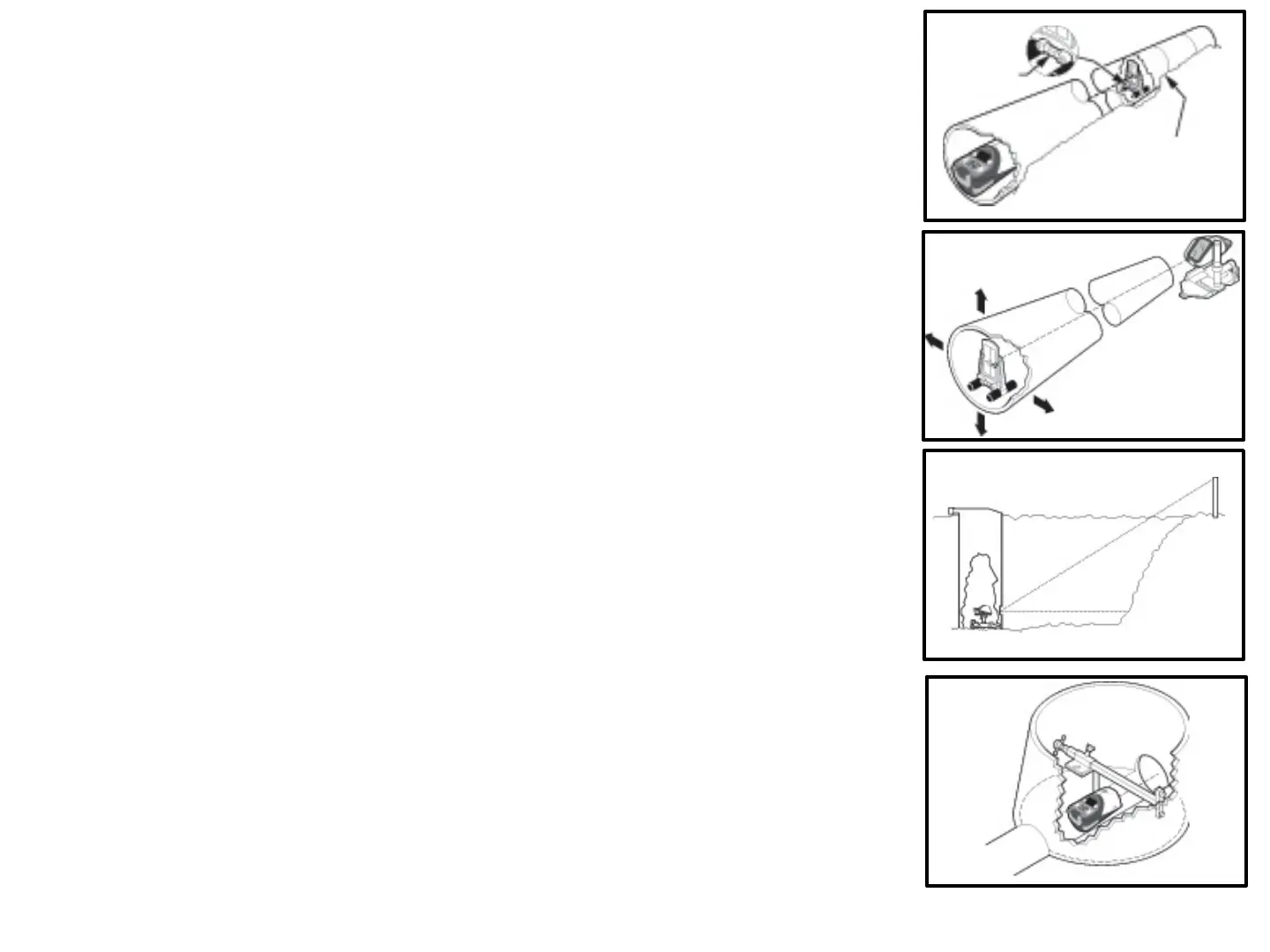

1. First Day Setups -Use the line buttons to align the laser to the
next manhole.
2. Second day setups - Select a target that can establish the
centerline or distance above the invert in your pipe too the
correct grade, elevation, and line set the laser in the last pipe
checked to be set.
3. Align the laser to the target using the line buttons on the Laser or
using the wireless remote.
4. Lay Pipe – set the target in each new section of pipe and adjust
the pipe until the laser intersects the target’s bulls eye.
Large Pipe
The Laser can be set directly on the flow line using the various
mounting plates or a 1244 T-bar for increased stability and an
unobstructed flow line.
1. Set Grade Elevation, and Line into the Laser for large pipe
applications.
