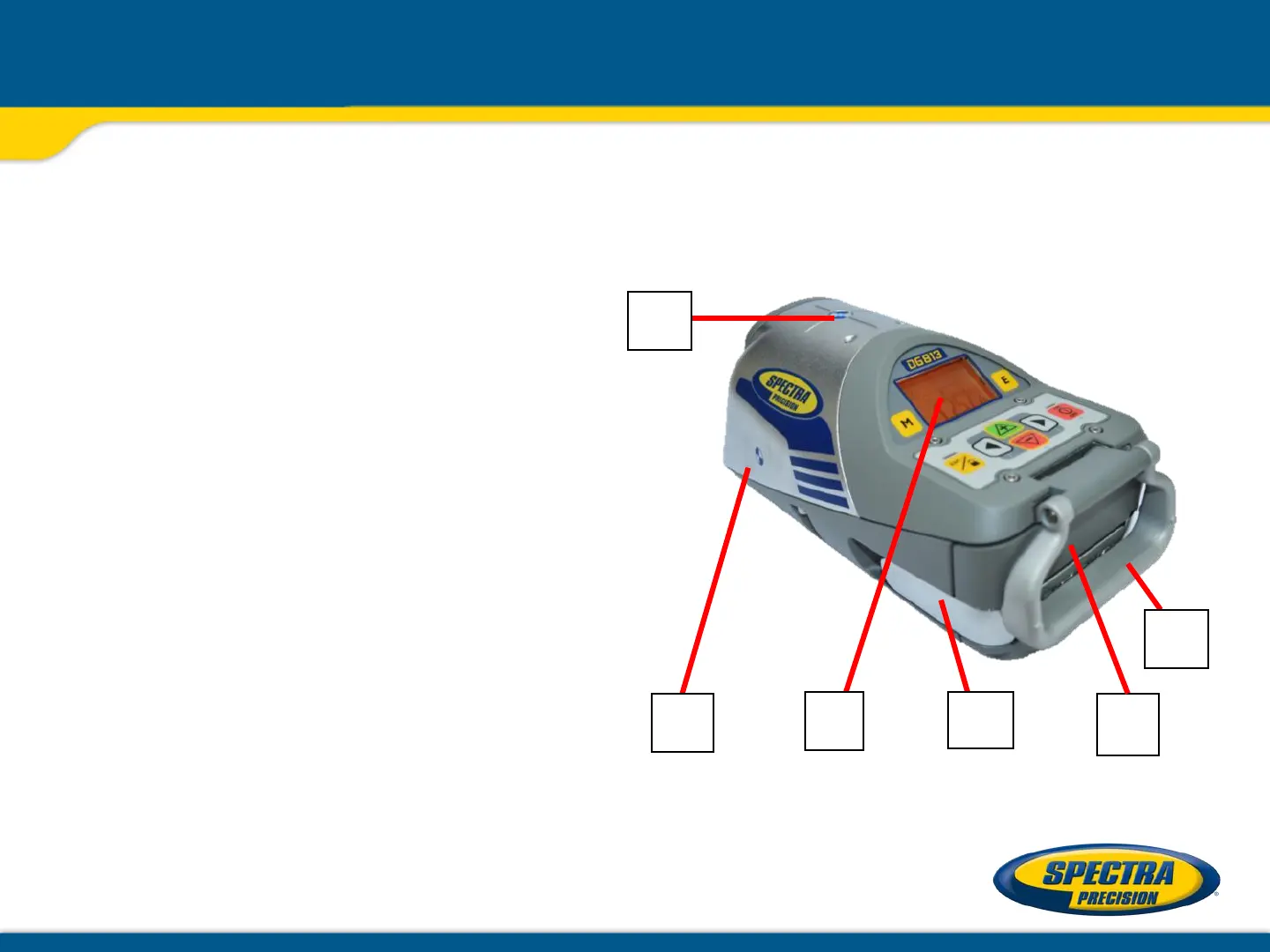

DG813/DG613 Components
1. Battery Compartment – holds the
NiMH battery pack. (D-Cell alkaline
batteries can be used as a backup.)
2. Battery Door Latches – locks/unlocks
and holds the battery compartment in
place.
3. LCD Graphic Display - shows the power,
grade, battery, out-of-level, beam position,
menu information and status of the laser.
4. Grade Axis Pivot Marker - identifies the
pivot point for the grade system
5. Line-Axis Pivot Marker and LED - used
to align a transit over the top of the laser;
lights for 15 minutes after turning on the
laser or pressing one of the buttons.
6. Handle - to carry the laser easily
and to attach a safety rope in manholes
with water.
