EPOCH 50 GNSS System User Guide 17
Setup, Connection, and Cabling 2
20.1 Setting up the receiver using the internal radio
1. Set up the receiver on a tripod.
2. Connect the 6" flexible antenna to the ANT port.
3. Do one of the following:
– If you are using external power, connect the Y cable to the receiver COM 2
port.
– If you are using internal power, insert a battery into the battery
compartment.
Note – When using the internal battery, battery power is limited to a maximum of 2.5
hours. Spectra Precision recommends that you use an external battery.

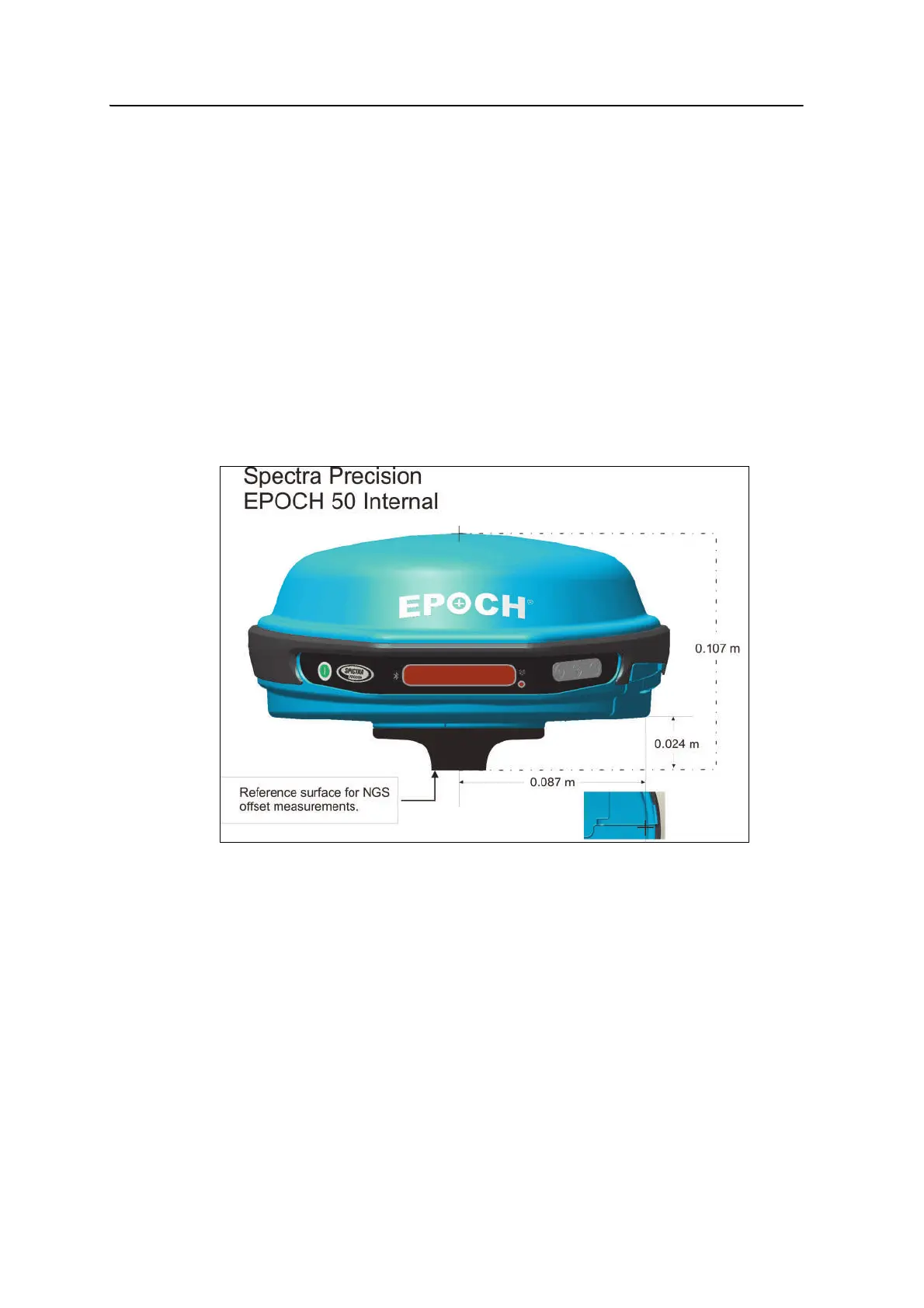

When setting up on a tripod, you must use the slant height measurement point on the
receiver to get an accurate instrument height, as shown below:
