6.1 Port 1 and 2 connectors

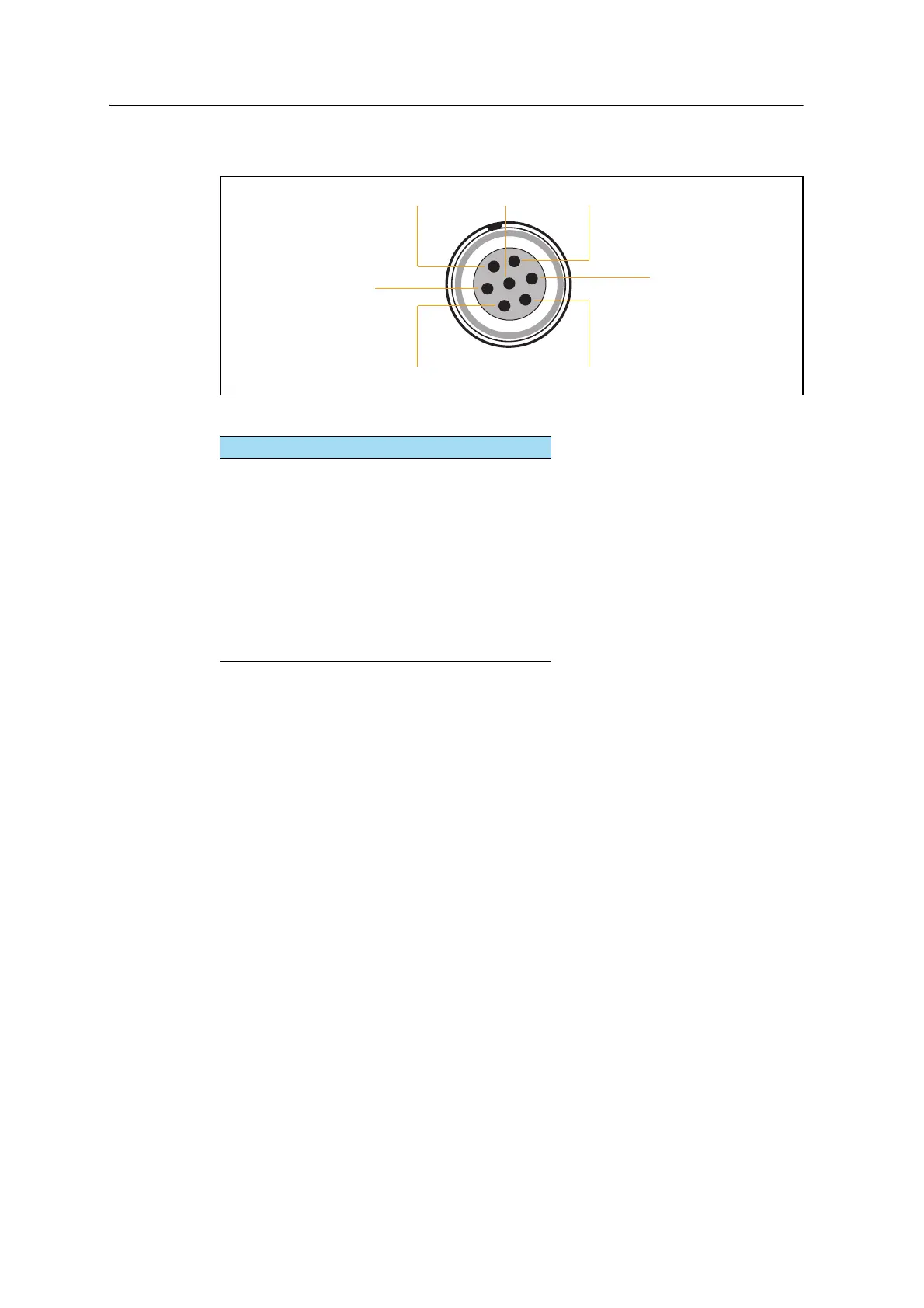

Figure 6.1 Port 1 connector pinouts
Pin Pinout function, Port 1 – 7-pin LEMO
1 Signal ground
2 Power ground
3TXD
4N/C
5N/C
6 + Power in
7TRXD
8N/A
9N/A
71
3
6
4
2
5
