©2023 Spectra Precision | All Rights Reserv ed
Grade Enter Step & go mode
Press the left or right arrow button to change the X axis grade value starting at the last
digit.
Press and hold left/right arrow buttons simultaneously to set the grade value of the X axis
to 0% and to start the quick change mode where the grade value in front of the decimal
point will be changed in 1% increments.
Press the up or down arrow button to change the Y axis grade value starting at the last
digit.
Press and hold up/down arrow buttons simultaneously to set the grade value of the Y axis
to 0% and to start the quick change mode were the grade value in front of the decimal
point will be changed in 1% increments.
Note: An asterisk at the right side indicates which grade value will be changed.
Note: The laser will self-level to the required grade position a few seconds after releasing
the arrow button.
Note: The A symbols at the LCD will flash until the laser has self-leveled to the requested
grade position.

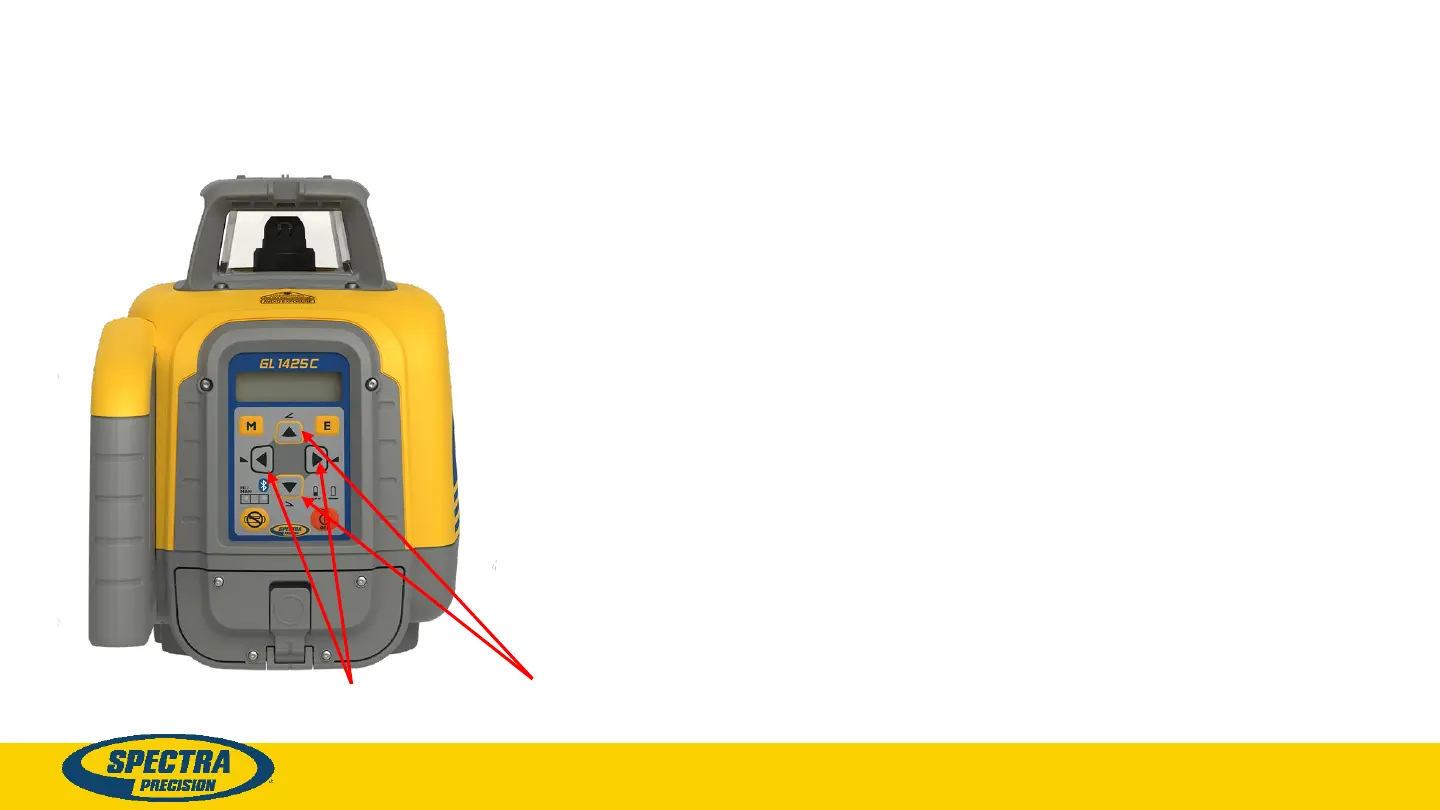

Up/down arrow buttons
Left/right arrow buttons
