Spectracom Corporation PathAlign-R
2200 / 2240 / 2241 PathAlign-R Manual
4 Record-R Data Logging Operation
4.1 Introduction
Data logging allows the user to record the current path loss reading, physical location and
data/time for later downloading to a PC, allowing for viewing, saving to disk and printing a
permanent record of the results of the link alignment. This chapter describes the operation of
the Record-R Data Logging function found in PathAlign-R model 2241.
4.2 Record-R Data Logging Information
The Record-R allows the results of antenna alignment, done with the Path Align-R, to be logged
into internal memory. The Record-R also contains an embedded GPS receiver, which provides
accurate UTC date/time and position information to be added to the above data. This logged
data is saved in non-volatile memory (it is not affected by turning the instrument off) for later
transfer (download) to a PC computer. Up to 250 separate data records can be saved in the
field.
4.3 Front Panel Record-R Controls and Indicators

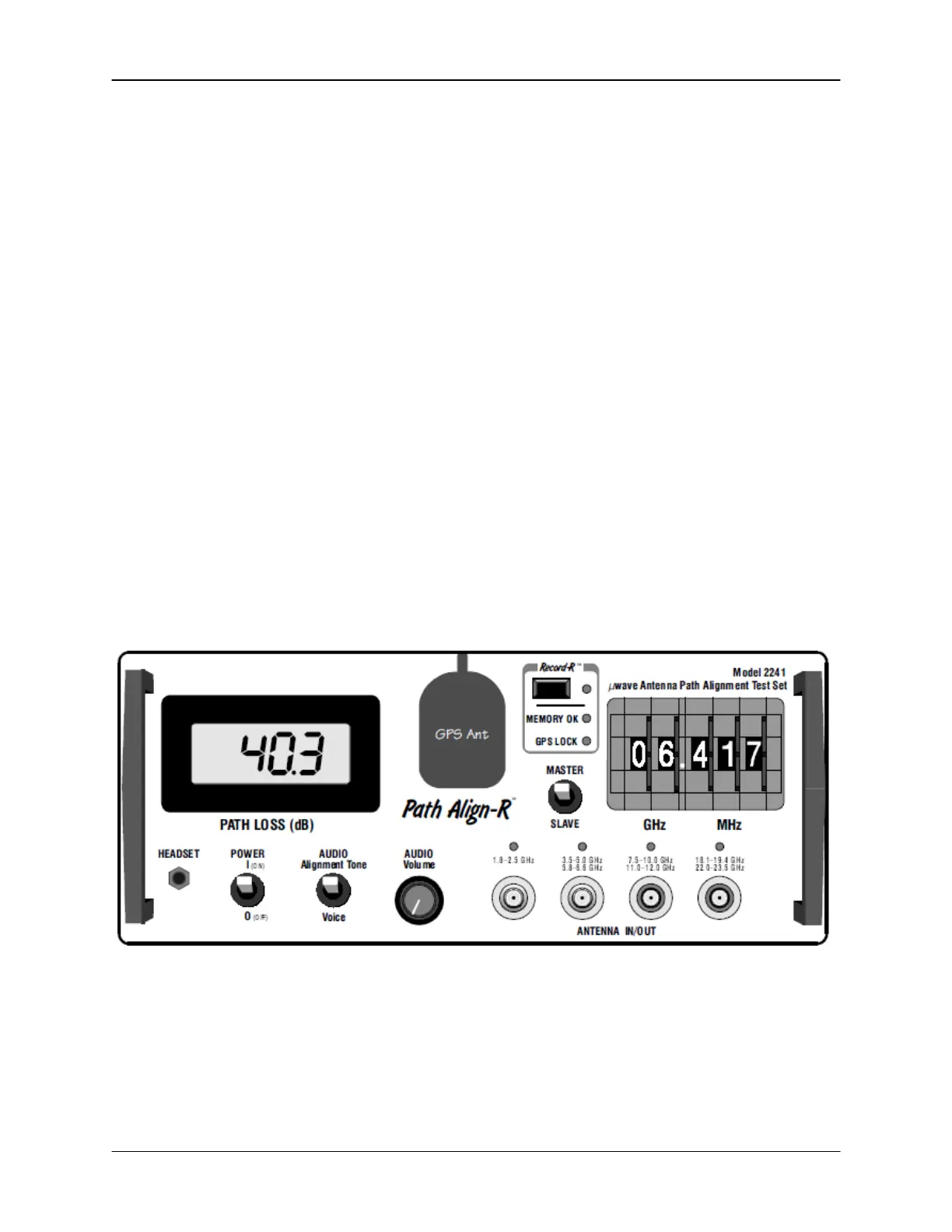

The following figure depicts a typical PathAlign-R front panel with Record-R.
Figure 4-1. Model 2241 Front Panel
4.3.1 Front Panel Mode Selections
The Data Logging mode of operation is selected by pressing the Record-R pushbutton.
Appropriate LED indicators light to indicate selection or operation of the Record-R function.
Standard PathAlign-R front panel mode selections are described in Section 3.
