Installing Single Spectralink IP-DECT Server 200s in
Large Areas
Large areas defined as: each area with a radius larger than 30 meters/100 feet; 30 meters/100-feet
cells do not overlap.

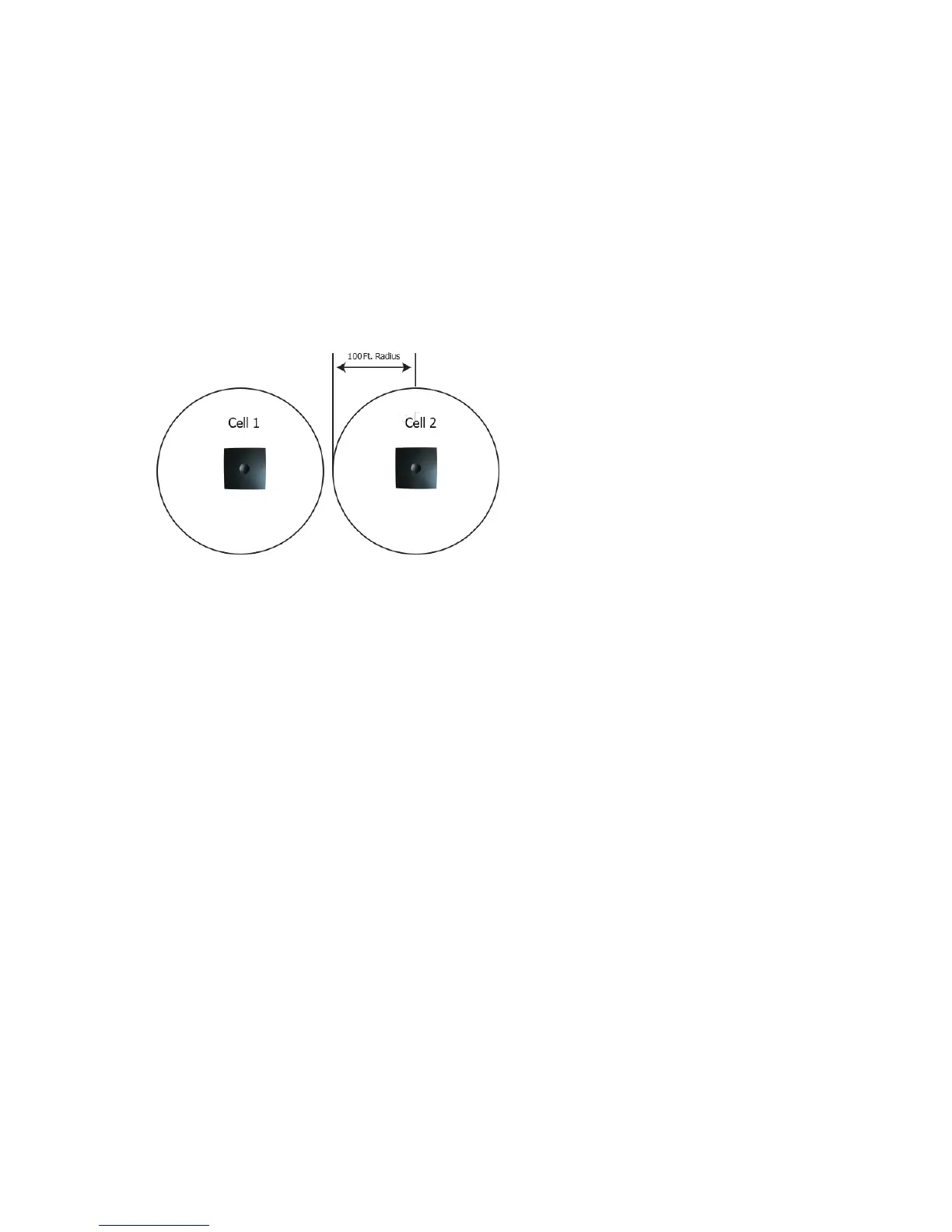

The image below shows 2 independent cells over 30 meters/100 feet apart with 1 Spectralink IP-
DECT Server 200 in each.
The image below shows 2 independent cells over 30 meters/100 feet apart with 1 Spectralink IP-
DECT Server 200 in each.
1. Follow the previous instructions and select the optimal location for each Spectralink IP-DECT
Server 200 within its own 30 meters/100-feet radius cell.
2. The cells in this configuration do not overlap, which means each Spectralink IP-DECT Server
200 can be installed and will operate independently.
