1. Remove the protective paper covering
the optical tube assembly before
moving on.

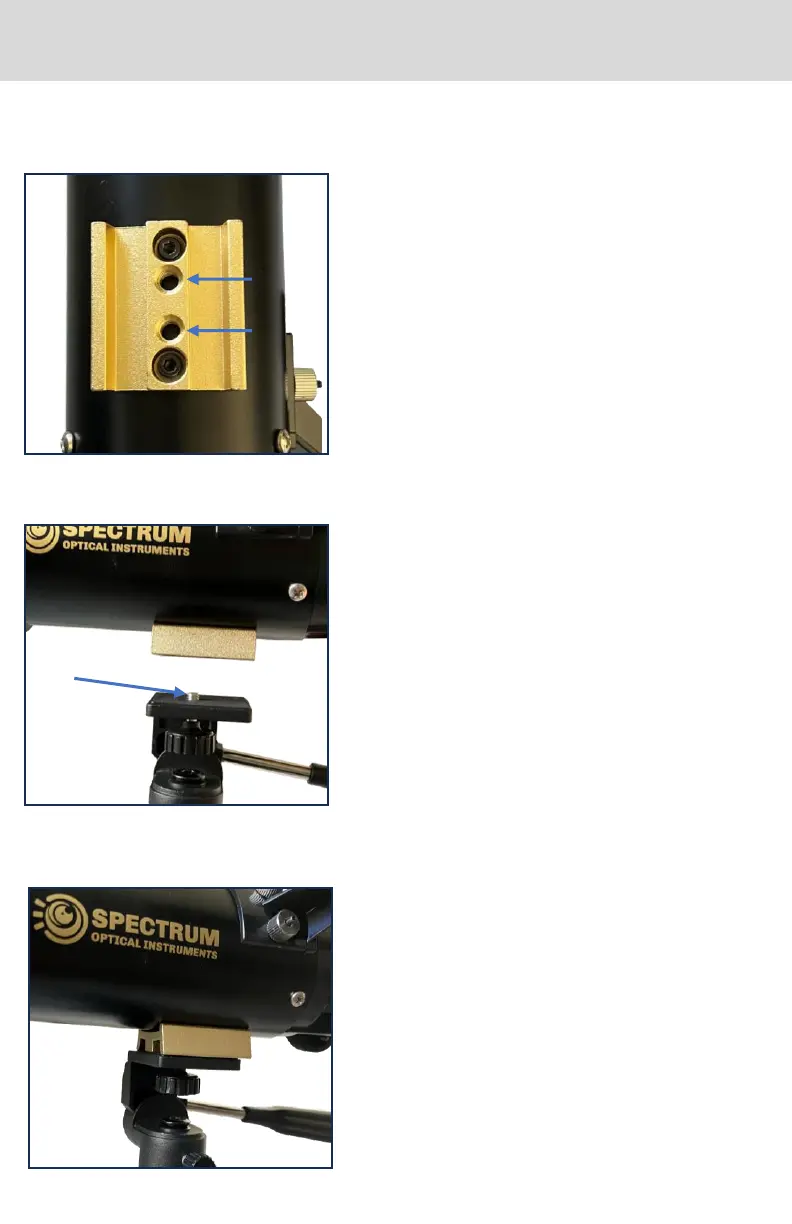

2. Please note that there are two threaded
holes on the bottom of the Vixen
dovetail. (see Fig.7)
3. Locate the Vixen Dovetail on the OTA,
usually in our signature gold color and
locate the OTA lock knob on the mount
(see Fig.8).
4. Slide the OTA onto the dovetail receiver
and tighten the OTA lock knob to a firm
feel to secure the OTA onto the saddle
plate.
5. Please make sure the tighten the OTA
lock knob to a firm feel to prevent the
OTA falling off. (See Fig. 9)
SETTING UP
FIG.7
FIG.9
FIG.8
Optical Tube Assembly
7
ASTROLITE TELESCOPE
