1. For the 70AZ Refractor, remove the two
viewfinder locking nuts and install the
viewfinder onto the OTA. Tighten the
lock nuts back to secure the viewfinder.
(See Fig.10)
2. Remove the plastic plug at the back of
the OTA and make sure the two
thumbscrews do not protrude into the
opening of the back of the OTA before
installing the accessories. Install the
diagonal into the back of the OTA and
retighten the two thumbscrews to
secure it. (See Fig.11)
3. Loosen the thumbscrew on the opening
end of the diagonal until it is not
protruding into the opening. Insert one
of the three included eyepieces into the
diagonal and secure it by retightening
the thumbscrew to a firm feel. (See
Fig.11)
4. Use different eyepieces for different
magnifications. It’s recommended to
start off with the eyepiece with the
least power (i.e. the largest focal length
eyepiece). (See Fig.11)
5. In case of requiring even higher
magnifications, install the included 3X
Barlow Lens between the eyepiece and
diagonal to double the magnification.
(See Fig.12)
SETTING UP
FIG.12

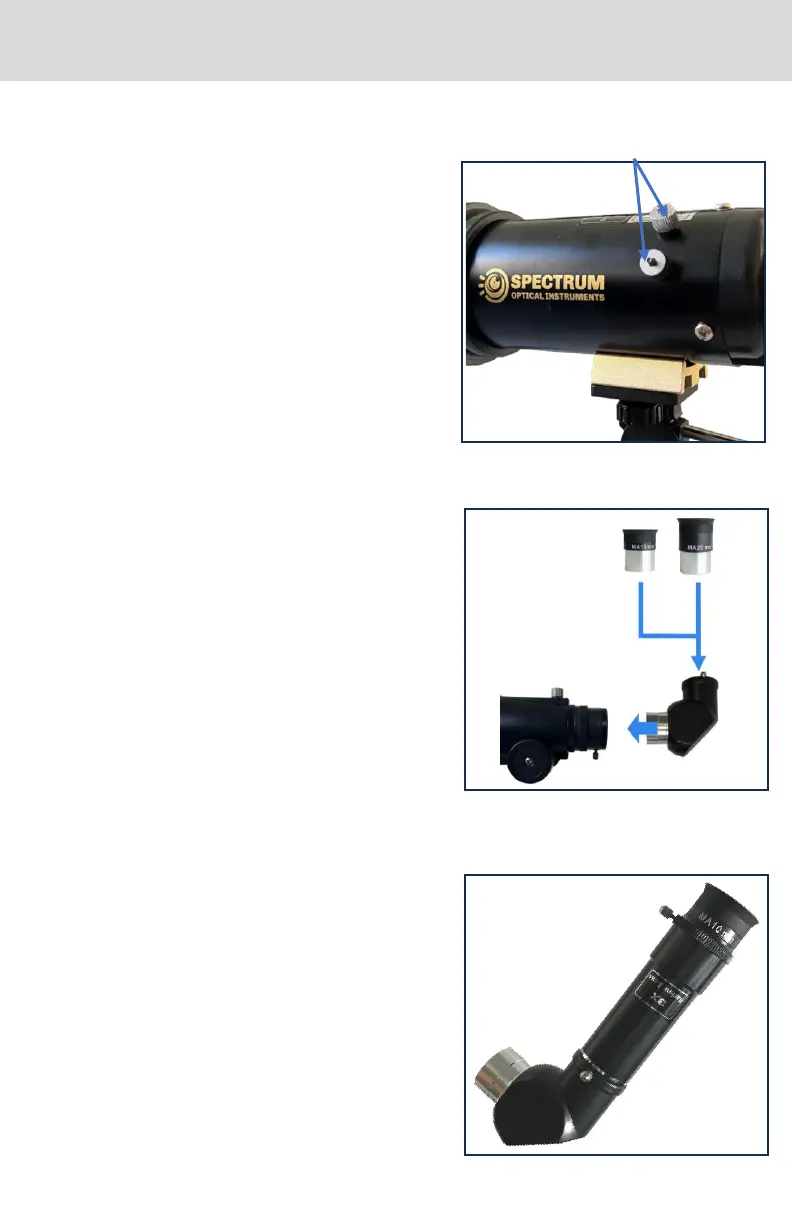

FIG.10
FIG.11
Installing Accessories
8
