SpeedTech Lights Z-3 - Page 6

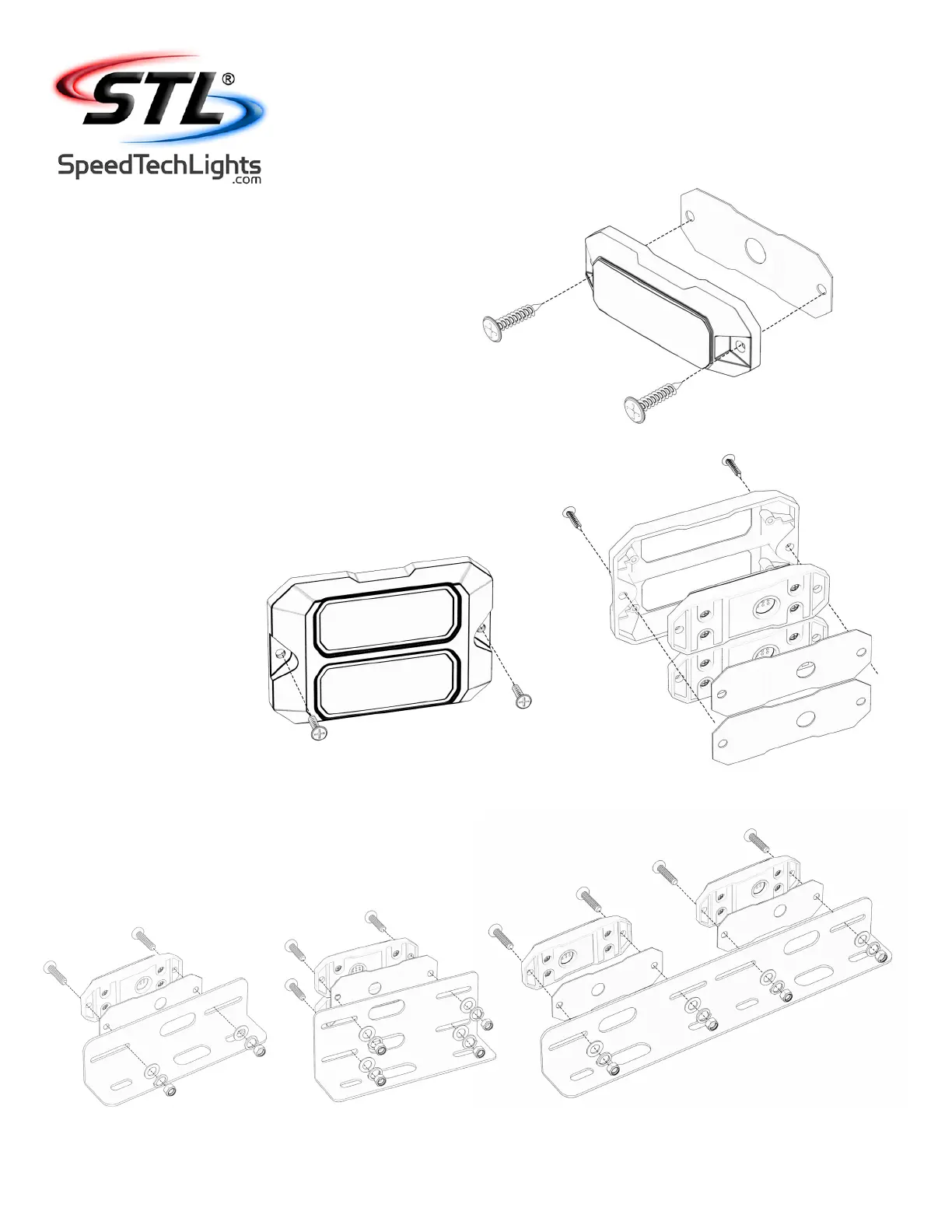

Single Static
Bracket
Dual Static
Vertical Bracket
Dual Static
Horizontal Bracket
6 SpeedTech Lights, Inc © 2019
Z
-
3
GRILLE / SURFACE MOUNT
Static Mounting Bracket (Sold Separately)
• Run cable through the Foam Pad and Bracket central holes.
• Use the hardware included with the Bracket to secure the unit to the Bracket.
Surface Mounting w/ Foam Backing Pad (Included)
• Run cable through the Foam Pad central hole.
• Use the included hardware to mount the unit to the vehicle.
Double Stack Z Flange Mounting Bracket (Sold Separately)
• Seat (2) Z units into place in the Flange.
• Run cables through the Foam Pad central holes.
• Use the hardware included with the Z unit to mount the assembly to the vehicle.
