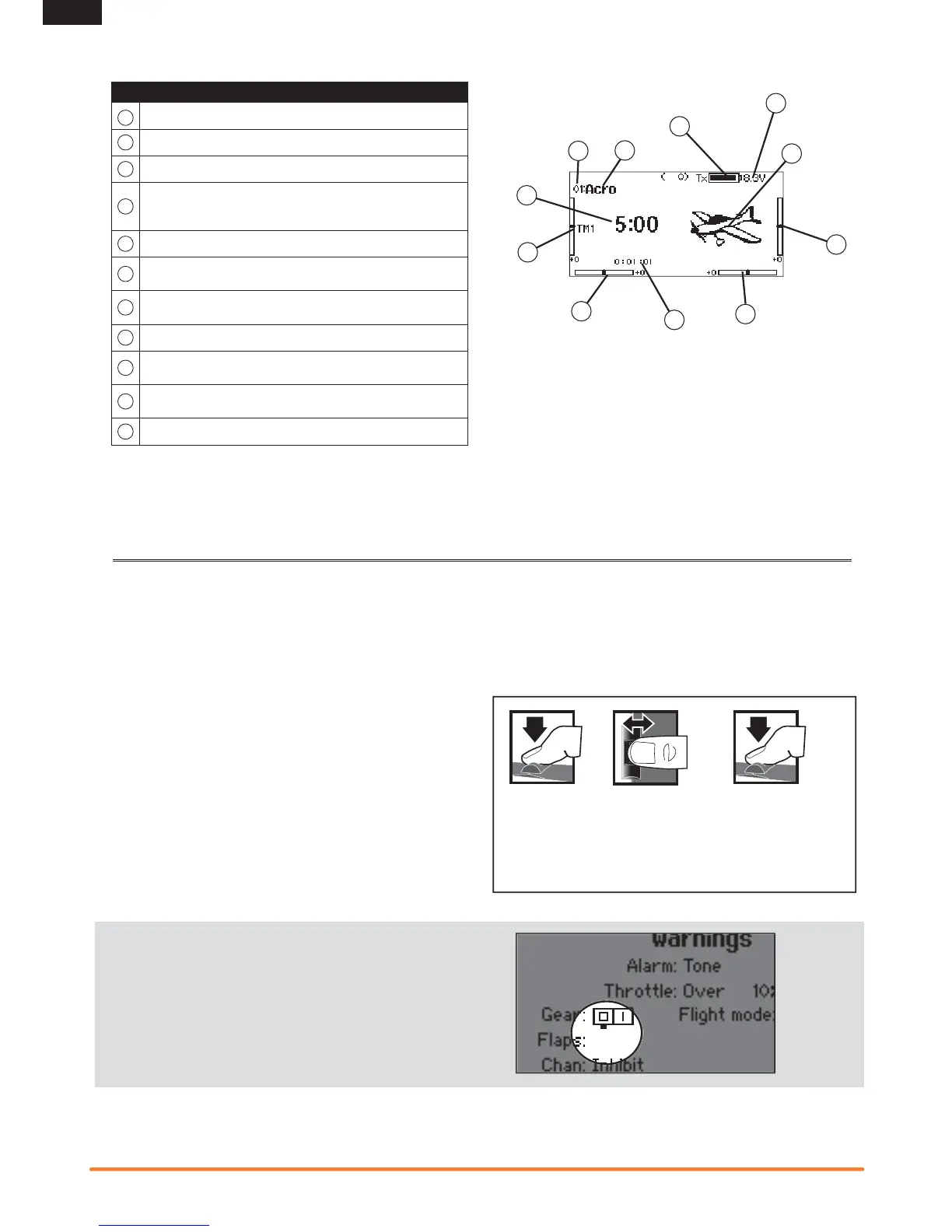

8 SPEKTRUM DX18 • TRANSMITTER INSTRUCTION MANUAL
EN
• Turn the scroll wheel to move through the screen content or
change programming values. Press the scroll wheel to make
a selection.
• Use the Back button to go to the previous screen (for
example, to go from the Mixing Screen to the Function List).
• Use the Clear button to return a selected value on a screen
to the default setting.
• Direct Model Access enables you to access the Model Select
screen without powering off the transmitter. Anytime the
transmitter power is on, press the Clear and Back buttons to
access the Model Select screen.
• Press and hold the roller while powering on the transmitter
to show the System Setup list. No radio transmission occurs
when a System Setup screen is displayed, preventing ac-
cidental damage to linkages and servos during changes to
programming.
• The Main Screen appears when you power on the transmit-
ter. Press the scroll wheel once to display the Function List.
• When you want to change a value in a screen for a particu-
lar control position, move the control to the desired position
to highlight the value you want to change, such as 0/1/2,
up/down or left/right.
NAVIGATION
Enter, Choose
or Exit
Move between
options or change
value in an option
Hold for 3
seconds and
release to move to
the Main Screen
Turn HoldPress
Tip: The tick mark below shows the current switch position.
Rolling and clicking the roller turns the selected box black, indi-
cating that the value or condition will act on that position.
Main Screen
Function
A
Model Memory
B
Model Name
C
Transmitter Battery Charge Level
D
Digital Battery Voltage
(an alarm sounds and the screen fl ashes when battery charge gets
down to 4.3V when using an NiMH battery or 6.4V for a LiPo battery.)
E
Model Type
F
Elevator Trim (Modes 2 and 4)
Throttle Trim (Modes 1 and 3)
G
Aileron Trim (Modes 1 and 2)
Rudder Trim (Modes 3 and 4)
H
Model Memory Timer
I
Rudder Trim (Modes 1 and 2)
Aileron Trim (Modes 3 and 4)
J
Throttle Trim (Mode 2 and 4)
Elevator Trim (Mode 1 and 3)
K
Timer
J
K
I
H
G
F
E
D
C
B
A
Also displays R Trim values when the Right
Trim button is pressed
Also displays L Trim values when the Left
Trim button is pressed
