10
EN

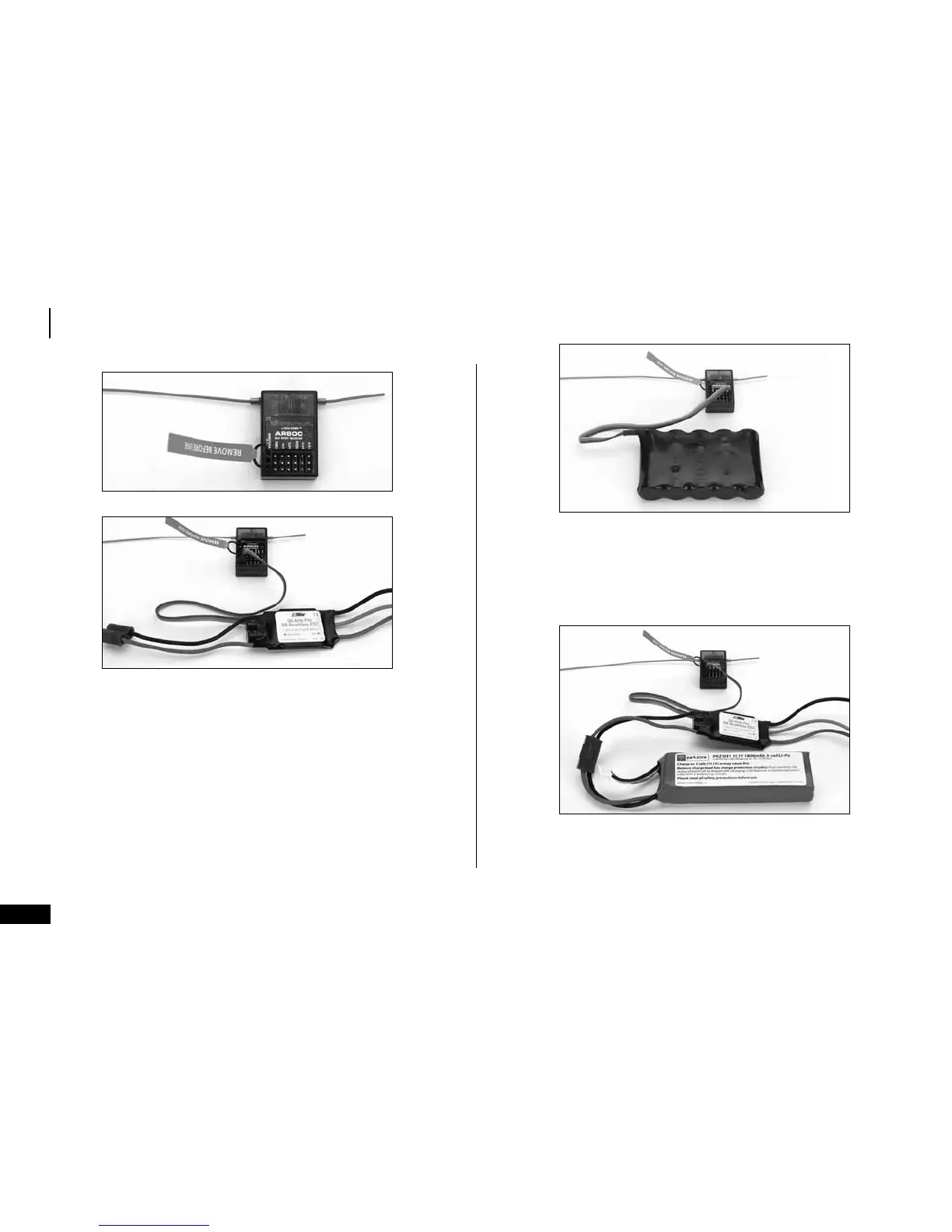

1. To bind a receiver, insert the bind plug in the BIND/DATA port.
Note: To bind an aircraft with an electronic speed controller that powers the
receiver through the throttle channel (ESC/BEC), insert the bind plug into
the BIND/DATA port in the receiver and the throttle lead into the throttle port.
Proceed to Step #2.
2. Power the receiver by plugging in a receiver battery in any port on the
receiver. The LED on the receiver will flash. The receiver is ready to be
bound to the transmitter.
Shown above using a separate receiver pack
Note: When binding using a switch harness and separate receiver pack, you
must use a three-wire switch harness such as SPM9530 (not shown). In
addition, you may need to purchase the Male/Female bind plug SPM6803.
Shown above using an ESC/BEC and a flight pack
