Spektrum DX8e User Manual

6 SPEKTRUM DX8e • TRANSMITTER INSTRUCTION MANUAL
EN

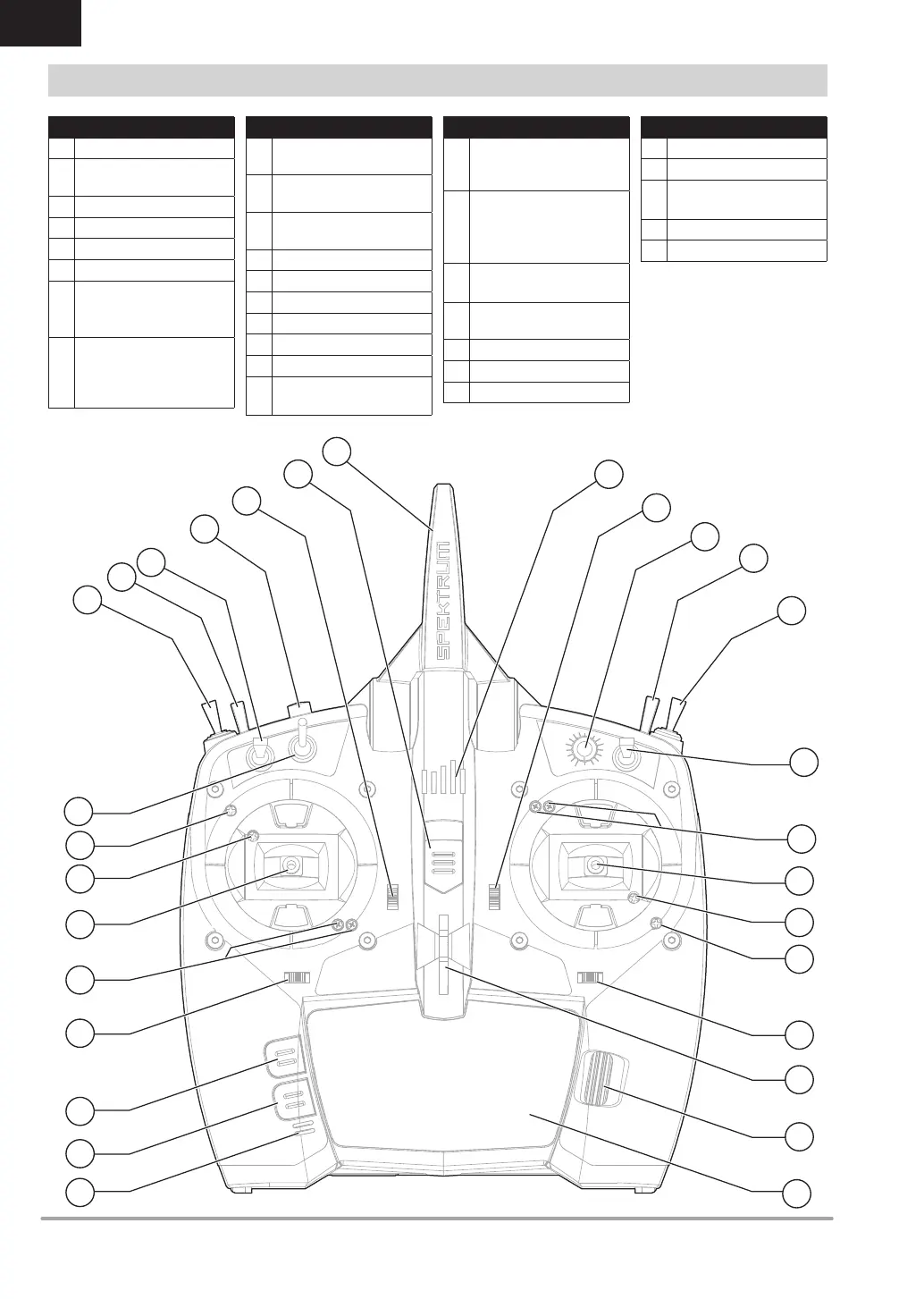

TRANSMITTER FUNCTIONS
Function
1 LED
2
Elevator Trim (Mode 2, 4)
Throttle Trim (Mode 1, 3)
3 R Knob
4 Switch H
5 Switch G
6 Switch F
7
Throttle Tension Adjustment
Throttle Ratchet Adjustment
(Mode 1, 3)
8
Throttle/Aileron Stick (Mode 1)
Elevator/Aileron Stick (Mode 2)
Throttle/Rudder Stick (Mode 3)
Elevator/Rudder Stick (Mode 4)
Function
9
Left/Right Gimbal Stick
Tension Adjustment
10
Up/Down Gimbal Stick
Tension Adjustment
11
Aileron Trim (Mode 1, 2)
Rudder Trim (Mode 3, 4)
12 Neck Strap Mount
13 Scroll wheel
14 LCD
15 Buzzer Grill
16 Back Button
17 Clear Button
18
Rudder Trim (Mode 1, 2)
Aileron Trim (Mode 3, 4)
Function
19
Throttle Tension Adjustment
Throttle Ratchet Adjustment
(Mode 2, 4)
20
Elevator/Rudder Stick (Mode 1)
Throttle/Rudder Stick (Mode 2)
Elevator/Aileron Stick (Mode 3)
Throttle/Aileron Stick (Mode 4)
21
Left/Right Gimbal Stick
Tension Adjustment
22
Up/Down Gimbal Stick
Tension Adjustment
23 Switch D
24 Switch B
25 Switch A
Function
26 Switch C
27 Bind/Switch
28
Elevator Trim (Mode 1, 3)
Throttle Trim (Mode 2, 4)
29 On/Off Switch
30 Antenna
The transmitter comes with a
thin, clear plastic fi lm applied to
some front panels for protection
during shipping. Humidity and
use may cause this fi lm to come
off. Carefully remove this fi lm as
desired.
1
5
6
2
4
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
24
23
26
27
28
29
30
3
25

Spektrum DX8e Specifications

General

Modulation	DSM2, DSMX
Proper use	Airplane, Aircraft
Product type	Remote control
Product color	Black
Frequency band	2.4 GHz
Channels quantity	8 channels
Brand compatibility	Spektrum
Compatible memory cards	SD
Number of memory records	250
Display type	LCD
Built-in display	Yes
Battery type	AA
Number of batteries supported	4
