24 SPEKTRUM NX10 • TRANSMITTER INSTRUCTION MANUAL
EN
Trim Style
Trim style changes the shape of the trim indicators on the Main
Screen. Display options include:
• Boxed Boxes (Default)– The indicators appear as an
outlined box when you adjust the trim.
• Boxed Arrows– The indicators appear as outlined arrows
when you adjust the trim.
• Arrows on Lines– The indicators appear as arrows on lines
when you adjust the trim.
Inhibit removes all trim bars and indicators from the Main Screen.
To change the Trim style:
1. Scroll to Trim style and press the scroll wheel once.
2. Scroll left or right to change the Trim style option.
3. Press the scroll wheel to save the selection.

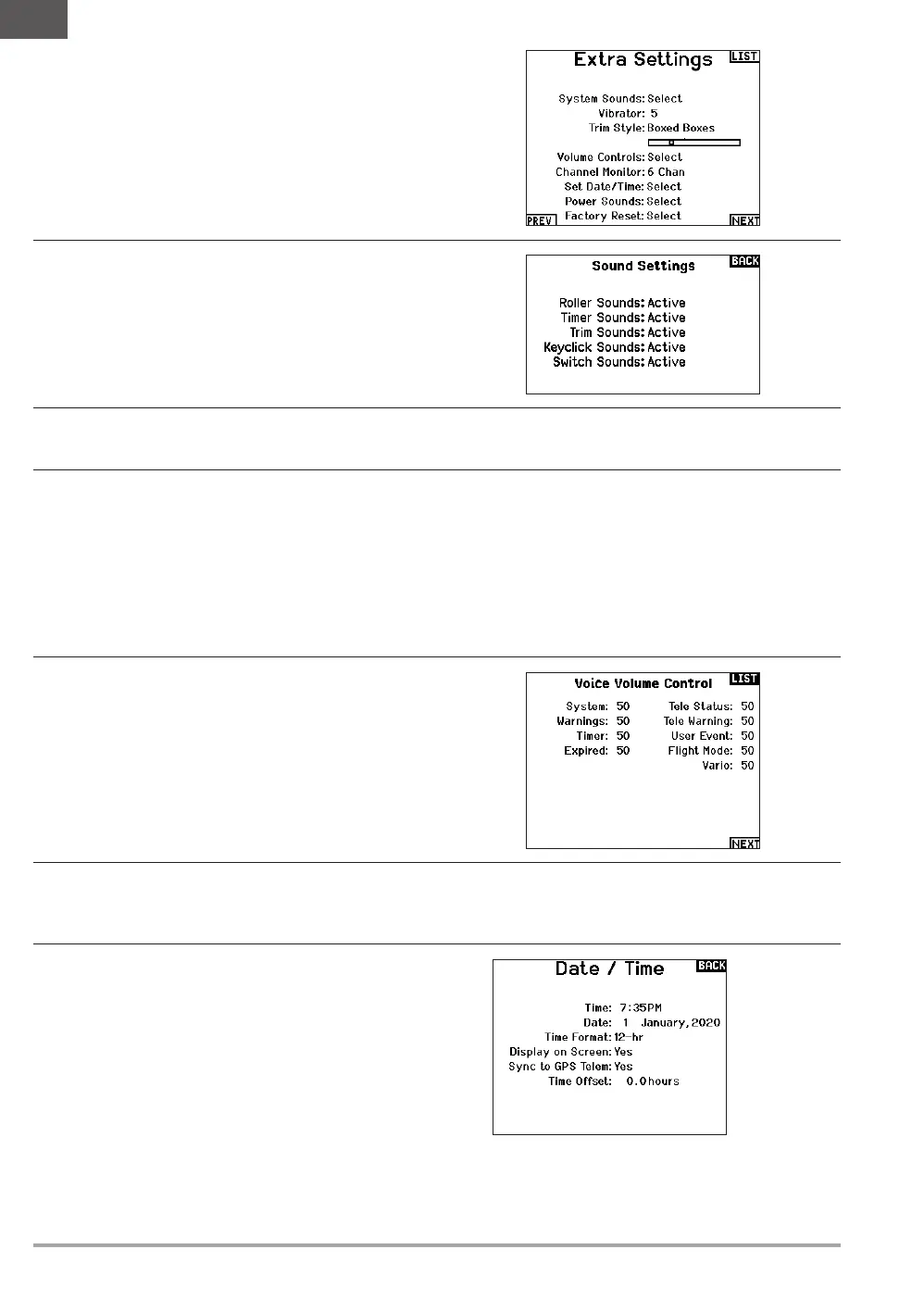

Extra Settings
The Extra Settings screen enables you to:
• Turn sounds off or on
• Change the appearance of the trim indicators
System Sounds
Scrolling to System Sounds and pressing the scroll wheel turns
sounds on (Active) or off (Inhibit).
You may disable all sounds by changing the volume to 0.
Vibrator Intensity Adjustment
Adjust this value to change the intensity of the built-in vibrator.
Set Date/Time
When you select this option another screen is opened. Set the time
and choose the options to suit your needs.
Volume Controls
When you select this option another screen is opened and each sub-
system has a volume setting that can be adjusted from 0–100.
Channel Monitor
Select how many channels you want to display on the channel
monitor (select from Default, 4, 6, 7, 8, 9, or 10 channels)
