Spektrum NX10SE User Manual

6 SPEKTRUM NX10 • TRANSMITTER INSTRUCTION MANUAL
EN
1
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
2
3
4
5
6
7
2
3
4
5
67
8
9
10
11
12

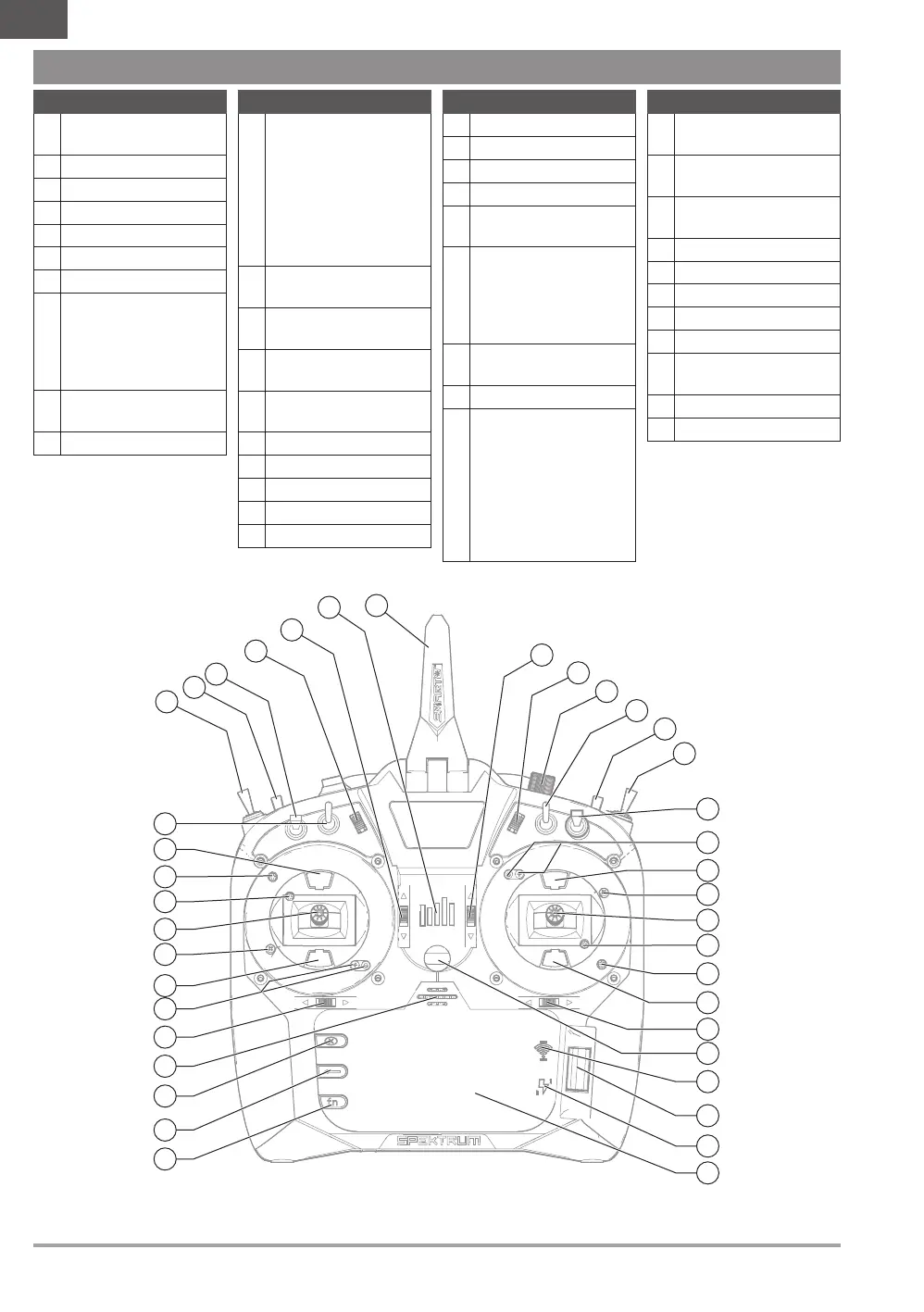

TRANSMITTER FUNCTIONS
Function
1
Elevator Trim (Mode 2, 4)
Throttle Trim (Mode 1, 3)
2 R Trimmer
3 R Knob
4 Switch E
5 Switch H
6 Switch G
7 Switch F
8
Throttle Tension
Adjustment
Throttle Ratchet
Adjustment
(Mode 1, 3)
9
Gimbal Travel Limiter
Access Panel
10 Mode Change Screw
Function
11
Throttle/Aileron Stick
(Mode 1)
Elevator/Aileron Stick
(Mode 2)
Throttle/Rudder Stick
(Mode 3)
Elevator/Rudder Stick
(Mode 4)
12
Left/Right Gimbal Stick
Tension Adjustment
13
Up/Down Gimbal Stick
Tension Adjustment
14
Gimbal Travel Limiter
Access Panel
15
Aileron Trim (Mode 1, 2)
Rudder Trim (Mode 3, 4)
16 Neck Strap Mount
17 WiFi Indicator
18 Scroll wheel
19 Charge Indicator
20 LCD
Function
21 Function Button
22 Back Button
23 Clear Button
24 Speaker
25
Rudder Trim (Mode 1, 2)
Aileron Trim (Mode 3, 4)
26
Throttle Tension
Adjustment
Throttle Ratchet
Adjustment
(Mode 2, 4)
27
Gimbal Travel Limiter
Access Panel
28 Mode Change Screw
29
Elevator/Rudder Stick
(Mode 1)
Throttle/Rudder Stick
(Mode 2)
Elevator/Aileron Stick
(Mode 3)
Throttle/Aileron Stick
(Mode 4)
Function
30
Left/Right Gimbal Stick
Tension Adjustment
31
Up/Down Gimbal Stick
Tension Adjustment
32
Gimbal Travel Limiter
Access Panel
33 Switch D
34 Switch B
35 Switch A
36 Switch C
37 L Trimmer
38
Elevator Trim (Mode 1, 3)
Throttle Trim (Mode 2, 4)
39 On/Off Switch
40 Antenna

Spektrum NX10SE Specifications

General

Brand	Spektrum
Model	NX10SE
Category	Transmitter
Language	English
