6 SPEKTRUM NX6 • TRANSMITTER INSTRUCTION MANUAL
EN

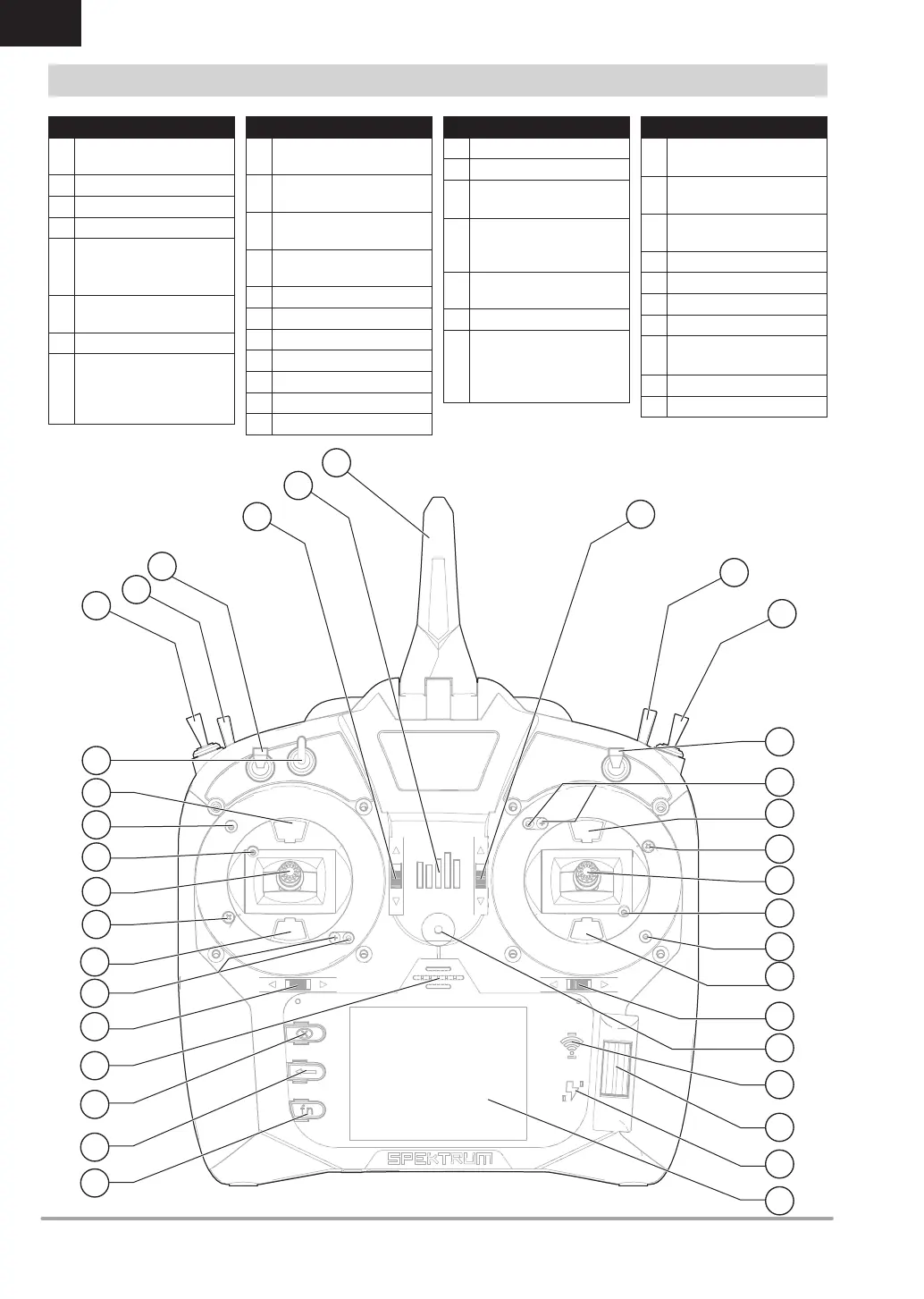

TRANSMITTER FUNCTIONS
Function
1
Elevator Trim (Mode 2, 4)
Throttle Trim (Mode 1, 3)
2 Switch H
3 Switch G
4 Switch F
5
Throttle Tension Adjustment
Throttle Ratchet Adjustment
(Mode 1, 3)
6
Gimbal Travel Limiter Access
Panel
7 Mode Change Screw
8
Throttle/Aileron Stick (Mode 1)
Elevator/Aileron Stick (Mode 2)
Throttle/Rudder Stick (Mode 3)
Elevator/Rudder Stick (Mode 4)
Function
9
Left/Right Gimbal Stick
Tension Adjustment
10
Up/Down Gimbal Stick
Tension Adjustment
11
Gimbal Travel Limiter Access
Panel
12
Aileron Trim (Mode 1, 2)
Rudder Trim (Mode 3, 4)
13 Neck Strap Mount
14 WiFi Indicator
15 Scroll wheel
16 Charge Indicator
17 LCD
18 Function Button
19 Back Button
Function
20 Clear Button
21 Speaker
22
Rudder Trim (Mode 1, 2)
Aileron Trim (Mode 3, 4)
23
Throttle Tension Adjustment
Throttle Ratchet Adjustment
(Mode 2, 4)
24
Gimbal Travel Limiter Access
Panel
25 Mode Change Screw
26
Elevator/Rudder Stick (Mode 1)
Throttle/Rudder Stick (Mode 2)
Elevator/Aileron Stick (Mode 3)
Throttle/Aileron Stick (Mode 4)
Function
27
Left/Right Gimbal Stick
Tension Adjustment
28
Up/Down Gimbal Stick
Tension Adjustment
29
Gimbal Travel Limiter Access
Panel
30 Switch D
31 Switch B
32 Switch A
33 Switch C
34
Elevator Trim (Mode 1, 3)
Throttle Trim (Mode 2, 4)
35 On/Off Switch
36 Antenna
The transmitter comes with a thin, clear plastic lm applied to some front
panels for protection during shipping. Humidity and use may cause this lm
to come off. Carefully remove this lm as desired.
3
5
4
1
2
7
6
8
9
10
11
13
12
14
16
15
17
18
19
20
21
22
23
24
25
27
26
28
31
29
30
33
34
35
36
32
