Spektrum TM1000 User Manual

EN
External Voltage
Externalvoltagetelemetryiscommonlyusedtomonitorightpackvoltageoryoucan
monitorignitionbatteriesongasengineequippedaircraft.YoucansetalarmsintheDX8to
prevent over-discharging batteries.

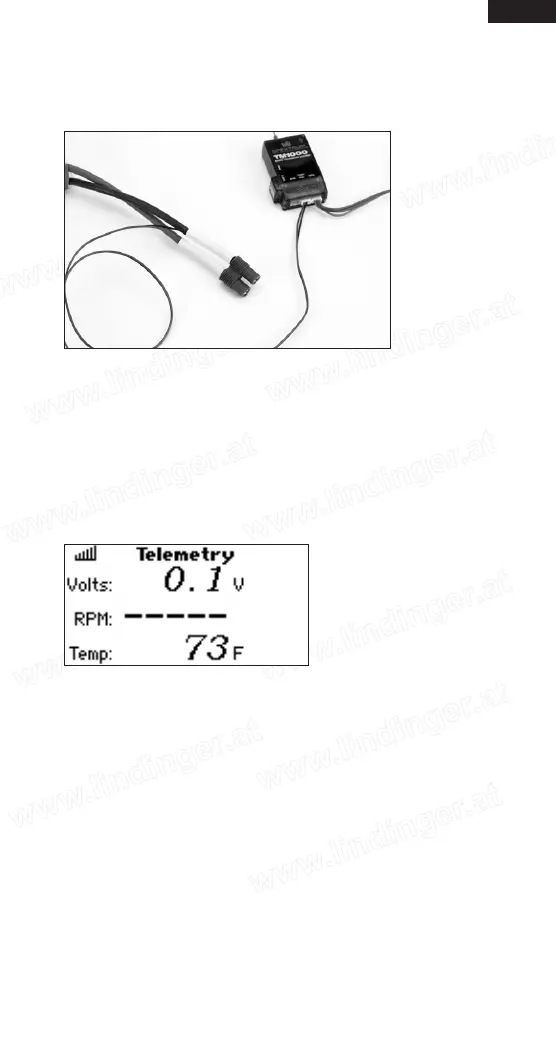

Installation
 PlugtheconnectorofthevoltagesensorintotheTEMP/VOLTportintheTelemetry
module.
Attach the opposite ends of the voltage sensor (stripped wires) to the voltage source you
wish to monitor. Note the polarity (Red = + positive /Black = - Negative).
 Typically,youcansolderthewirestothebatteryconnector.Atthispointtheexternal
voltage displays on the telemetry screen.
Note:
AY-harnessisprovidedifyouwanttousetemperatureandvoltage
sensors simultaneously.
