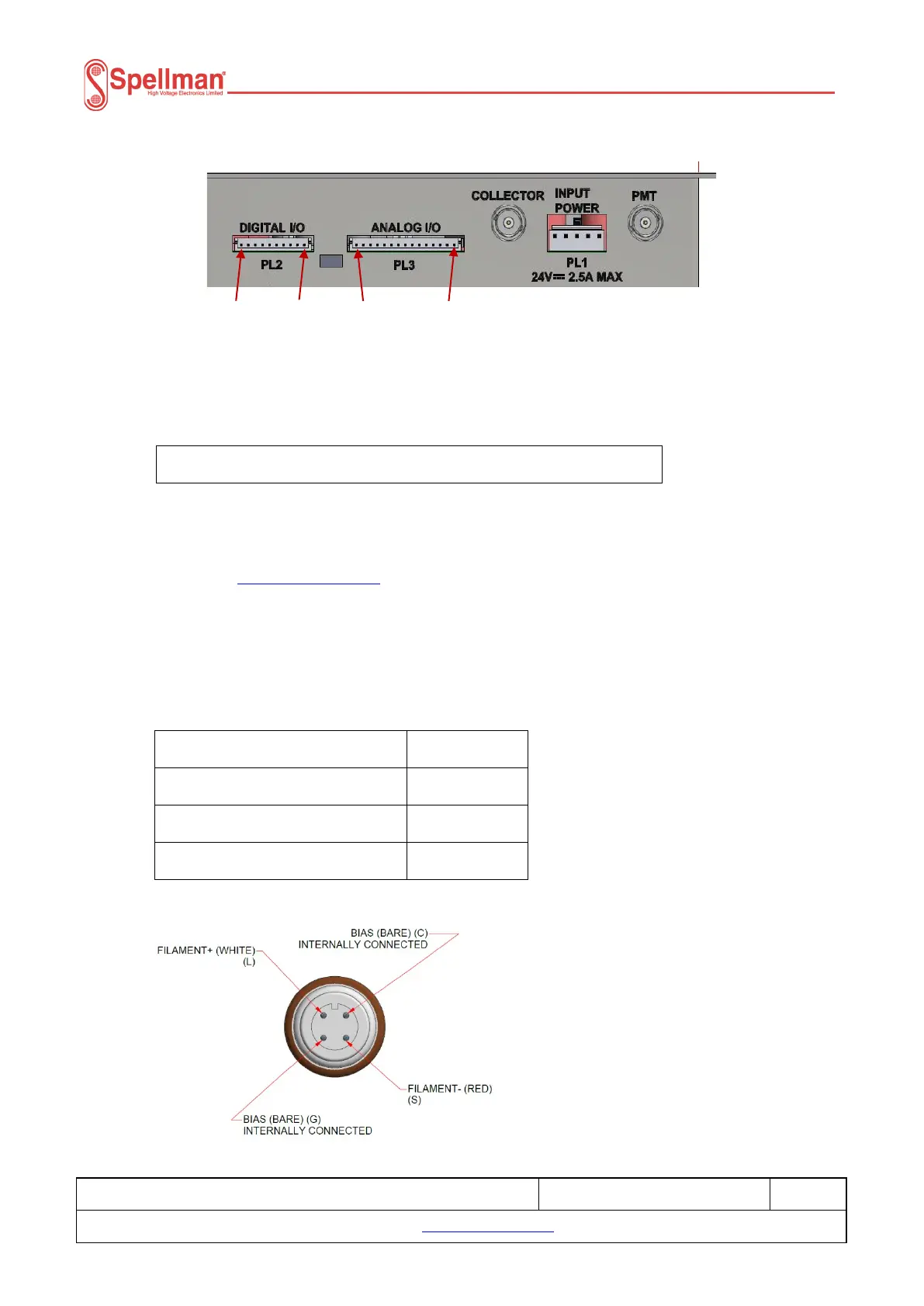

Receptacles pinout:
3.3.3. Input Power and Control Connectors Accessory Kit
An accessory kit is available to order free of charge which contains the mating housings and crimps
for the low voltage connectors.
3.3.4. High Voltage Connector and Cables
The unit uses a standard high voltage receptacle from Claymount: the CA11 (mini 75).
Claymount (www.claymount.com) can also provide mating cable assemblies terminated with mini75
high voltage plug.
Spellman can provide a cable assembly in different lengths, terminated one end in the mini 75 and
the other end open.
Drawing is shown in Appendix 2 - HV Cable Assembly
Part numbers are:
HV Cable Assembly part number
Cable Length
HVC30/3SO/1317
2m
HVC30/3SO/1314
3m
HVC30/3SO/1315
5m
HV Cable Assembly Connector:
Low Voltage Mating Connectors Accessory Kit part number: 13802-27
Pin9……Pin1 Pin15…………Pin1
