Spellman MONOBLOCK Series - 1.0 Scope; 2.0 Functional Description; 3.0 Getting Started - Interface Wiring and Pin-Outs

101501-695 REV B 3
475 Wireless Boulevard • Hauppauge, New York 11788, USA • www.spellmanhv.com • T:+1 631.630.3000 • F:+1 631.435.1620
WARNING
THIS EQUIPMENT GENERATES DANGEROUS VOLTAGES THAT MAY BE FATAL.
PROPER GROUNDING OF ALL HIGH VOLTAGE EQUIPMENT IS ESSENTIAL.SEE 80kv
MONOBlOCK OWNERS MANUAL FOR PROPER GROUNDING TECHNIQUE AND SAFETY
PRECAUTIONS BEFORE APPLING AC INPUT POWER TO THE XRB UNIT.
TO PREVENT DAMAGE TO THE HOST COMPUTER THE COMPUTER SHOULD BE
GROUNDED TO THE SAME GROUND AS THE UUT.
This unit is capable of producing X-ray radiation, please proceed only after
proper precautions have been taken to prevent X-ray exposure.
1.0 SCOPE
This document applies to the communications interfaces for the XRBHR, XRBD
and SMART Control.
2.0 FUNCTIONAL DESCRIPTION
The XRB provides two types of digital communications interface:
• RS-232
• Ethernet
3.0 GETTING STARTED - INTERFACE WIRING AND PIN-OUTS
3.1 RS232 INTERFACE
The RS232C interface has the following attributes:
• 115K bits per second
• No Parity
• 8 Data Bits
• 1 Stop Bit
• No handshaking

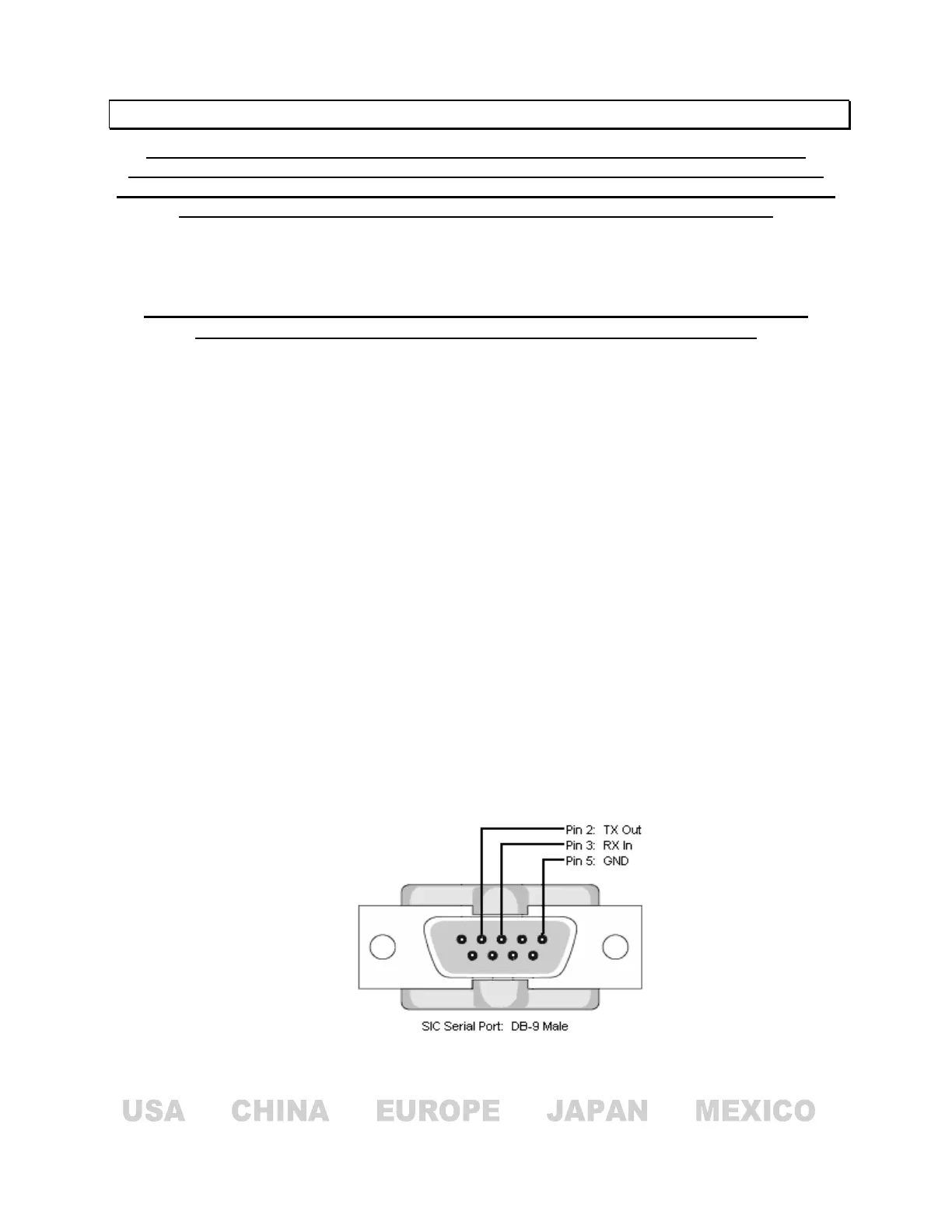

• DB-9 connector as shown
