Sphere Astrolink - System Connection Diagram

ENGLISH - 11

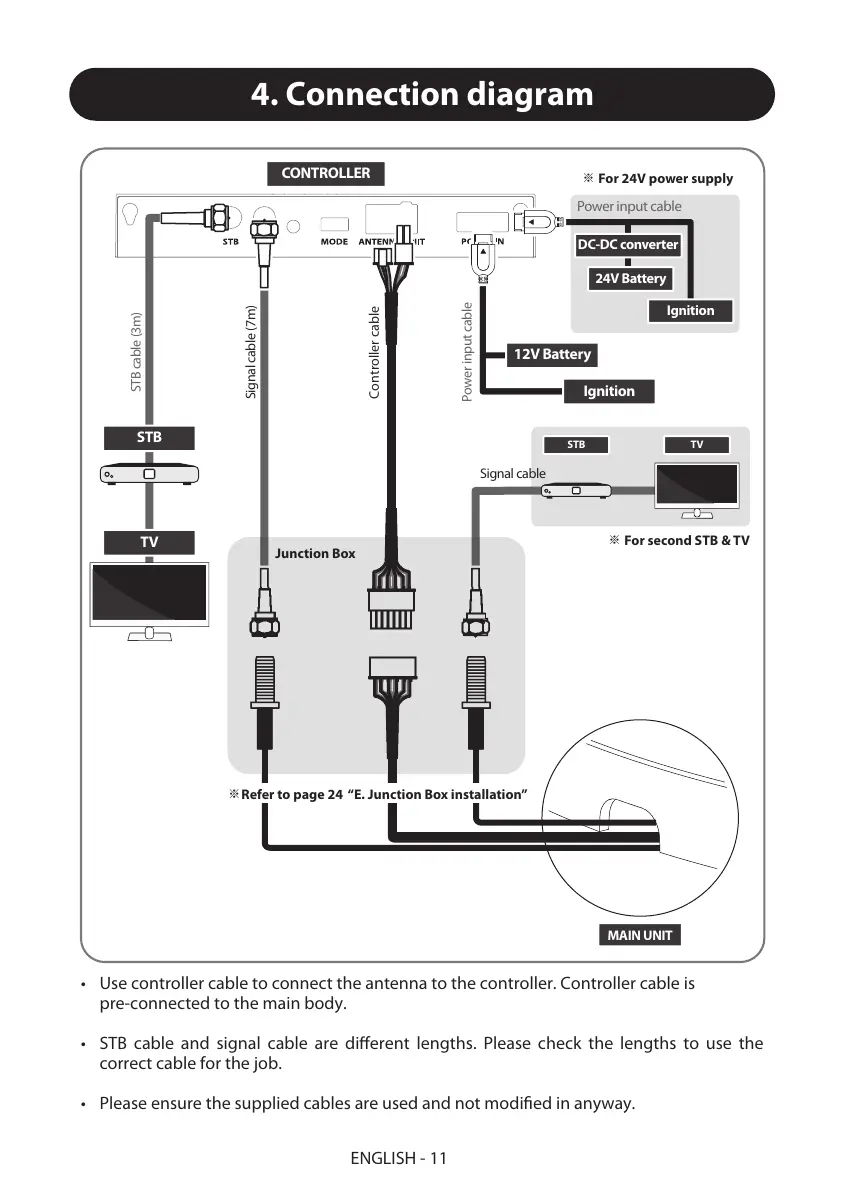

4. Connection diagram
MAIN UNIT
Use controller cable to connect the antenna to the controller. Controller cable is
pre-connected to the main body.
STB cable and signal cable are different lengths. Please check the lengths to use the
correct cable for the job.
Please ensure the supplied cables are used and not modified in anyway.
•
•
•
CONTROLLER
Controller cable
※ For second STB & TV
※Refer to page 24 “E. Junction Box installation”
Junction Box
※ For 24V power supply
Signal cable
Power input cable
Signal cable (7m)
STB TV
Ignition
12V Battery
Power input cable
Ignition
24V Battery
DC-DC converter
STB cable (3m)
STB
TV
