ENGLISH - 8

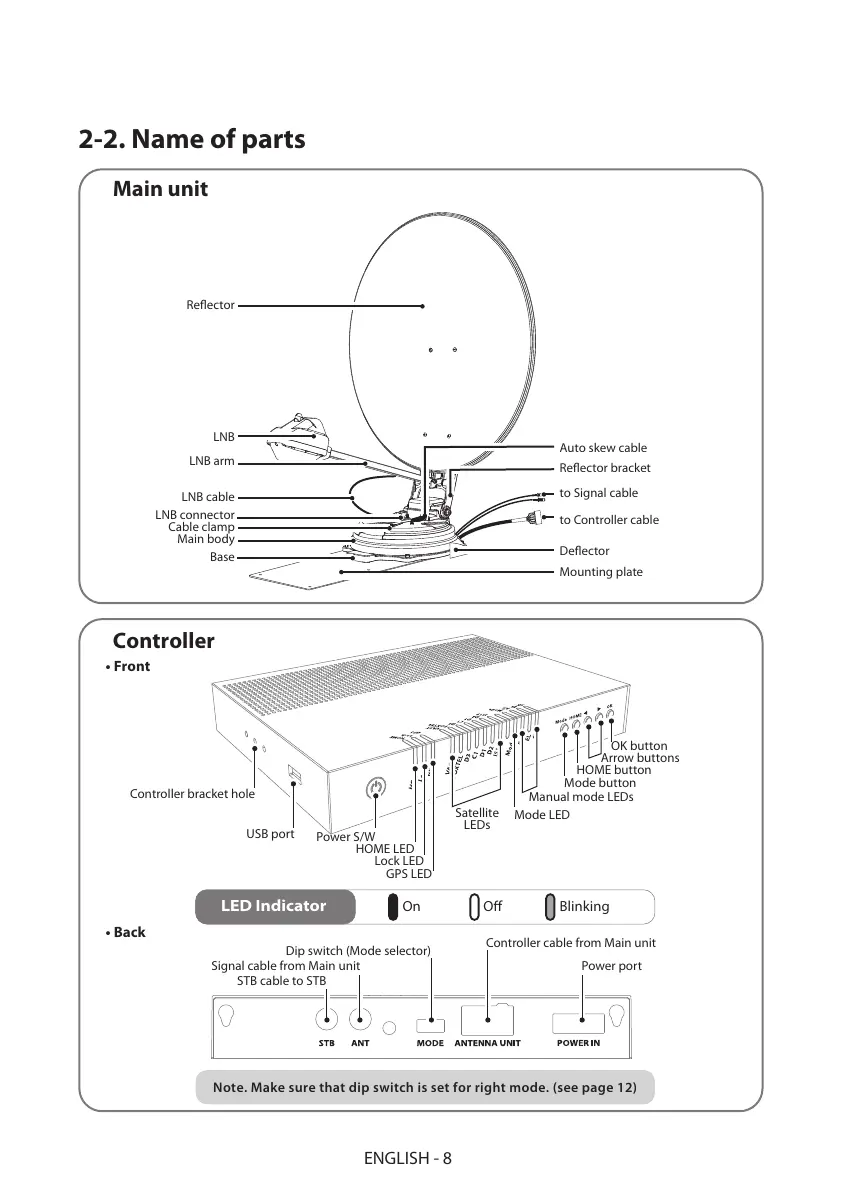

2-2. Name of parts
Main unit
Controller
Reflector
LNB
LNB arm
LNB cable
LNB connector
Cable clamp
Main body
Base
Auto skew cable
Reflector bracket
to Signal cable
to Controller cable
Deflector
Mounting plate
• Front
• Back
On
LED Indicator
Power S/W
USB port
Controller bracket hole
HOME LED
Lock LED
GPS LED
Satellite
LEDs
Mode button
Manual mode LEDs
Mode LED
HOME button
Arrow buttons
OK button
BlinkingOff
STB cable to STB
Signal cable from Main unit
Dip switch (Mode selector)
Controller cable from Main unit
Power port
Note. Make sure that dip switch is set for right mode. (see page 12)
