Sphere SSA-850 User Manual

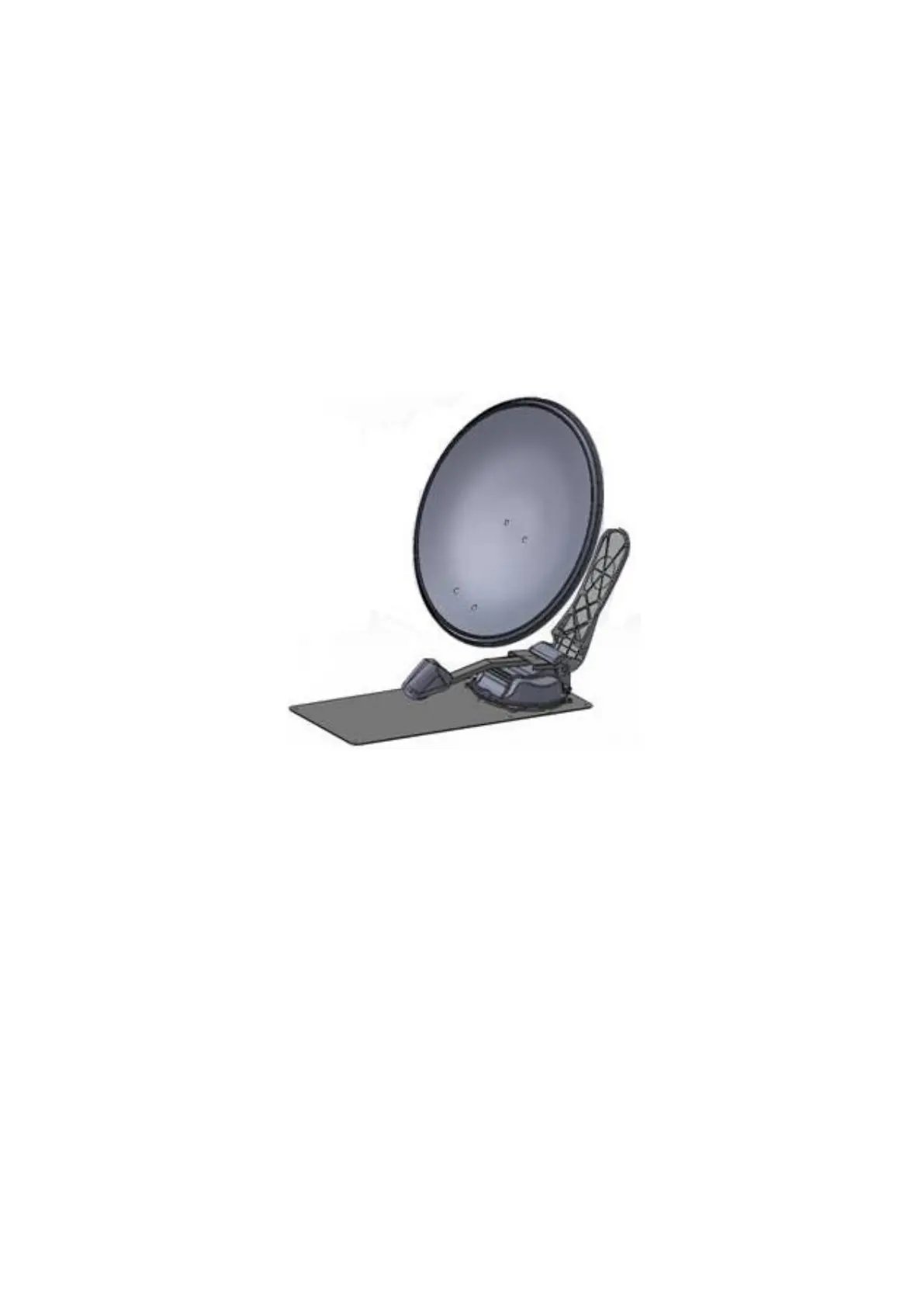

Installing the dish to the roof top antenna assembly
Once power and control cables are connected, follow the operation steps below
to enable the dish bracket to rise, once the Dish bracket is raised and before the
unit has started to rotate the IDU needs to be paused to allow the dish skin to be
added.
Remove the screws from the dish bracket and align the dish to the dish bracket.
Fix the dish skin in place with the screws provided and follow the steps to close
the dish.
Power up to open the dish bracket
 Press the POWER button
 Press the SEARCH button
 Once the dish bracket is in the open/upright position press and HOLD the
SEARCH and CLOSE buttons for 3Seconds, the IDU will power off and
stay open. Attach the dish skin to the dish bracket.
Power up to return to the closed position with dish skin fitted.
 Press the POWER button
 Press the CLOSE button, the IDU will power off when the dish is closed.

Sphere SSA-850 Specifications

General

Brand	Sphere
Model	SSA-850
Category	Antenna
Language	English
