REAR OF IDU

12VDC

Control Connector

RECEIVER

ANTENNA

RV 12V BATT

5A Fuse*

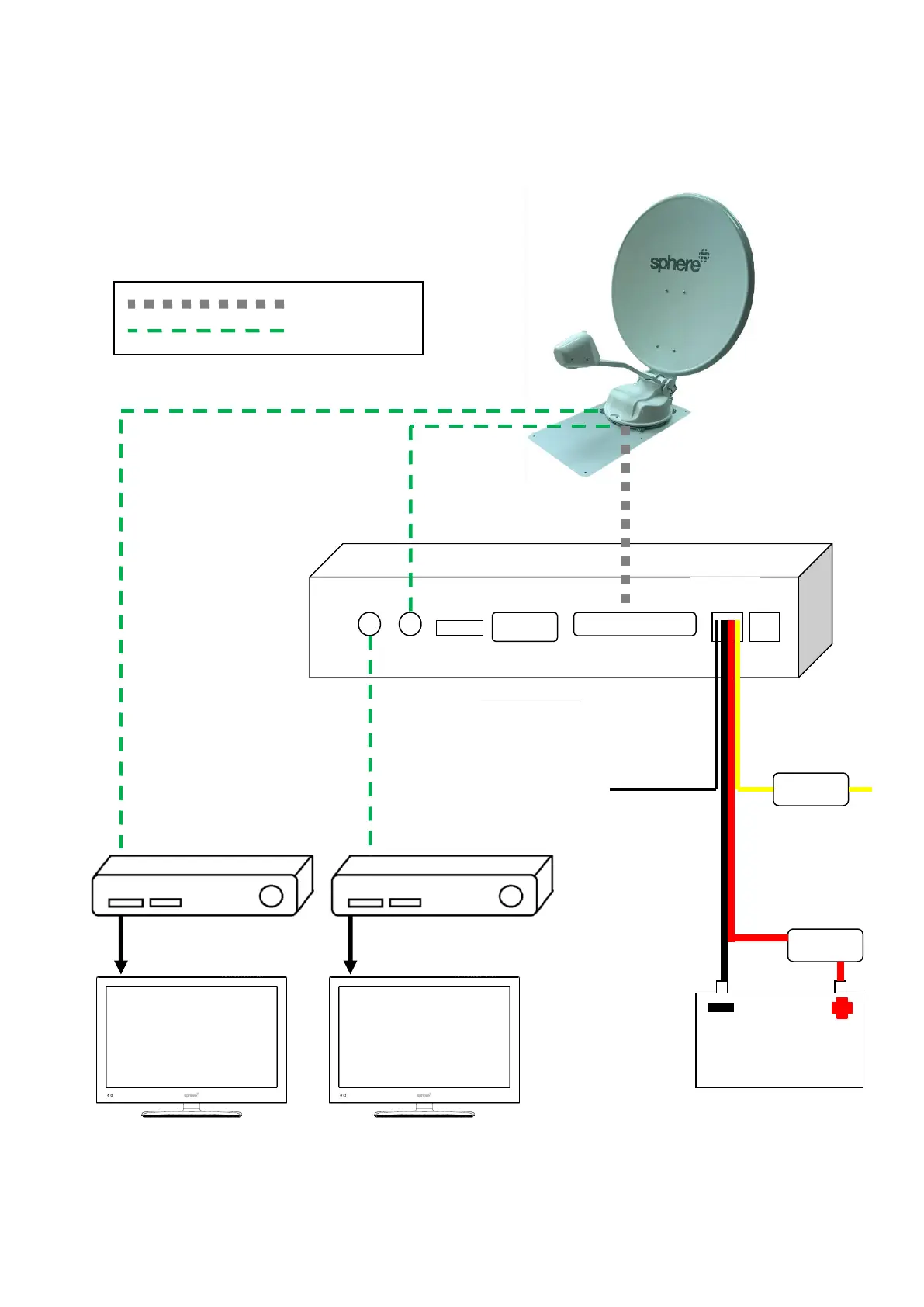

Connection diagram

AV lead AV lead

NOTE: If set-top box No.1 is a

TWIN Tuner receiver, then also

connect coax cable from IDU

‘Receiver’ port to the 2

input.

Control cable

Coax Cable

Set-top box 1

Set-top box 2

(Optional)

*Optional IGN(+)

AUTO CLOSE

Fuse* NOT

supplied

*Neg (-) for IGN Close
