Operating the IDU

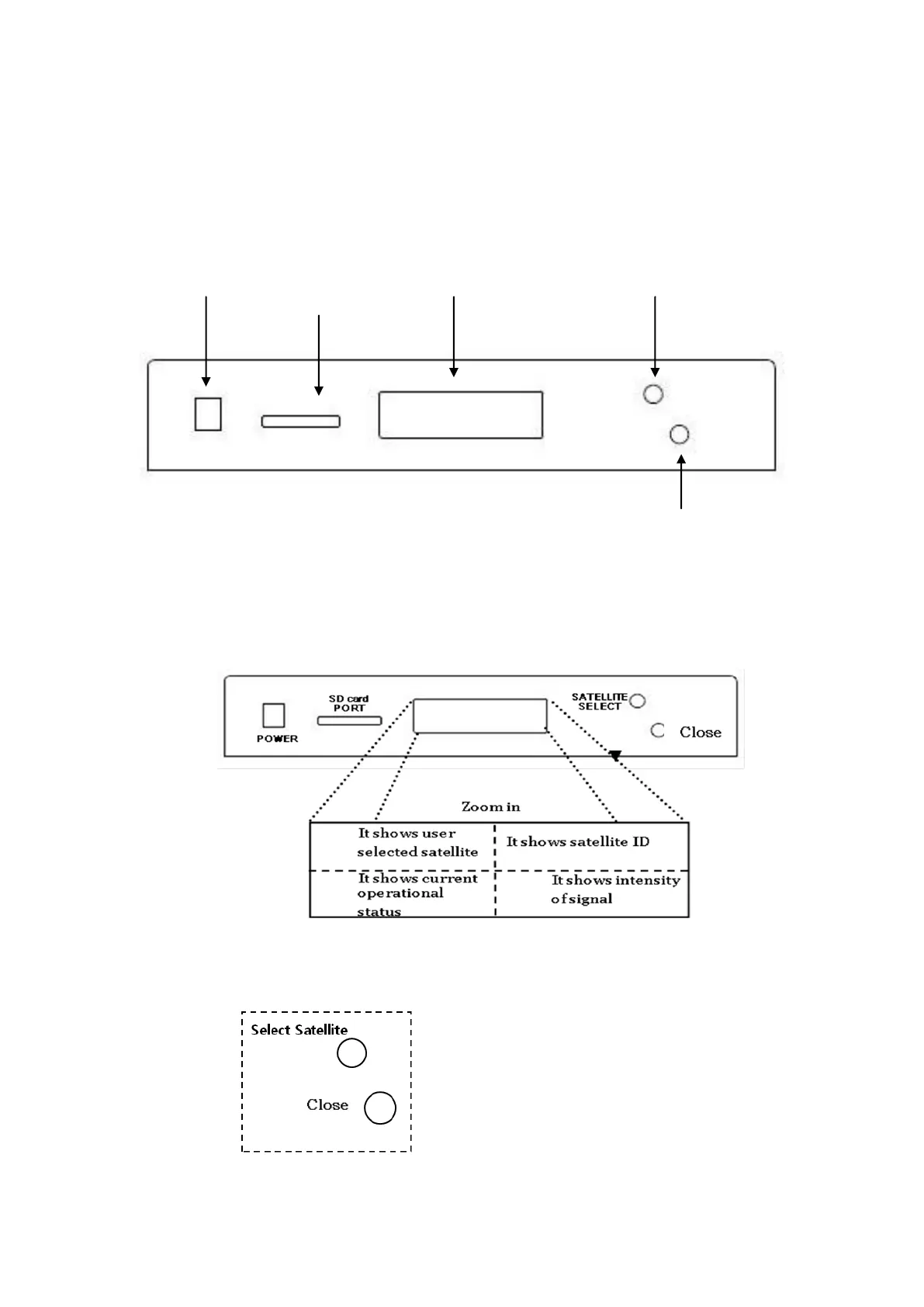

Appearance
Figure 3-2 Appearance of IDU
Functions of LCD Display
Figure 3-3 Functions of LCD Display
Emergency Stop
If you want to stop or Turn off the
antenna immediately, you need to push
the 2 button at one time for more than
3seconds, and then antenna will turn off
at that position.
Power S/W
LCD Display
Satellite select button
Close button
SD card port
