Sphere SSA-850 User Manual

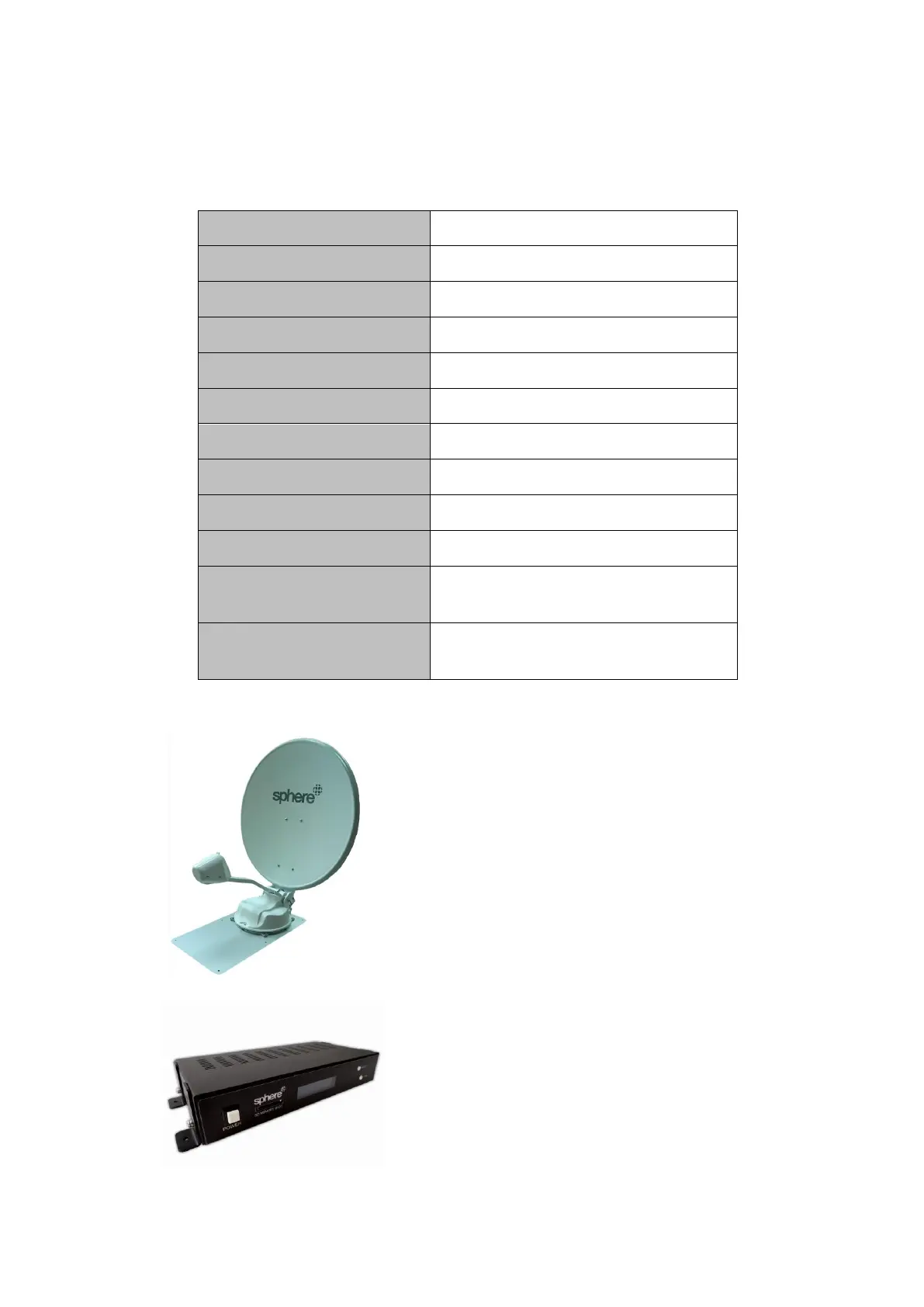

Specification
Antenna Type
Off-set Dish
Frequency Band
Ku Band
LNB local oscillator (LO)
10.700 GHz
Antenna Dish Dimension
860x920mm
Polarization
Horizontal and Vertical
Elevation Range
20° to 74°
Azimuth Range
365°
Tracking Rate
50°/sec
Temperate Range
-20° to 70°
Power
12 VDC
Current Usage
Max2.5A(Typ.1.6A) on SEARCH.
NO Current in Sleep mode
Antenna Weight
16kg - Roof unit ONLY.
19kg - Total Installed weight
Main System Components
Antenna Unit
The antenna unit houses the antenna positioning
Mechanism, LNB (low noise block), and control
Elements within the antenna. Weather tight
connectors join the power, signal, and control
cabling from the antenna IDU unit.
IDU (In Door Unit)
The IDU is the system’s user interface, providing
access to the system and its functions through an
LCD display Power and two control buttons.
IDU provides the power to the antenna as well as
receives the satellite signal from the antenna
unit.
