Selecting the location
Determine the optimum mounting location for the roof top antenna assembly. It should
be installed where:
1. The antenna assembly should be rigidly mounted to the roof of the RV.
If necessary, reinforce the mounting area to assure that it does not flex due to the
weight of the antenna, RV motion or vibration. The Sphere unit was designed
with an oversized 700 x 400mm lower base mounting plate, ensure that this is
securely fixed in all provided screw fixing locations as well as applying a sealant
under the base plate as well as over all of the screw fixings that are used to
secure this to the roof of the RV and to prevent any water leakage into the RV
cabin.
2. Allow the minimum fixing foot print in the closed position.

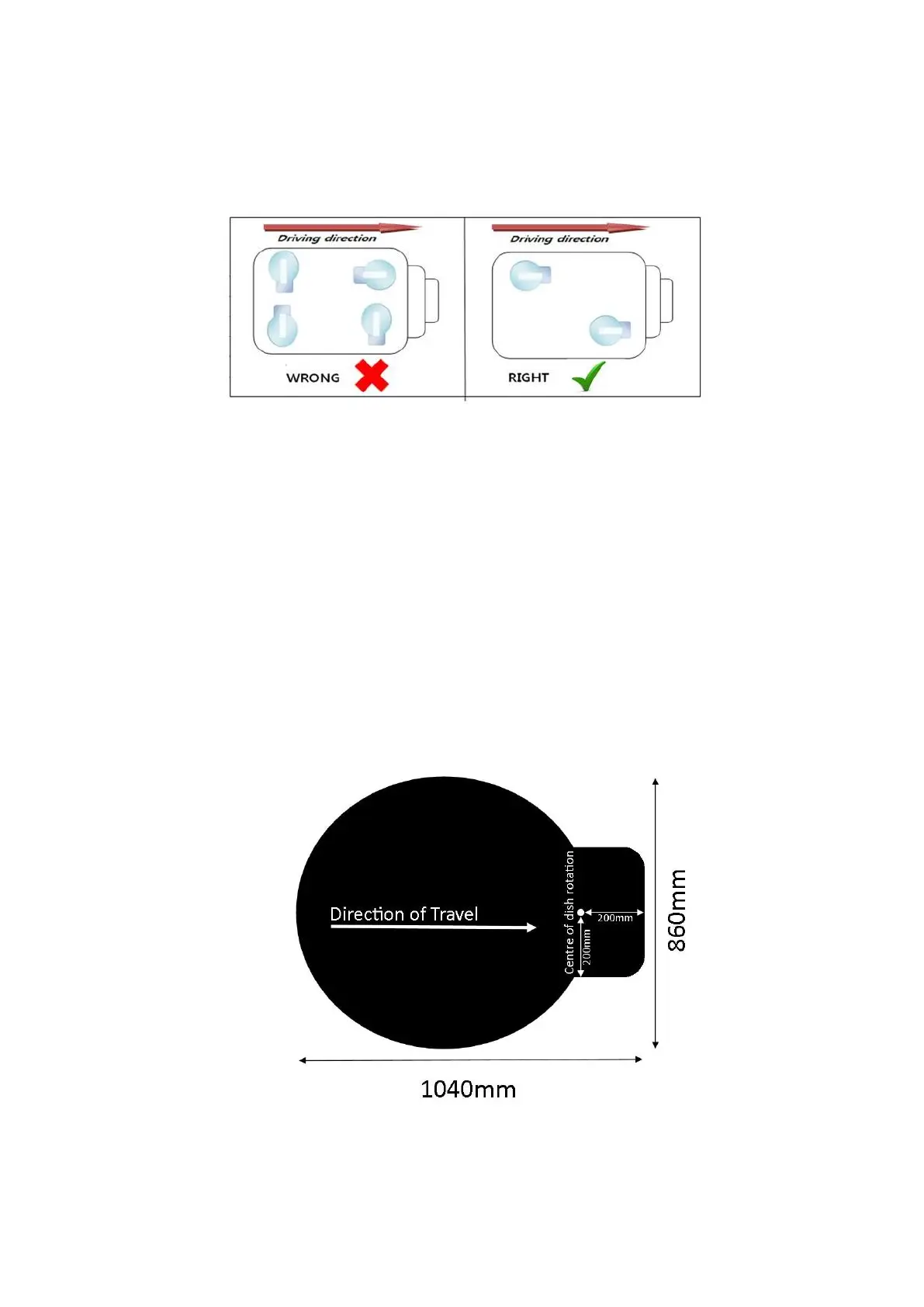

Note: The black shaded area is used completely by the Satellite dish when
closed
Closed height (from RV roof top to top of closed satellite): 200mm
