Not to be distributed without prior consent of SPI Lasers UK Ltd.
Slide: 11
FS-S00149-Rev A
Customer Requirements Pre Install
37 Way Dsub Connections
29/06/2016
NOTE: The integrator safety circuit must include the FCMS such if there is no
continuity between the FCMS pins on the user interface connector the Prism
Fibre Laser is disabled and the industrial laser machine is put in a safe state.

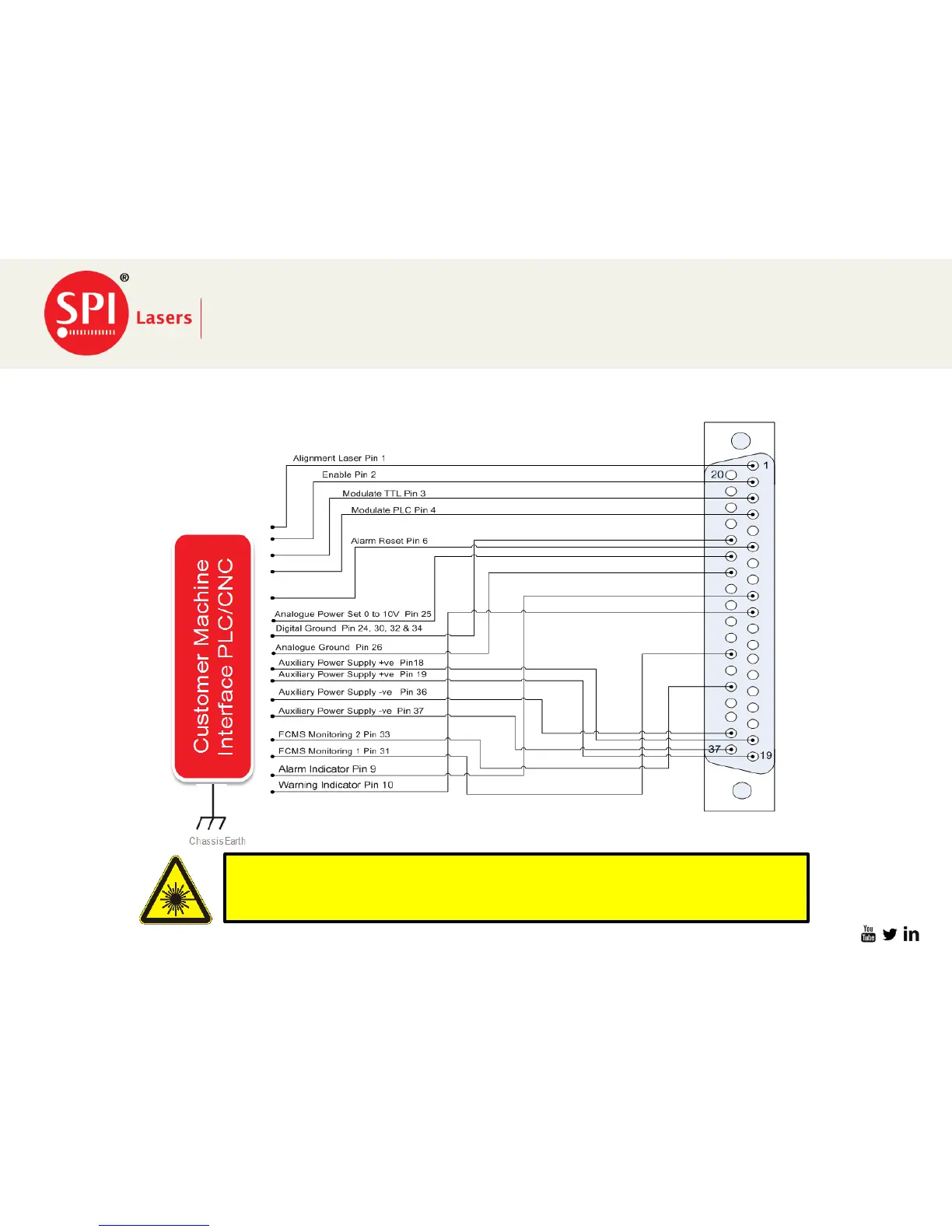

To help the customer the following cable diagram shows the minimum connection that can be achieved which
will operate the laser and allow alarm reset. For the full list of pin outs please refer to the product manual
SM-S00481 Prism OEM Fibre Laser User Manual.
To Next Page
