Once all inspections have taken place the laser can be mounted in to the machine.

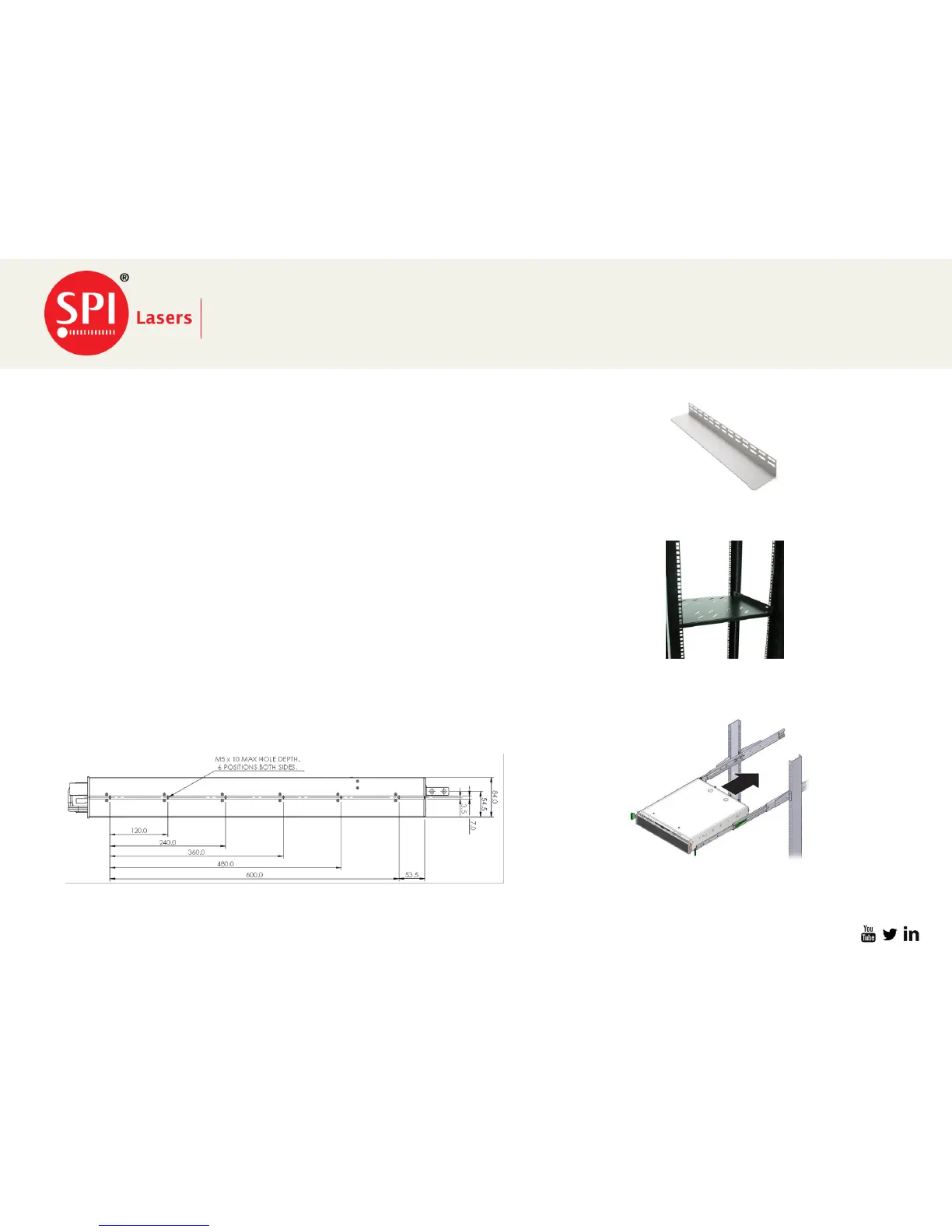

3 ways of Mounting the laser.
• Slide and 19” Rack
• Ensure that the slide rails can take the weight of the Prism unit.
• Bolt the front panel to the cabinet mountings.
• Shelf and 19” Rack
• Ensure the shelf thickness can take the weight of the prism unit.
• Bolt the front panel to the cabinet mountings
• Side Fixing and Rails
• The side of the laser can be mounted to a slide unit
• Customer is required to use all 12 mounting holes to support the weight of the unit
