Customer Requirements Pre Install
29/06/2016
• Water Connections PIPA-Q Optical connector.
• The water connections to the PIPA-Q optical connector requires a separate water supply which can be achieved
by using a two channel chiller unit with independent settings for each channel.
• It is essential that the PIPA-Q optical connector is adequately cooled with a source of clean, chilled water in
accordance with the specifications in the table above . Operating the PIPA-Q optical connector without an
adequate flow of cooling water may result in catastrophic damage.

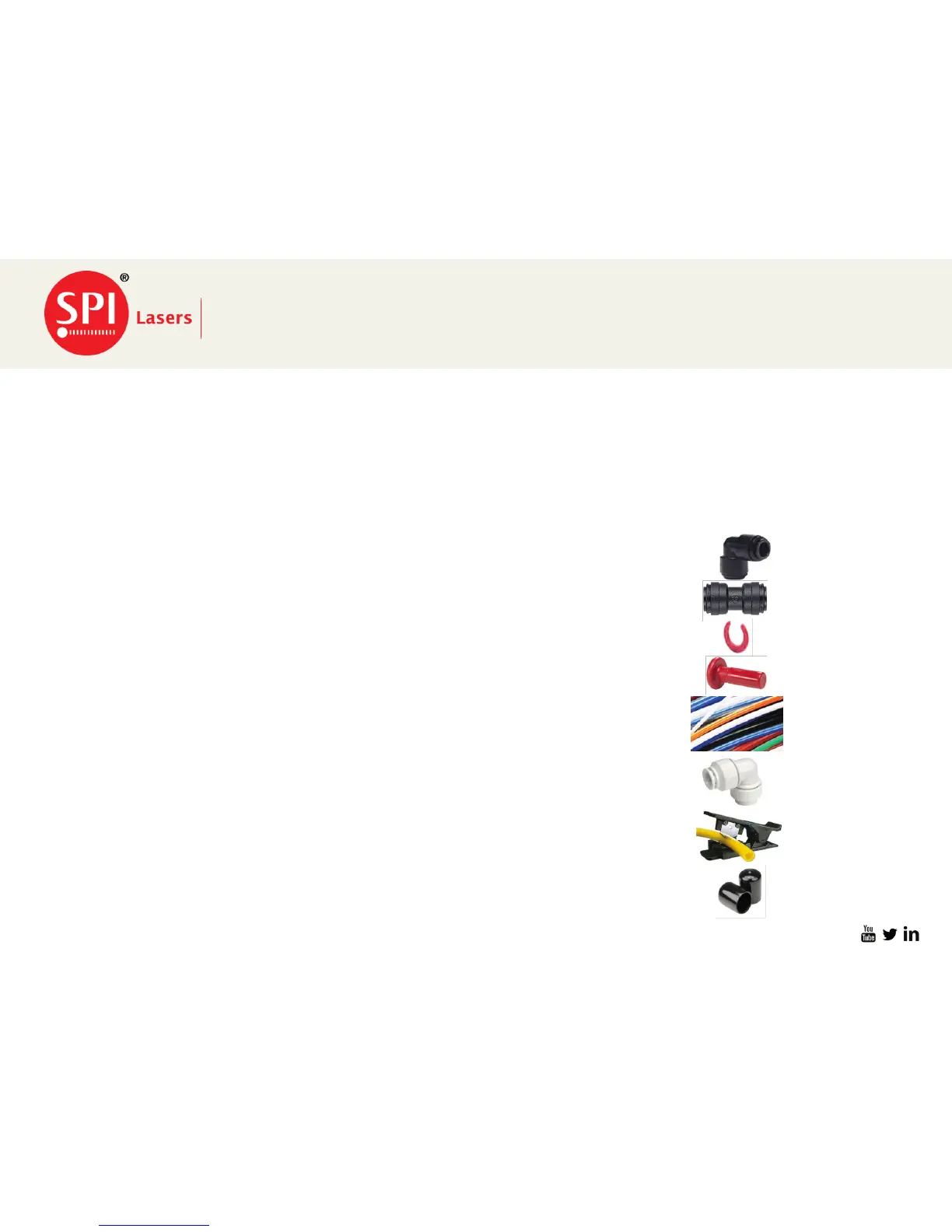

• It is the customers responsibility to provide the fittings and hose for the install of the laser, SPI recommends the
use of John Guest fittings as shown below.
• John Guest 10mm Equal Elbow PM0310E
10mm Equal Straight PM0410E
10mm Locking Clip PM1810R
10mm Plug PM0810R
10mm LLDPE Tubing (Cold Plate) PE-1007-100M-*
6mm LLDPE Tubing (PIPA-Q) PE-0604-0100M-*
10mm Equal Elbow PEM0310W
Tube Cutter TSNIP
• Essentra End Cap FCWA-0095-013
