SPI Lasers redPOWER User Manual

Not to be distributed without prior consent of SPI Lasers UK Ltd.
Slide: 9
FS-S00149-Rev A
Customer Requirements Pre Install
29/06/2016

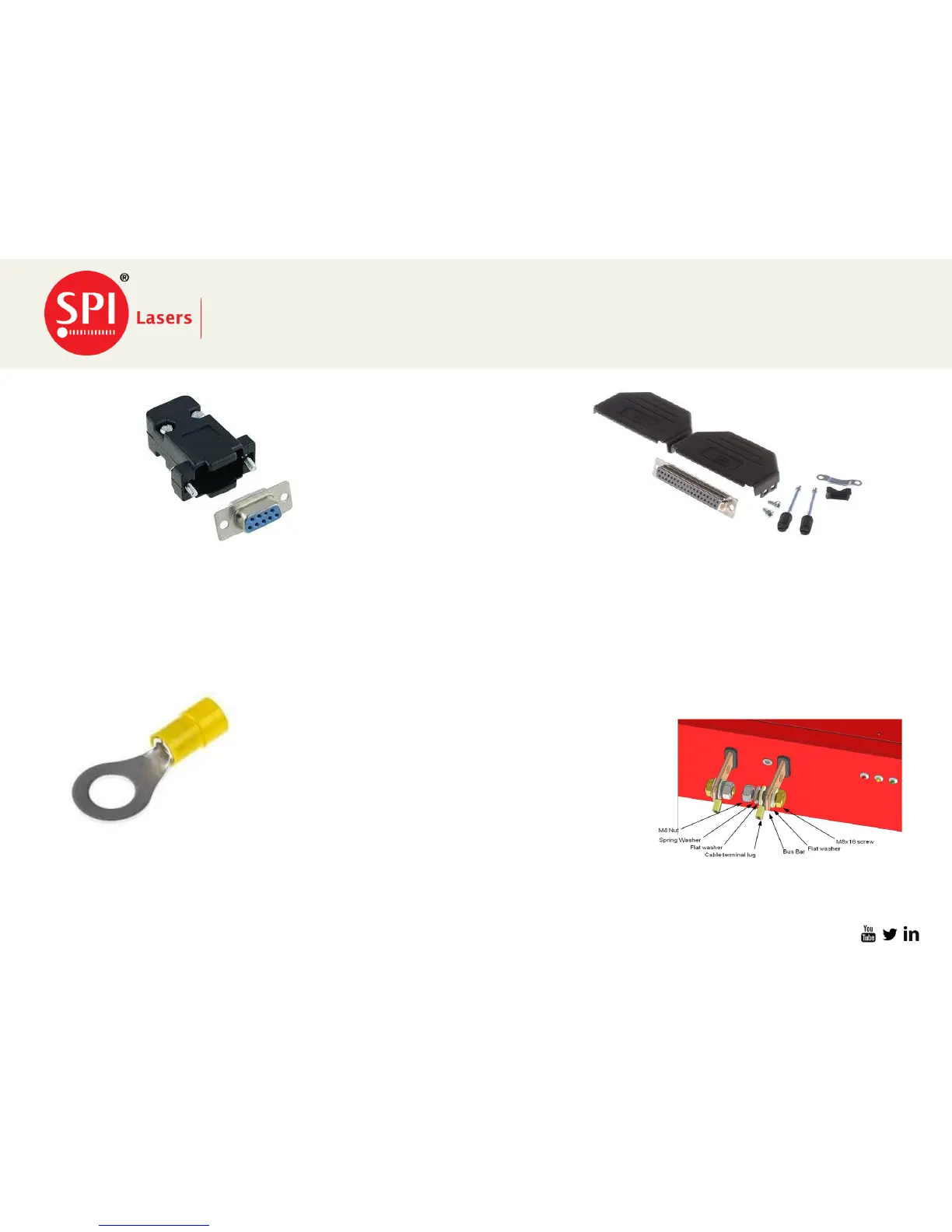

37 way Dsub Female connector
The connector is required for the input
and output signals from the Prism OEM
module
9 Way Dsub x 2 for RS232/485 Cable
The RS232 cable is required for the Customer to
communicate with the Prism OEM using the
PrismView Graphical User Interface program
provided with the laser.
M8 Ring Crimp
The ring crimp is used for the DC power supply cables that
the customer must provide between the Buss bars of the
PSU and the OEM module. Cable size recommended for
the DC power supply to OEM is 10mm
2
