7. Spare parts
5
12
8
7
6
9
11

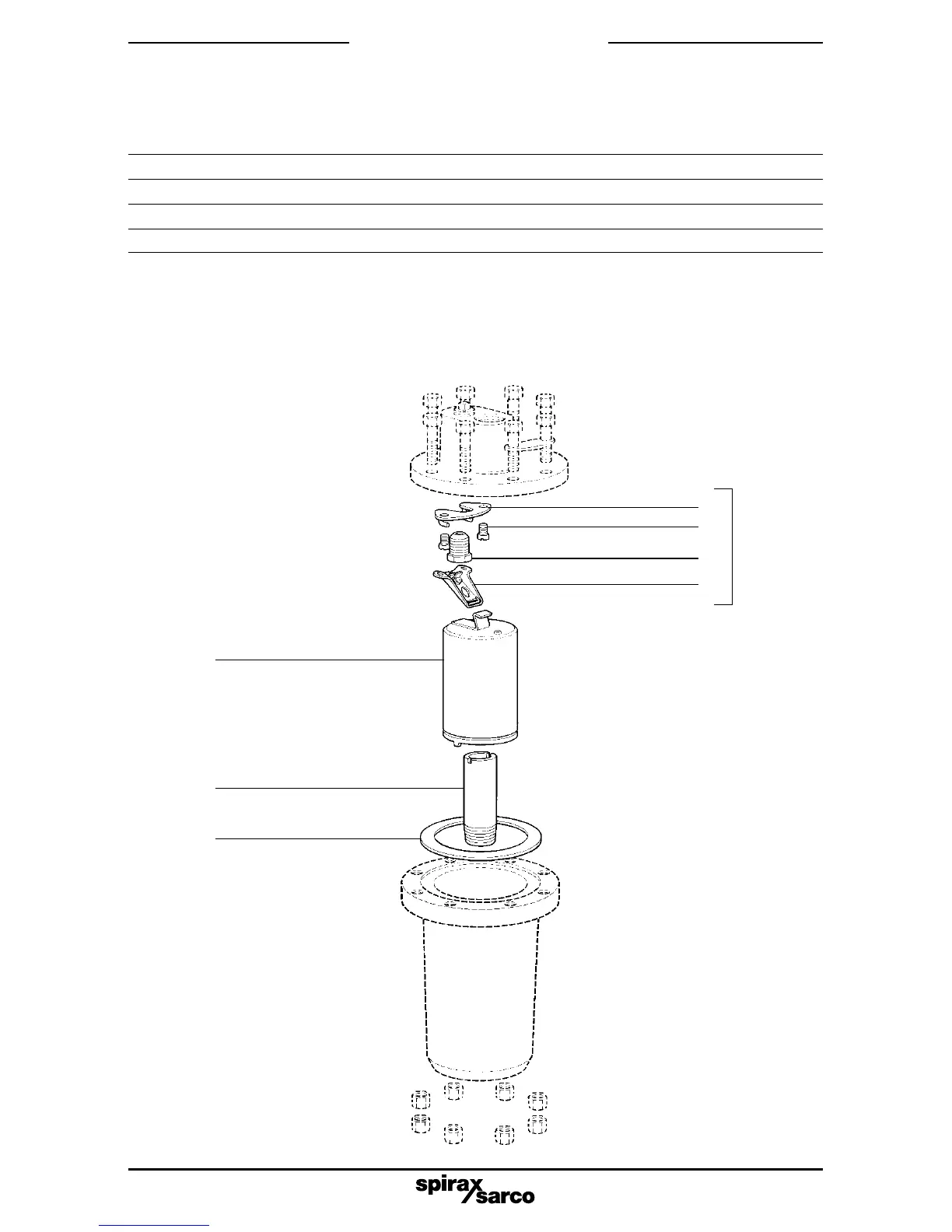

Valve and seat assembly
The spare parts available are shown in heavy outline. Parts shown in broken line are not
supplied as spares.
Available spares
Valve and seat assembly (state pressure range) 6 (2 off), 7, 9, 11
Bucket 5
Internal tube 12
Cover gasket (packet of 3) 8
How to order spares
Always order spare parts by using the description given in the column headed 'Available spares'
and state the size and full definition of the trap eg. 223/16.
Example: 1 - Valve and seat assembly for a Spirax Sarco DN25, 223/16 (having a DPMX of
8.5 bar g) cast iron inverted bucket steam trap.
Fig. 5
To Next Page
