AEL7 Series Electric actuator

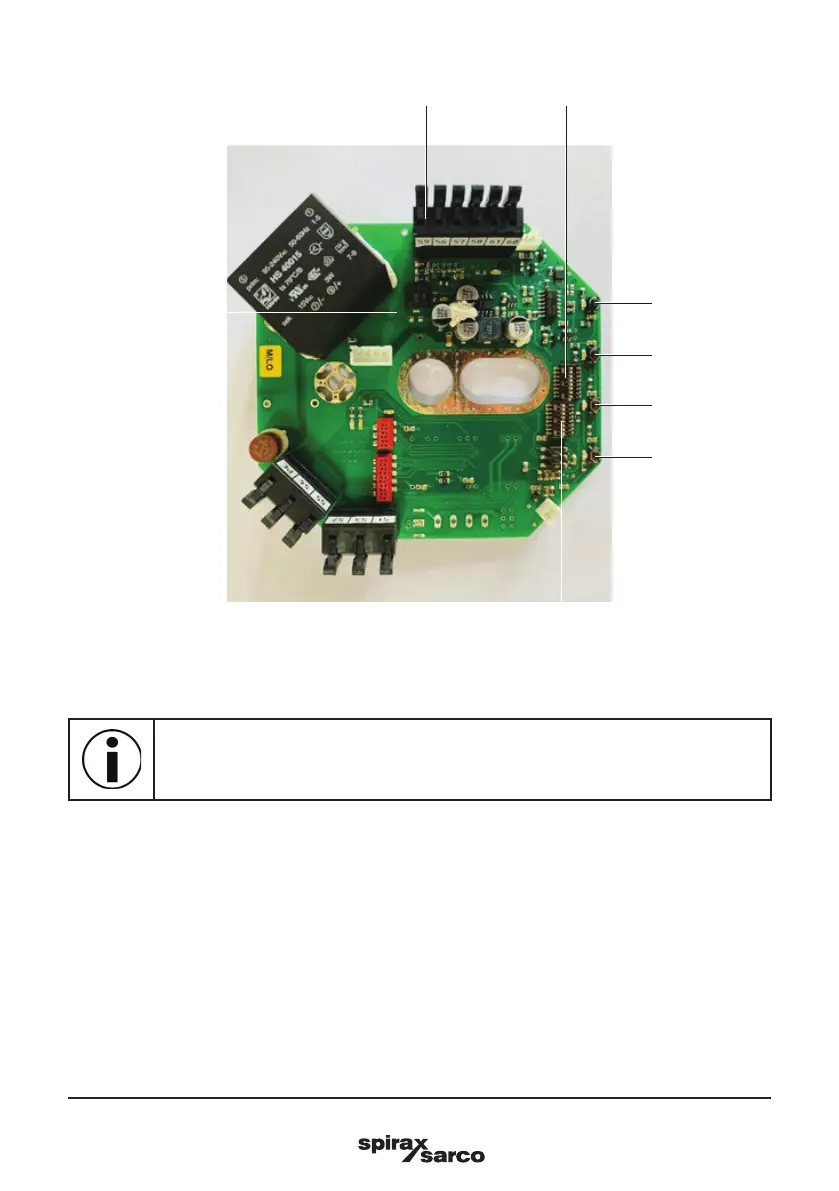

Fig.27
The setting of DIP switches will be updated after power on or reset by simultaneous pressing
HAND+UP+DOWN+PROG buttons.
Positioner
Support
Potentiometer Socket S2
S1
PROG
(Orange LED)
UP
(Green LED)
DOWN
(Red LED)
HAND
(Blue LED)
