Thermal expansion:

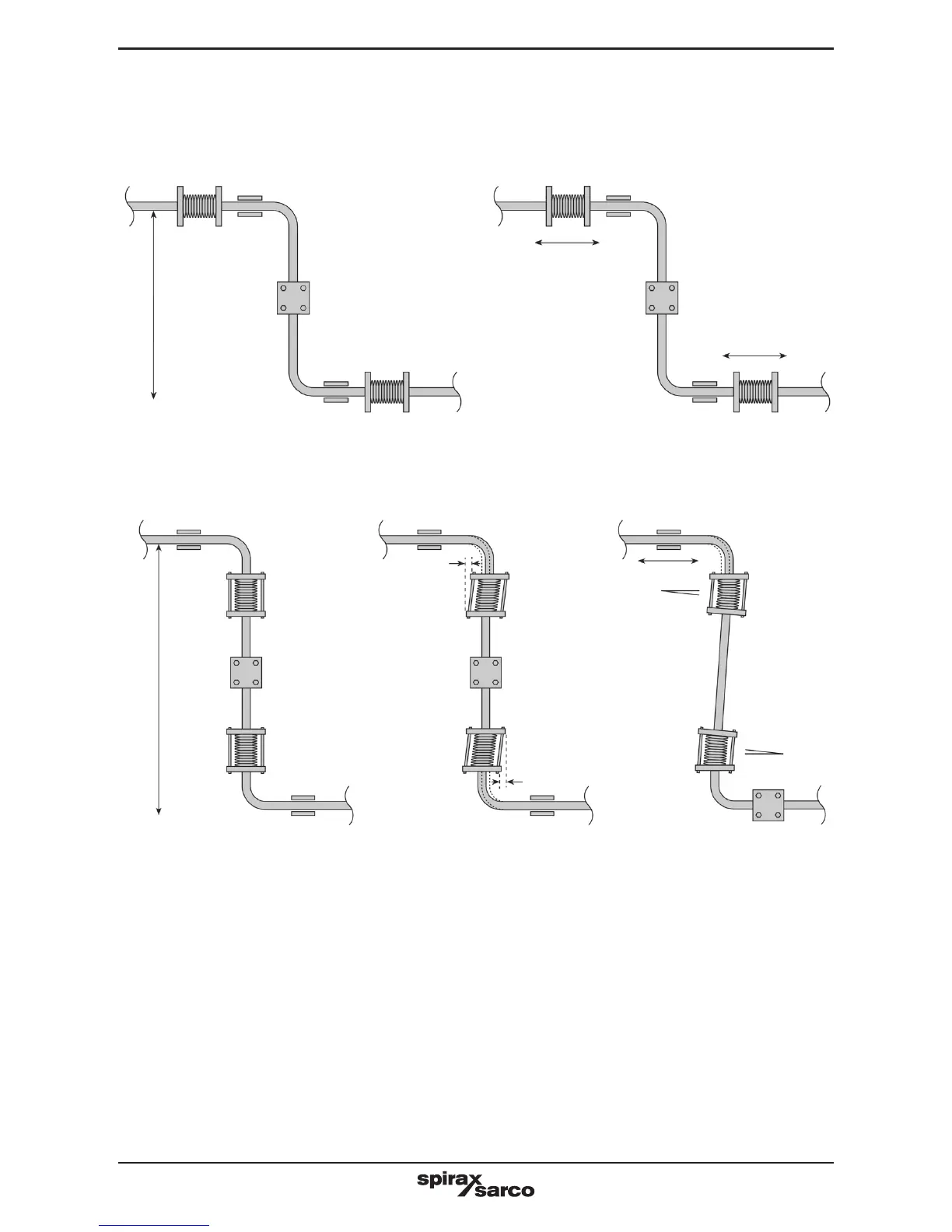

Examplesshowingtheuseofexpansionbellows.Itishighlyrecommendedthatexpertadviseis
sought from the bellows manufacturer.
Guides
Short distance
Medium
distance
Guides
Fixingpoint
Fixingpoint
Axialmovement
Limitrods
Limitrods
Guides
Small
lateral
movement
Small
lateral
movement
Large
lateral
movement
Large
lateral
movement
Axialmovement
Guides
