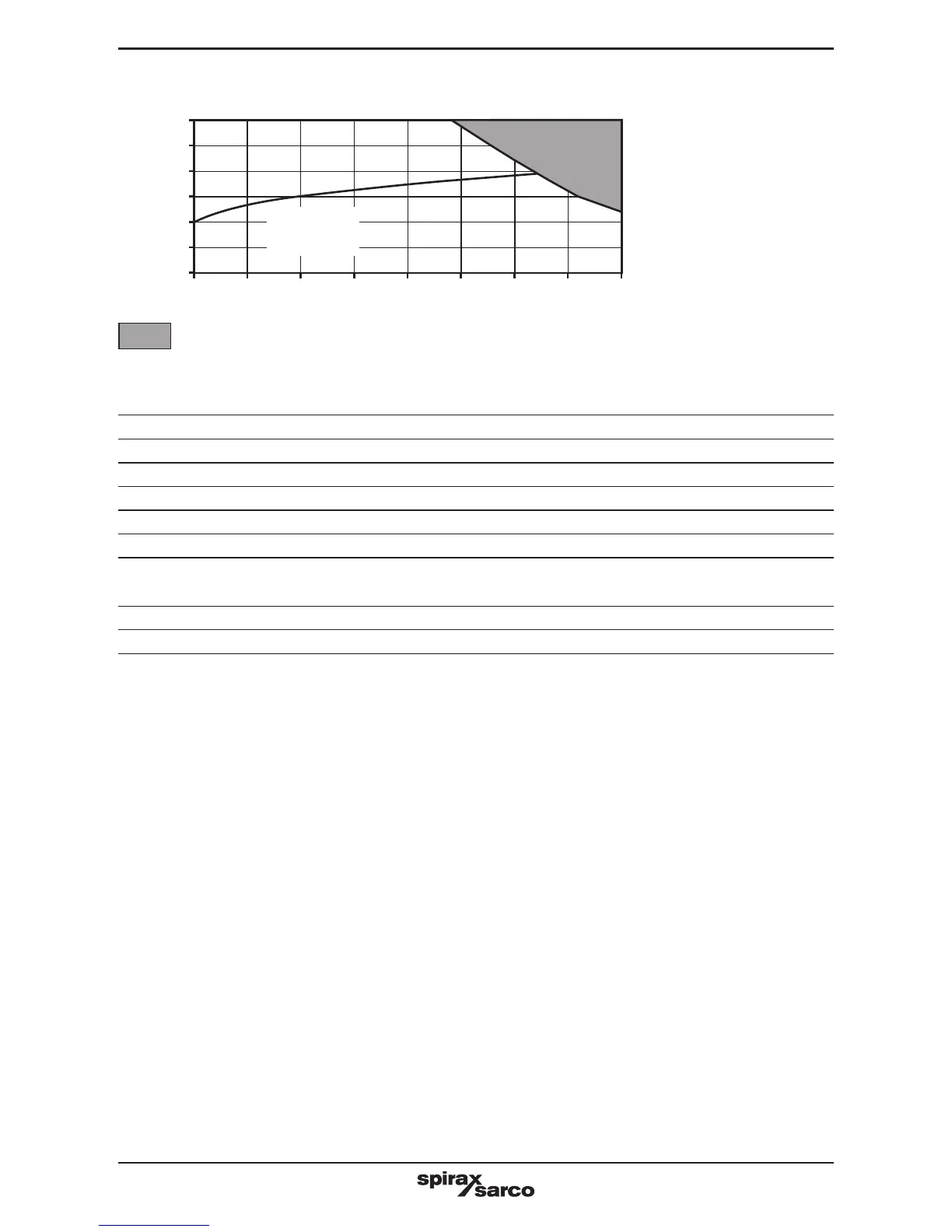

2.3 Pressure / temperature limits
For further details refer to the technical information sheet 3C.115.
The product must not be used in this region
Pressure bar
Temperature °C
0 2 4 6 14 16
50
100
150
200
250
Steam
saturation
curve
300
8 10 12
Body design conditions PN 16
PMA-Maximumallowablepressure @ 120°C 16 bar
TMA-Maximumallowabletemperature @ 9,6 bar 300°C
Minimum allowable temperature -10°C
PMO-Maximumoperatingpressure @ 195°C 12,9 bar
TMO-Maximumoperatingtemperature @ 9,6 bar 300°C
Minimumoperatingtemperature,dangeroffreezingconsidered
Note:Forlowertemperatures,contactSpiraxSarco
-10°C
DPMX-Maximumdi󰀨erentialpressurelimitatPMO(on-o󰀨mode)
Designedforamaximumcoldhydraulictestpressureof 24 bar
