Spirax Sarco DP17 User Manual

IM-P100-05 CTLS Issue 17
8
2.4 Sizes and pipe connections - DP17E
DN15LC (not available for type DP17G), DN15, DN20, DN25, DN32, DN40 and DN50.
Screwed BSP (BS 21 parallel) or NPT (DN15 to DN25 only).
Standard flanges:
DN15 - DN50 BS 4504 PN16 and PN25
DN25 - DN50 BS 10 Table H and ANSI 300
Available on request:
DN15 - DN50 JIS 10, JIS 16 and ANSI 150
DN15 - DN20 BS 10 Table F
DN15 ANSI 300

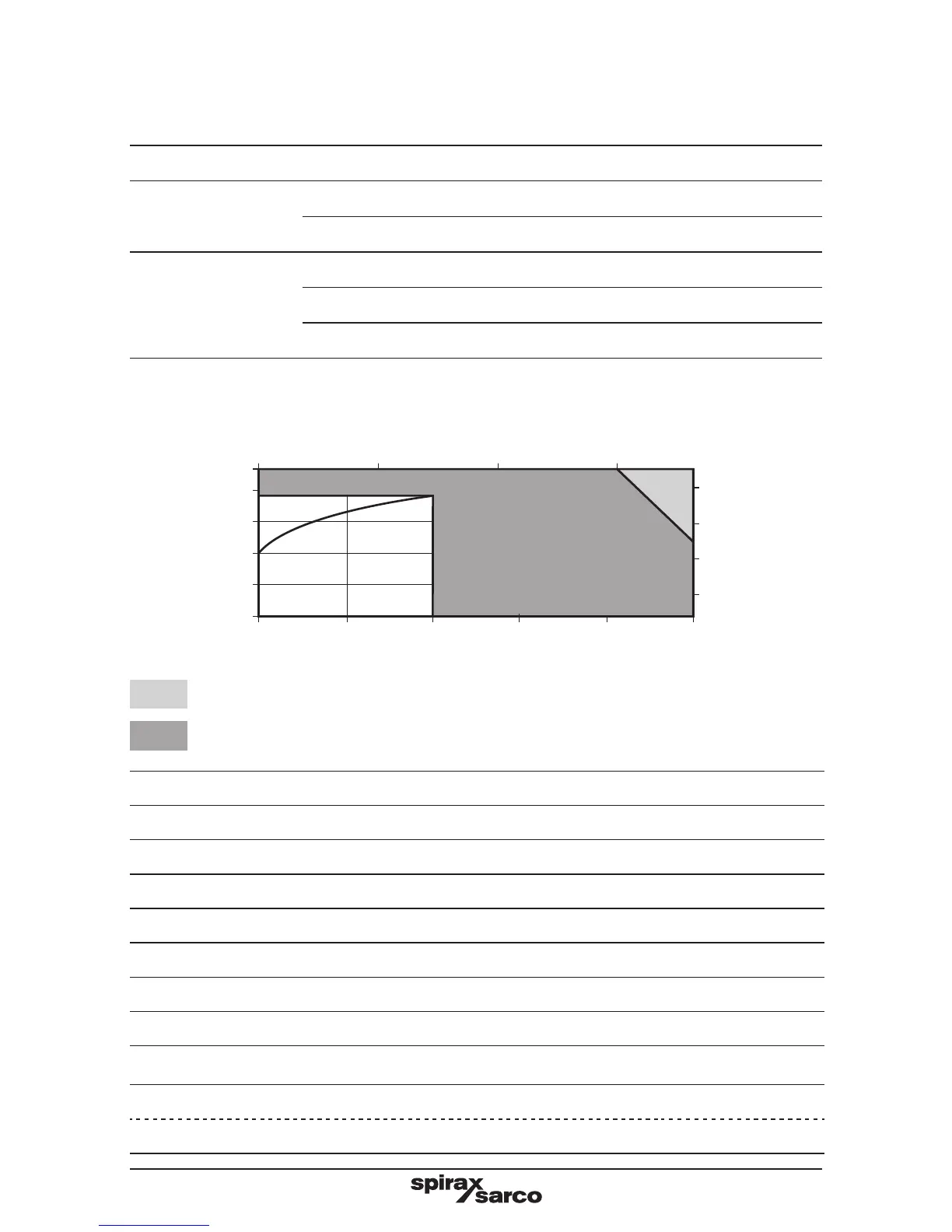

2.5 Pressure/temperature limits - DP17E
Pressure bar g
Temperature °C
Pressure psi g
Temperature °F
0
0
50
100
150
200
232
100
200
300
400
5 10 15 20 25
0 100 200 300
The product must not be used in this region.
The product should not be used in this region or beyond its operating range as
damage to the internals may occur.
Body design conditions PN25
PMA Maximum allowable pressure @ 120 °C (248 °F) 25 bar g (362.5 psi g)
TMA Maximum allowable temperature 232 °C (449.5 °F)
Minimum allowable temperature -10 °C (14 °F)
PMO Maximum operating pressure including saturated steam service 10 bar g (145 psi g)
TMO Maximum operating temperature 190 °C (248 °F)
Minimum operating temperature 0 °C (32 °F)
Note: For lower operating temperatures consult Spirax Sarco.
PMX
Maximum differential pressure is limited to the PMO
Designed for a maximum cold hydraulic test pressure of: 38 bar g (551 psi g)
Note: With internals fitted, test pressure must not exceed: 25 bar g (362.5 psi g)
