Spirax Sarco DP17 User Manual

IM-P100-05 CTLS Issue 17
7
0
0
50
100
150
200
100
200
300
400
232
5 10 15 20 25
0 100 200 300
Pressure bar g
Temperature °C
A
E
Steam
saturation
curve
C
F
F
B
D
Pressure psi g
Temperature °F

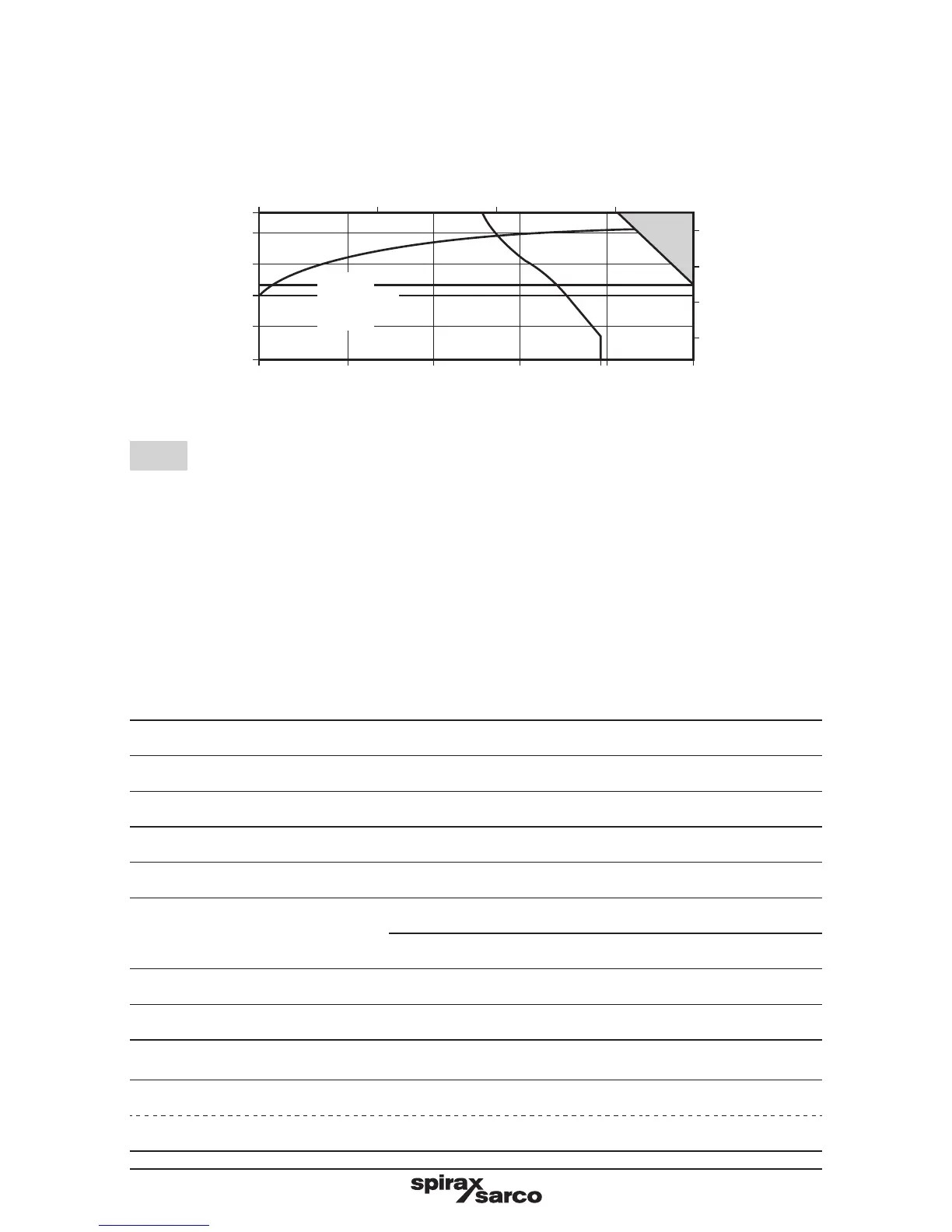

2.3 Pressure/temperature limits -
DP17, DP17G, DP17R, DP17Y and DP27G
The product must not be used in this region.
A-D-E Screwed and flanged BS 4504 PN25, ANSI 300, and BS 10 Table H.
A-B-C Flanged ANSI 150.
F-F The DP17G and DP27G are limited to 120 °C.
Note: DP17, DP17G and DP27G have a variable rate conical pressure adjustable spring
fitted providing a downstream pressure range of 0.2 - 17 bar g.
DP17Y has a pressure spring with a range of 0.2 - 3 bar g.
DP17R Maximum downstream reduced pressure 15 bar g. The control pressure
signal to the pilot diaphragm must be approximately 0.7 bar above the required
reduced downstream pressure.
Body design conditions PN25
PMA Maximum allowable pressure @ 120 °C (248 °F) 25 bar g (362.5 psi g)
TMA Maximum allowable temperature 232 °C (449.5 °F)
Minimum allowable temperature -10 °C (14 °F)
PMO Maximum operating pressure for saturated steam service 17 bar g (246.5 psi g)
TMO
Maximum operating
temperature
DP17, DP17Y and DP17R 232 °C (449.5 °F)
DP17G and DP27G 120 °C (248 °F)
Minimum operating temperature 0 °C (32 °F)
Note: For lower operating temperatures consult Spirax Sarco.
PMX
Maximum differential pressure is limited to the PMO
Designed for a maximum cold hydraulic test pressure of: 38 bar g (551 psi g)
Note: With internals fitted, test pressure must not exceed: 25 bar g (362.5 psi g)
