Spirent C1 - SPT-C1 WAVE-2 WiFi Connector Panel

Spirent C1 and C2 Installation Instructions
System Description
Spirent C1 and C2 Installation Instructions | 15
PN 71-008959 Rev A April 2020
The network data cables (customer supplied) connected to these ports must be as follows:
• Ethernet CAT-5 cable for the management port (Eth0)
• For test ports (1-4)
• Copper: RJ45 connector, Ethernet CAT-5e or better cable
SPT-C1 4 x 1GbE and 802.11 AC WAVE-2 WiFi (NIC-33/NIC-63 and
NIC-56/NIC-57/NIC-60)

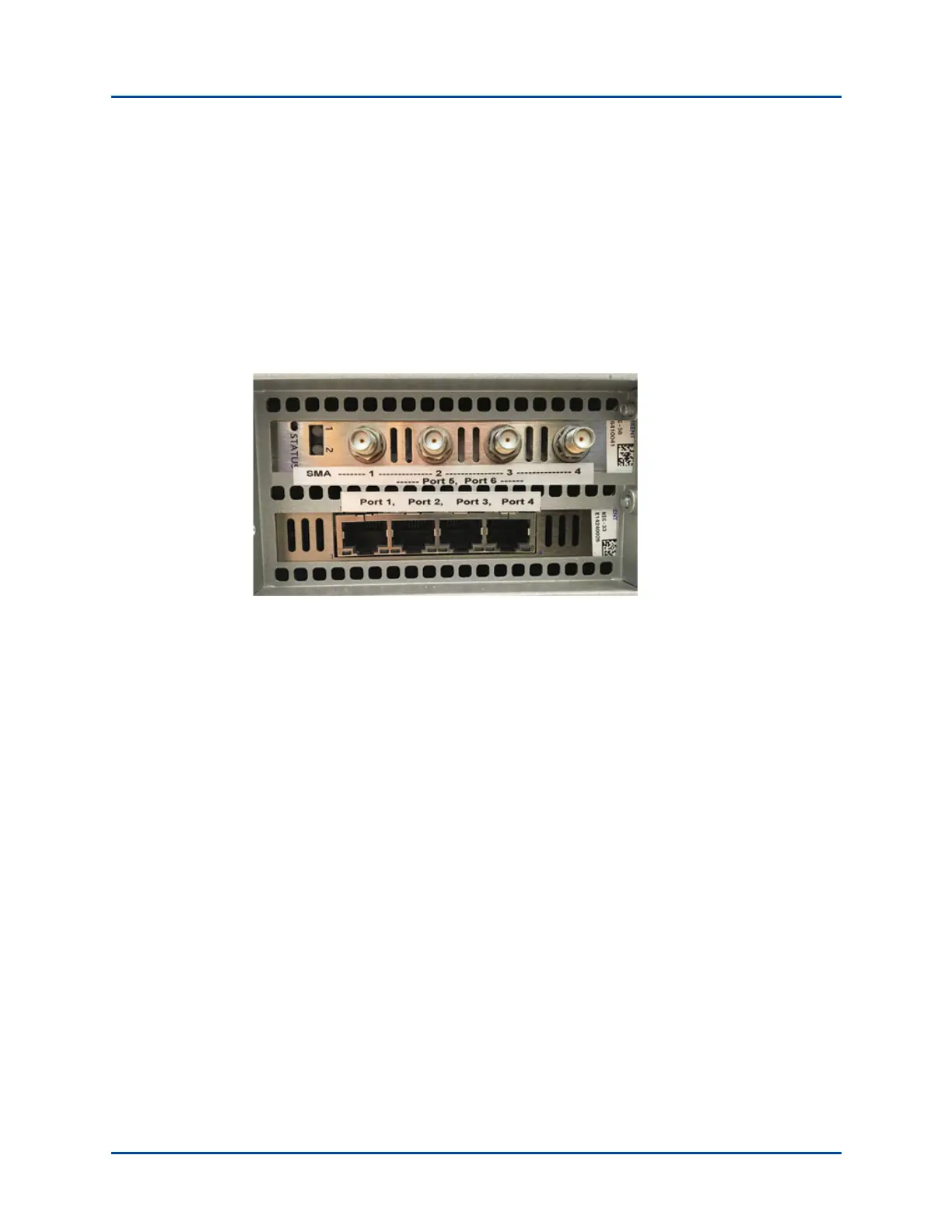

The connector panel is shown in Figure 9.
Figure 9. SPT-C1 4 x 1GbE and 802.11 AC WAVE-2 WiFi (NIC-33/NIC-63 and
NIC-56/NIC-57/NIC-60)
The network data cables (customer supplied) connected to these ports must be as follows:
• Ethernet CAT-5 cable for the management port (Eth0)
• For test ports (1-4)
• Copper: RJ45 connector, Ethernet CAT-5e or better cable
• For test ports (5-6)
• SMA connector, 50 OHM RF cable
• For test ports (7-8) on NIC-57 only
• SMA connector, 50 OHM RF cable
