24

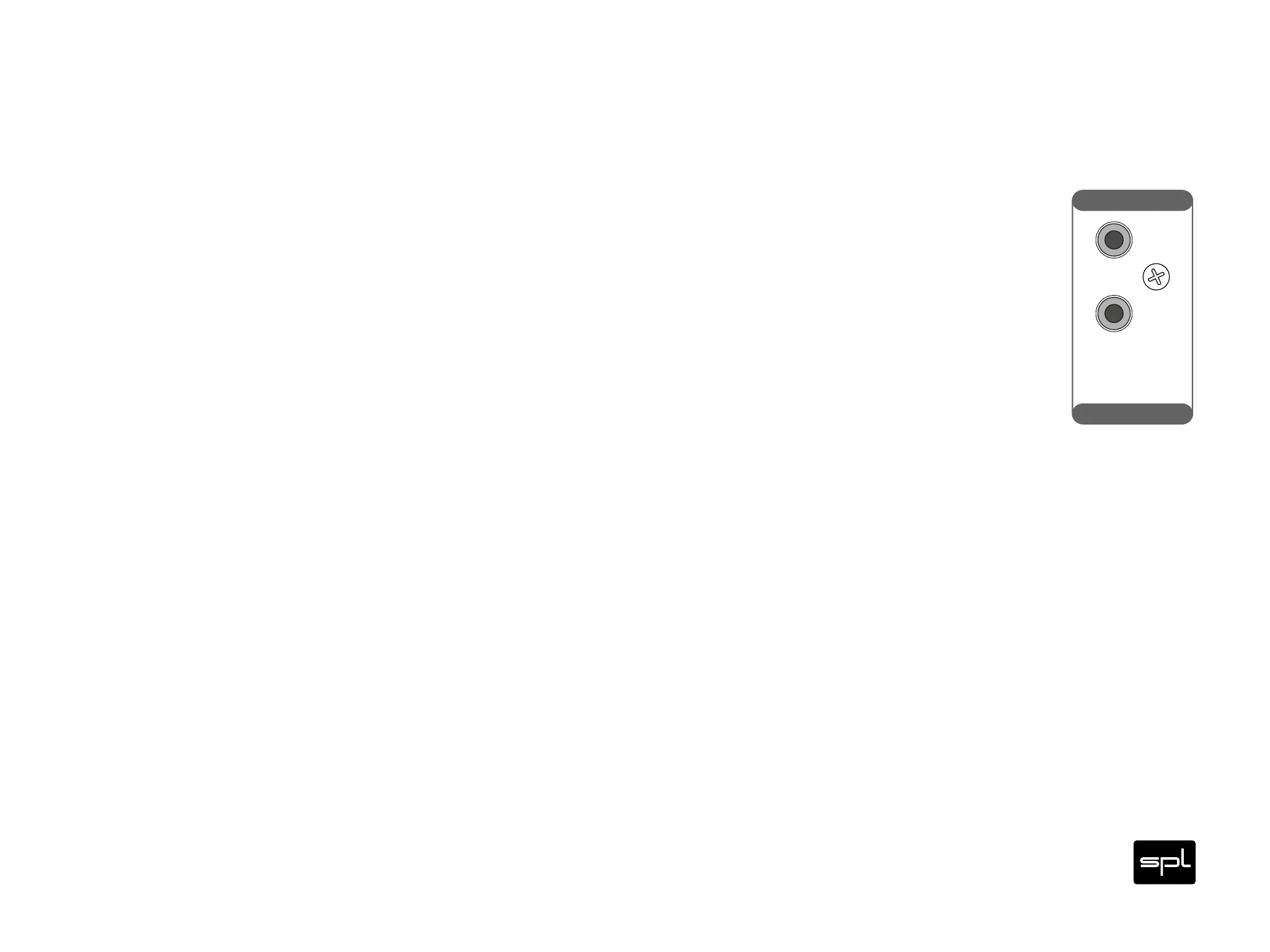

AMP CTL (Amplier Control)
If you own a SPL Performer s you can connect the AMP CTL () of the Phonitor x with a
mono mini jack cable to the AMP CTL of the Performer s to switch both units in and out of
standby together. Use a . mm mono mini jack cable.
The Phonitor x offers two outputs (A and B) in case you use two Performer s in bridge mode
or in a bi-wiring application.
Set the DIP switch on the bottom of the unit to ON to switch the Performer s into standby
when the output selection is set to Headphone (see ”Standby of connected Performer s
power amp when set to Headphone“ on page).
Phonitor x
Serial
Number
Made in Germany
~ 115V AC / ~230V AC, 50 Hz / 60 Hz, P max. 45 W
R
B
A
Connect to SPL
Power Amp(s) for
remote power on/off
AVIS: RISQUE DE CHOC ÉLECTRIQUE • NE PAS OUVRIR
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
Fuses:
Voltage Selection:
230V AC: T 500 mA L 250 V
115V AC: T 1 A L 250 V
1. Remove Fuse Holder
2. Exchange Fuses
3. Flip Over 4. Reinstall
XLRs: balanced, Pin 2 = Hot (+)
For unbalanced operation
bridge Pin 3 to GND.
RCAs: Unbalanced, Tip = Hot (+)
WIRING
ON BOTTOM SIDE:
DIP SWITCHES
1 ON: HP Out +22dB
2 ON: HP Out +12dB
3 ON: VU 0 = +10dB
4 ON:
XLR Direct Out
5 ON: RCA Direct Out
6 ON: AMP CTL power off
when listening to
SPEAKER OUTPUTS
RLRL
ANALOG SOURCES DIGITAL SOURCES
AMP CTL
SPEAKER OUTPUTS
L
R
ANALOG SOURCES DIGITAL SOURCES
LR
USBOPTICAL
AMP CTL
