Recessed, Closet And Alcove Installation
he Machine may be installed in a
cessed area, closet or alcove.
The installation spacing is in inches and
is the minimum acceptable.
Additional spacing should be considered
for easy installation, servicing and com-
pliance with local codes and ordinances.
Closet installation must be exhausted.
Other installations must use the mini-
mum dimensions indicated.
To Reduce The Risk Of Fire
MUST BE EXHAUSTED OUTDOOR.

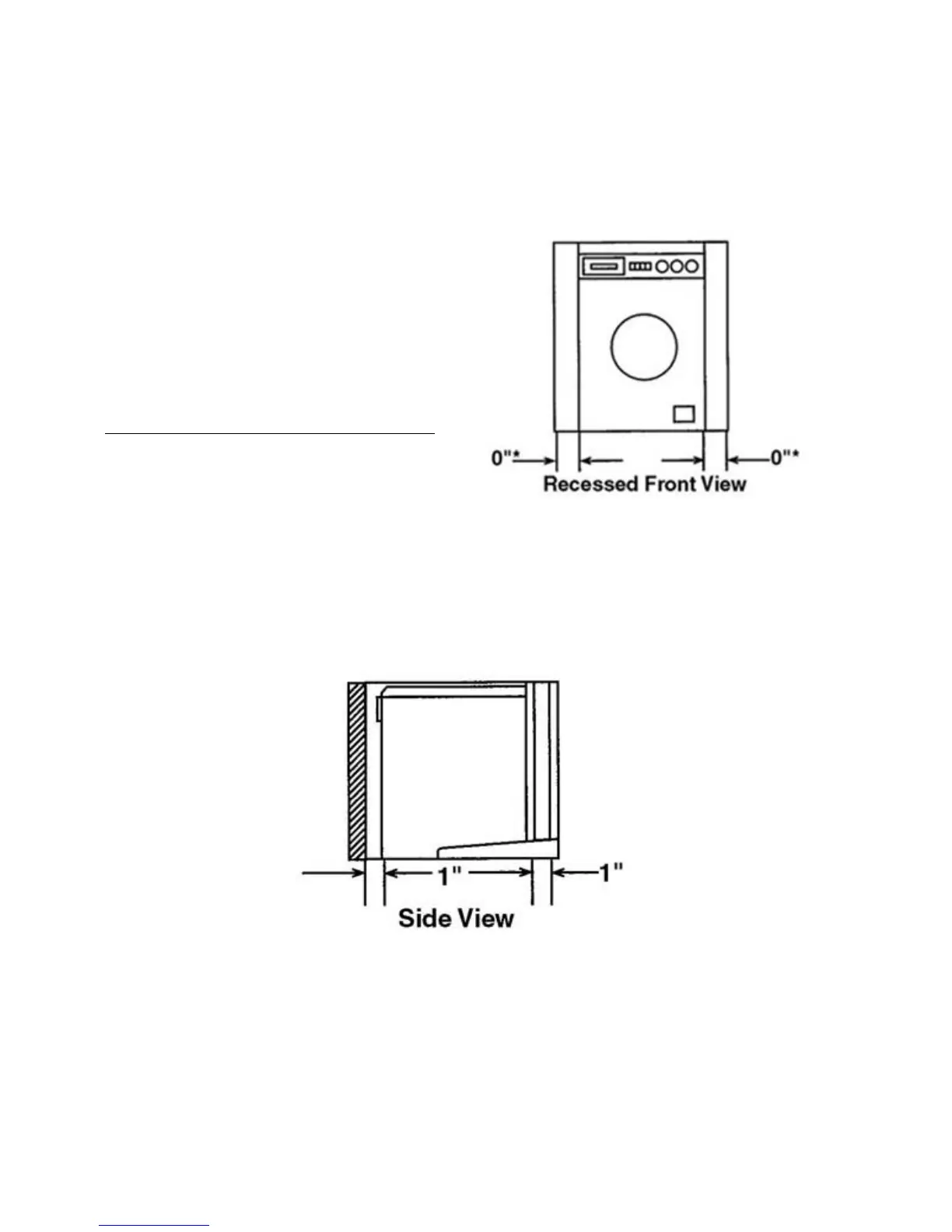

Minimum Installation Spacing
* Additional clearances for wall, door and floor moldings may be required.
** Additional space is needed when an external exhaust elbow is used.
