General settings and batteries
”Version” on the main menu displays the instrument name and its Eprom version
number.
Select ”Settings” on the main menu to make the general adjustments and to
check the battery voltage.
Contrast: Hold down the LEFT or RIGHT key to change the display contrast.
Off: Use the UP/DOWN keys to set the time for automatic switch off to between
min. 30 seconds and max. 30 minutes. For manual off only: press the LEFT and
RIGHT keys simultaneously. The screen will show NOT AUTO and the instrument
will remain on until shut off from the key pad. This setting is not saved, so the
instrument will be on automatic off when it is next started.
Light: With the UP/DOWN keys , the display back light can be set to ON, AUTO,
or OFF. In AUTO mode, the light is controlled by the light sensor. OFF saves
battery power.

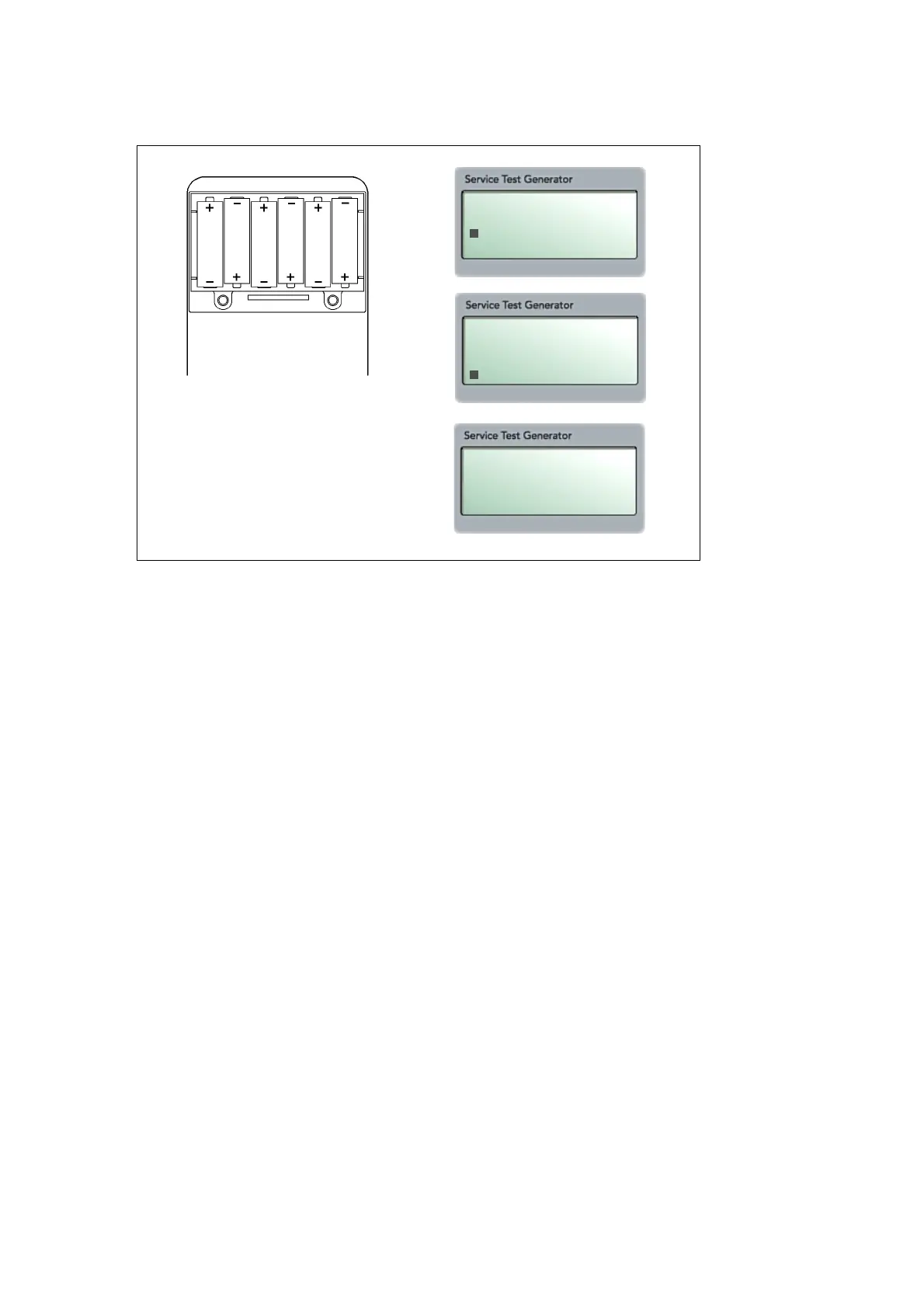

Battery test: The STG-02 is powered by six 1.5 V LR6 alkaline cells. The battery
test the present voltage. A low battery warning is given at 5.3 V.
The battery compartment is located at the back and fastened by two screws. Pull
off the protective cover to reach the screws.
Remove the batteries before longtime storing the instrument.
Shock Pulse
Vibration
Settings
Version
Contrast: < -- >
Off: 2 min 00 s
Light: OFF
Battery Test
Battery Test
(Min 5.3 V)
8.6 V
6 x 1.5 V LR6
alkaline cells
Remove before
longtime storage
