Double Seat Valve
DELTA DE3
Instruction manual: UK - rev. 7
APV

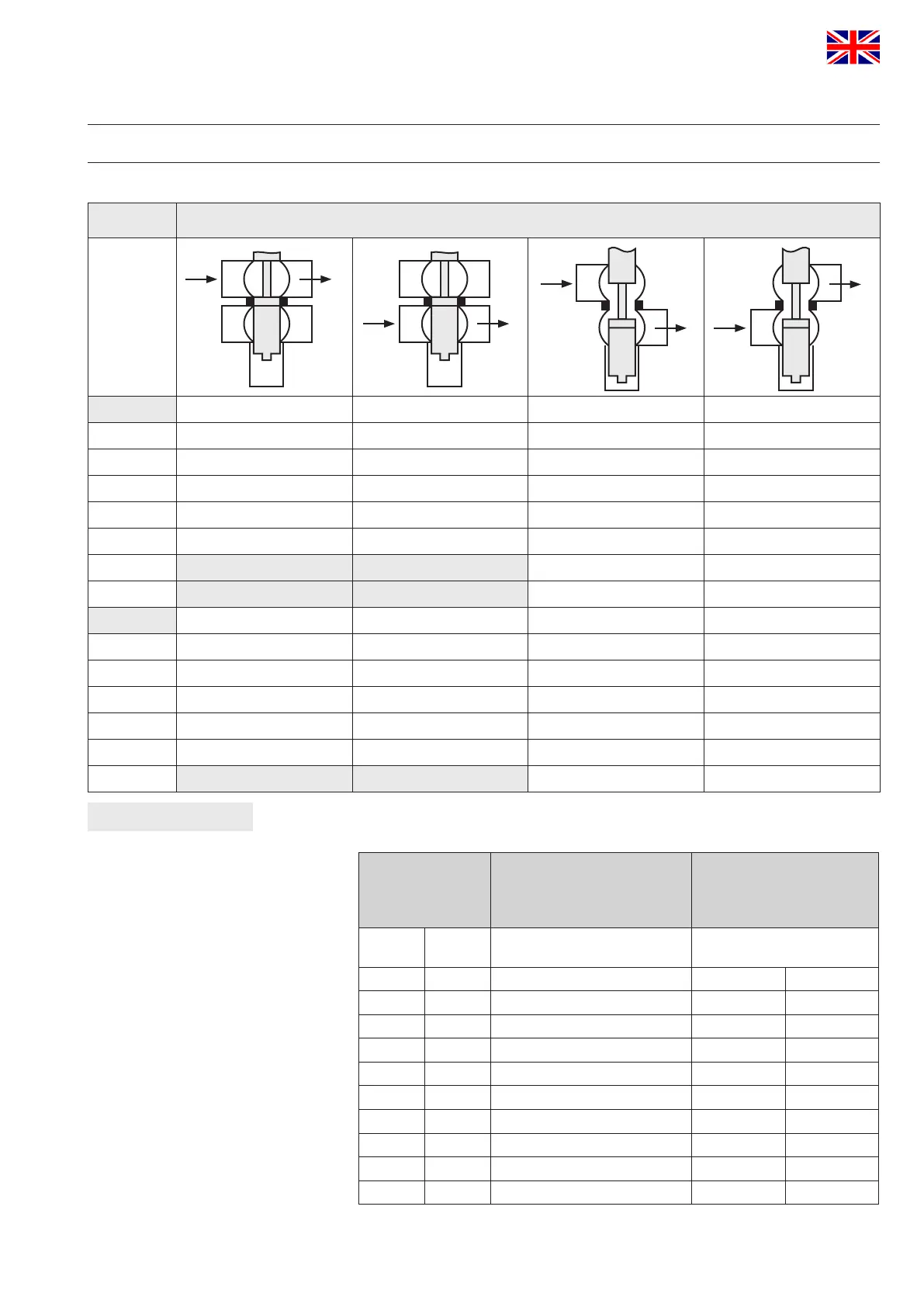

9. Technical Data
9.4. Air consumption
actuator at
6 bar pneum. pressure
Closing times
in sec.
in NL / stroke hose length
DN Inch 1 m 10 m
25 1" 0,9 1,5 2,5
40 1,5" 1,1 1,5 2,5
50 2" 1,3 1,5 2,5
65 2,5" 1,3 1,5 2,5
3" 1,3 1,5 2,5
80 2,3 3,0 4,0
100 4" 2,3 3,0 4,0
125 4,0 5,0 6,0
150 6" 6,4 8,0 9,0
9.3. Kvs - values in m³/ h
DN
40 57 46 23 25
50 120 95 42 45
65 219 148 69 78
80 296 200 120 130
100 505 320 164 170
125 800* 500* 300 330
150 1200* 700* 360 380
Inch
1,5" 47 70 21 24
2" 100 73 43 46
2,5" 170 122 59 66
3" 213 160 71 80
4" 490 294 150 160
6" 1150* 670* 340 360
* no measuring value
