Double Seat Valve
DELTA DE3
Instruction manual: UK - rev. 7
APV
plastic plug
flush connection DE3
safety spring
The construction kit for the shaft flushing
consists of the following components:
supply
cleaning liquid
free discharge
T - union
IN
OUT
DN 40 - 150, 1,5" - 6"
2 x ushing connection DE3
ref.-No.: 000 16-38-070/93
H201674
DN 40 - 150, 1,5" - 6"
2 x safety spring DE3
ref.-No.: 000 67-03-015/13
H171289
DN 40 - 100, 1,5" - 4"
1 x T - union 8-1/8"-8
ref.-No.: 000 08-63-371/93
H176993
DN 125 - 150, 6"
1 x T - union 8-1/4"-8
ref.-No.: 000 08-63-372/93
H312957

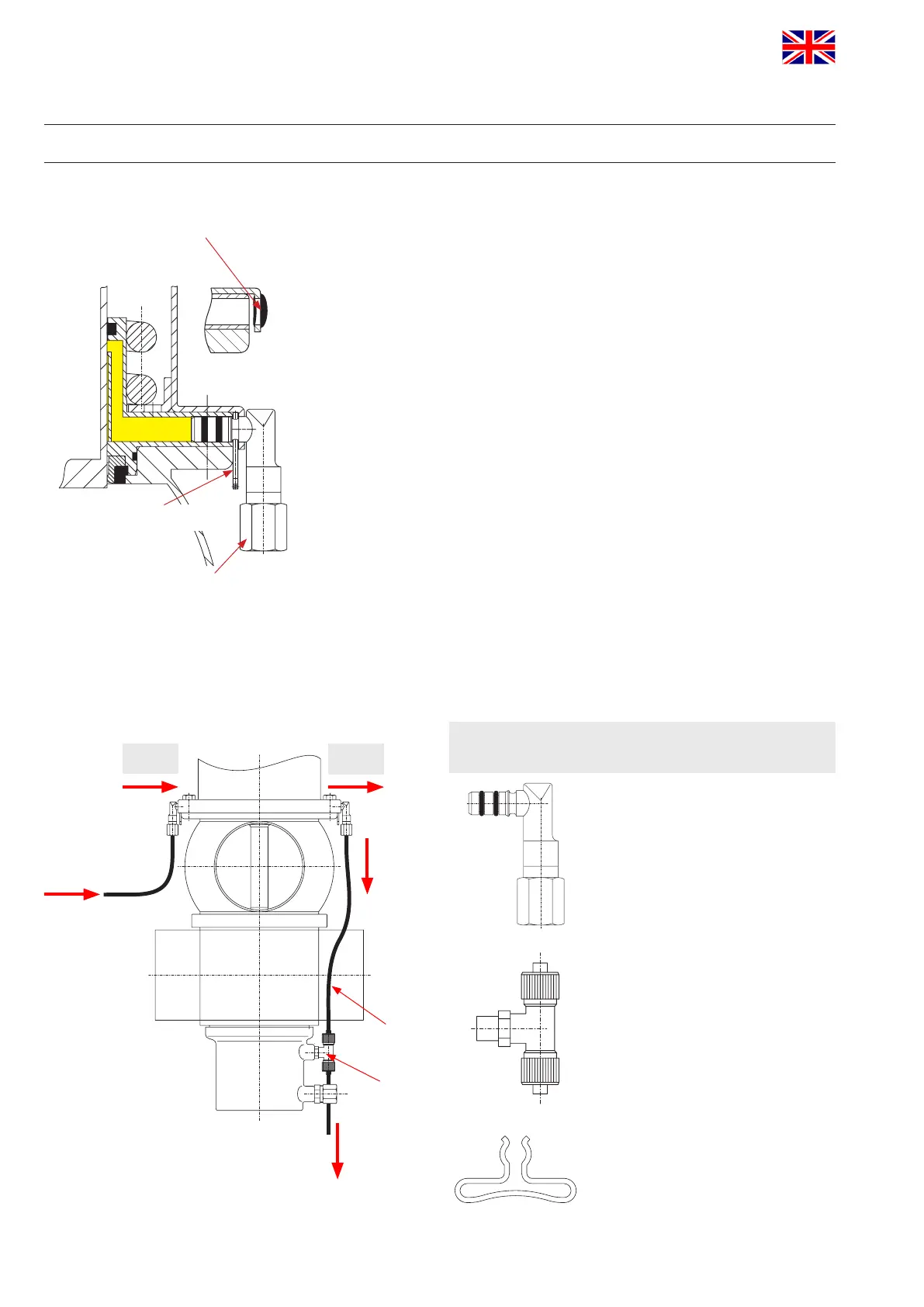

14. Special Accessory - Shaft ushing
The valve is prepared for the shaft ushing.
The required construction kit is available as accessory.
Construction kit for assembly of shaft ushing, complete
DN40 - 100, 1,5" - 4" H201675
DN125 - 150, 6" H312958
14.1. Assembly of shaft flushing
- Remove the plastic plug.
- Insert the ush connections in the shaft bearing and arrest them
with the locking spring.
Bolt the supply hose for cleaning liquids to the ush connection.
Identication: IN
Bolt the discharge hose for cleaning liquids to the ush connection
Identication: OUT
- Screw the T-union into the drain pipe and hose it.
- Check the passage of the cleaning liquid.
hose
8x1 mm
