Double seal valve
DELTA SD4-ATEX
Instruction Manual: UK - rev. 0
APV
3. Identicationofvalves,
Temperatureclasses,Responsibilities

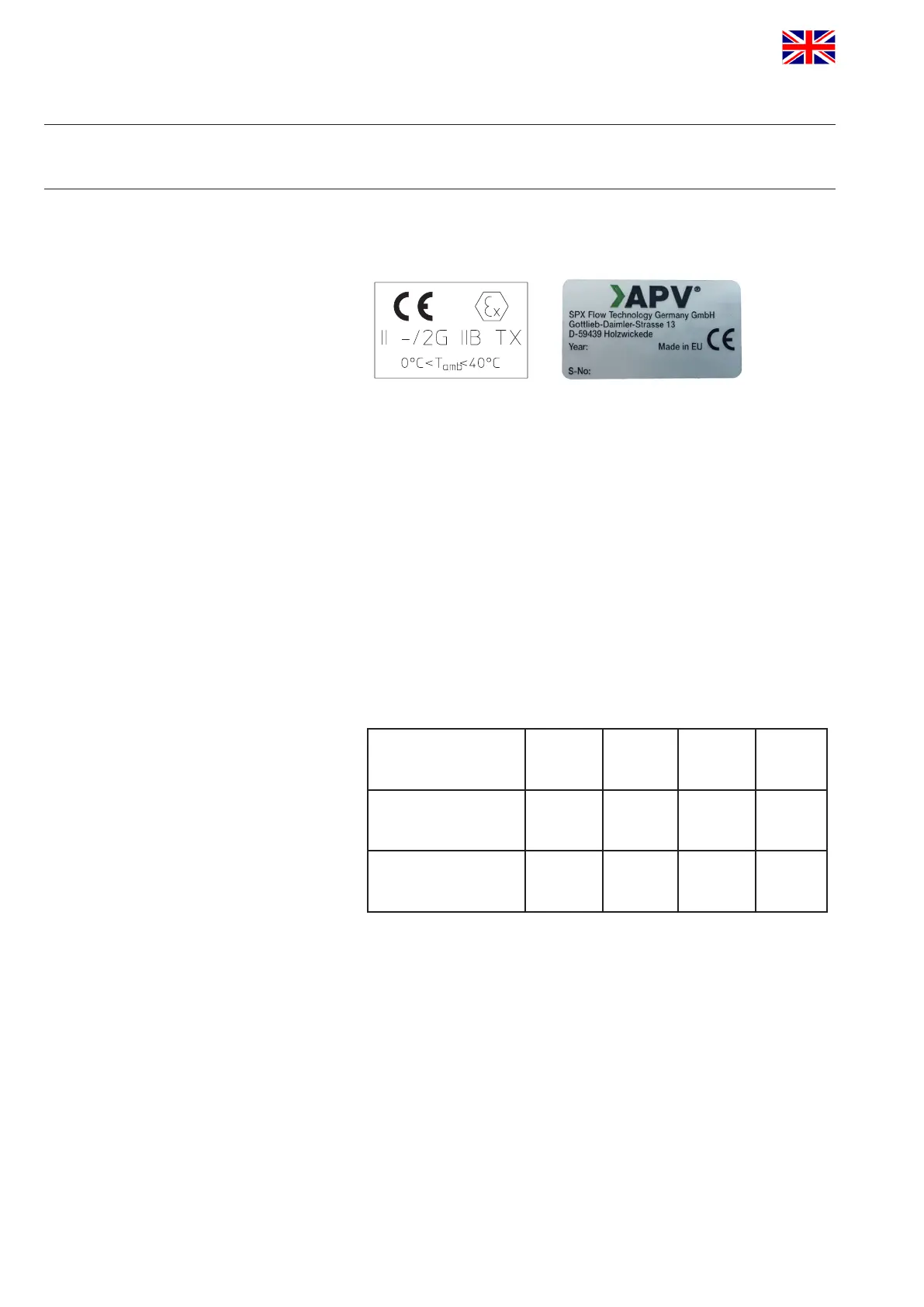

3.1. IdenticationofvalvesforuseinATEXenvironment
ATEXidentication:
- Equipment group II
- Equipment category outside 2G
inside no equipment
- Explosion subcategroy IIB
Ambient temperature for the operation
0°C≤Tamb≤40°C
- Temperature classes TX (according to table 3.2)
3.2. Temperatureclassesandpermissibletemperatures
Media temperature ≤75°C ≤95°C ≤130°C
up to
140 °C
= Tmax.
Saftety addition + 5 °C + 5 °C + 5 °C + 5 °C
Temperature class T6 T5 T4 T3
Under standard operating conditions the highest surface
temperature will be comparably as high as the temperature of the
medium plus a safety addition for local temperature increases. The
valve must be completely free to the environment in order to provide
for sufficient heat release.
All data (temperature classes) refer to an ambient temperature
of 0°C to 40°C. If the ambient temperature is above 40°C, the
temperature difference must be adjusted. In all cases, contact your
responsible SPX FLOW representative!
