11
APV_SD4_ATEX_UK-0_122018.indd
UK
Double seal valve
DELTA SD4-ATEX
Instruction Manual: UK - rev. 0
APV
∅Di
Ø K
FG
F A
L
200
Dimensions in mm
Weight
in kg
DN A ∅Di F G ∅ K L
25 337 26 50 126 86 387 5
40 343 38 67 129 86 410 5
50 380 50 72 133 126 452 7
65 388 66 85 145 126 473 7
80 440 81 98 153 189 538 13
100 450 100 111 162 189 561 15
Inch
1" 335 22,6 50 126 86 385 5
1,5" 341 34,9 67 129 86 408 5
2" 379 47,6 72 133 126 451 7
2,5" 385 60,3 85 142 126 470 7
3" 436 72,9 90 148 189 526 13
4" 448 97,6 111 162 189 559 15

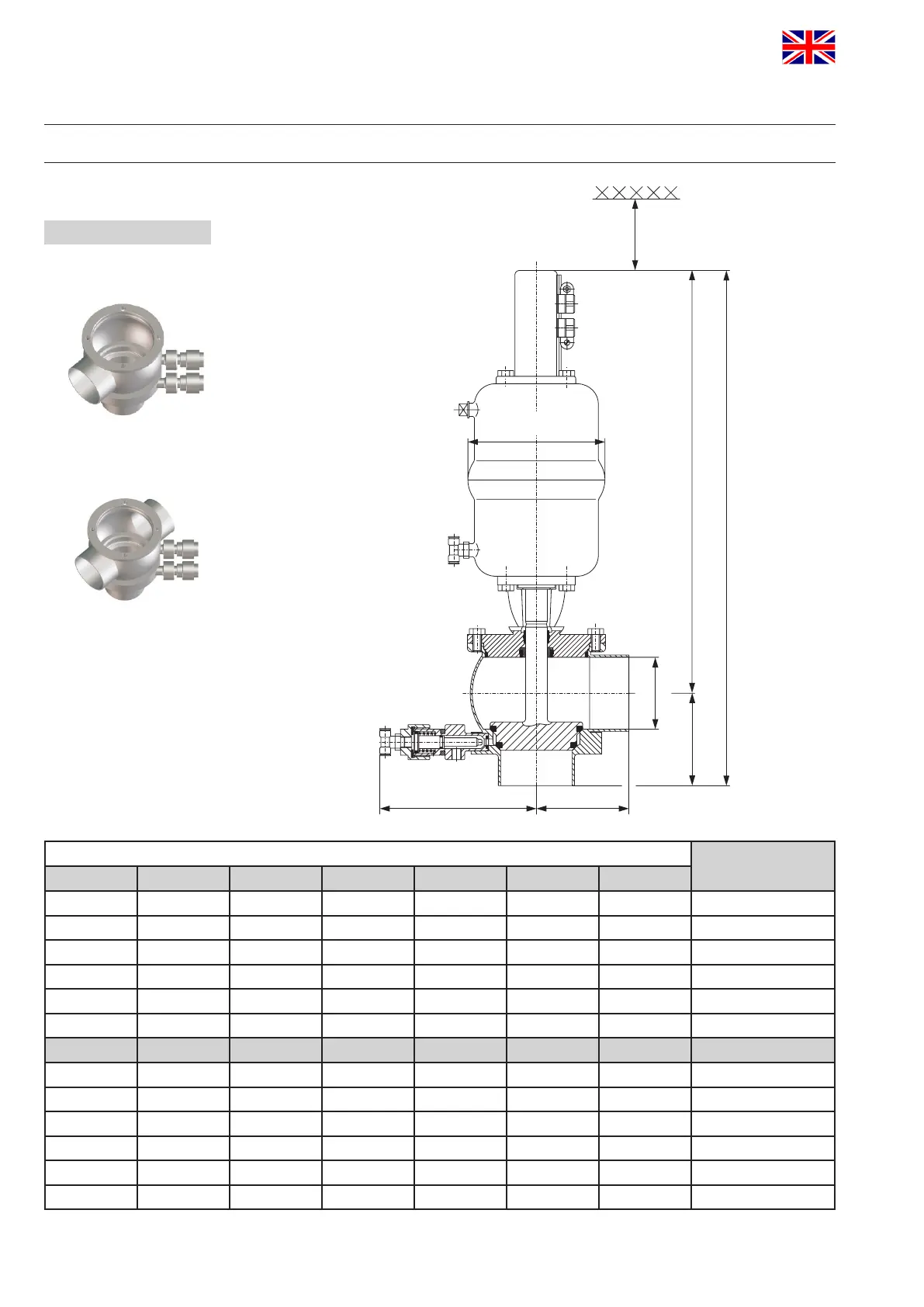

8. Dimensions/Weights
housingvariants
SD42
SD41
