Double seal valve
DELTA SD4-ATEX
Instruction Manual: UK - rev. 0
APV
15. InstallationofSeatseal
15.2.  Manualinstallationofseatseal(pos.12)
1. Before assembly, the seat seal must be provided with a thin layer of grease.
The receiving groove for the seat seal must not be greased.
2. Clamp the valve shaft in a vice.
The valve shaft must not be damaged.
Use protective braces.

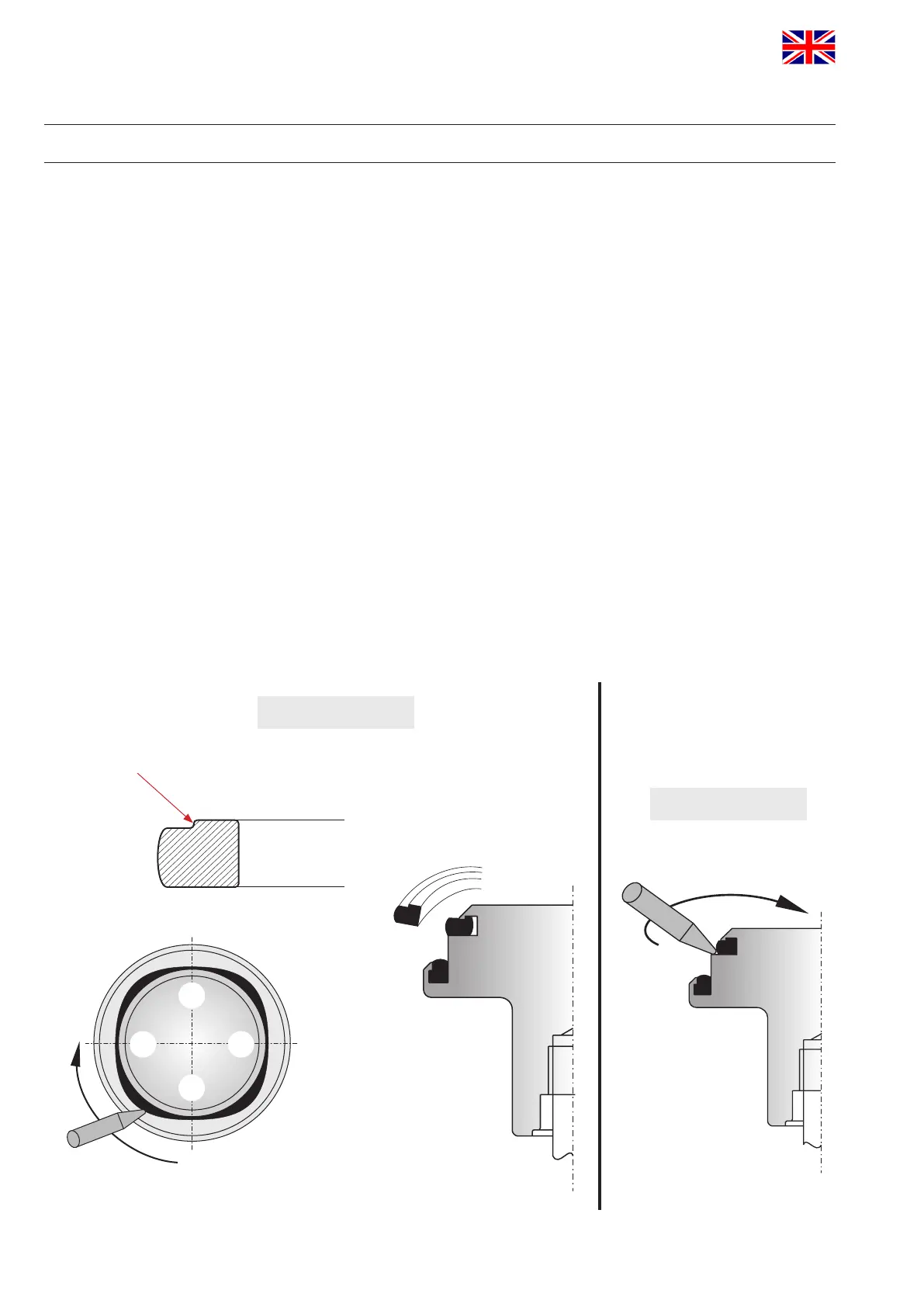

3. Press the slightly greased seal at four spots with the wide side to the front into the receiving groove
(seesketch1).
4. Use the assembly tool (or screwdriver with rounded edges) to press the seal at four opposite spots
1-2,3-4into the groove (seesketch1).
5. Pressthesealstepbystepintothegroove.Workalternatelyatoppositespots.Seetoanevent
of the seat seal.
 6. At the end, place the assembly tool between the seal shoulder and the groove wall. Work all around
the circumferences of the groove. The groove bottom is vented and the seal shoulders are locked in
place by this process (seesketch2).
4
1
32
sealshoulder
sealprofile
Sketch1
Sketch2
